74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) OIL PAN/LUBRICATION ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

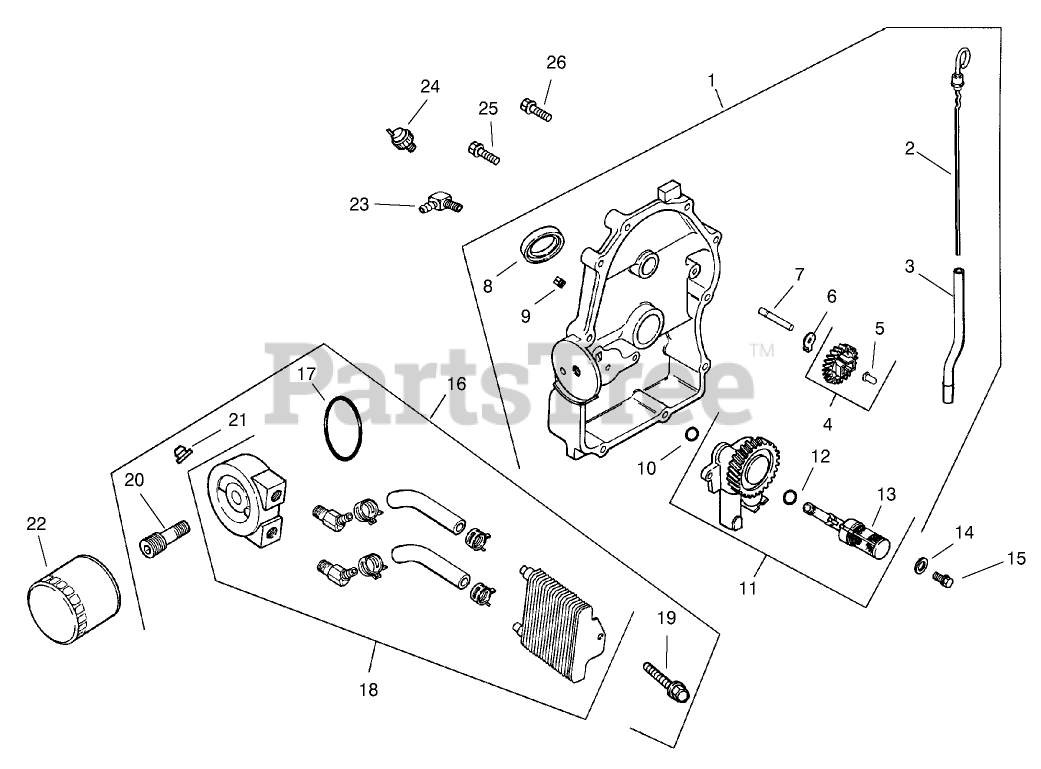

OIL PAN/LUBRICATION ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

  • Title
1

Kohler 24 009 83

Closure Plate ASM (Incl. Ref. #2-12)
(Superseded to 24 009 83-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$406.99

$

Usually ships in 2-5 days

0

2

2403806

Dipstick

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

2412308

Tube-Dipstick

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 24 043 12

Kit-Gear, Governor (Incl. Ref. #5)
(Superseded to 24 043 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$68.99

$

In Stock, Qty 9

0

5

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 19

0

6

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

7

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 9

0

8

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$10.99

$

In Stock, Qty 20+

0

9

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 6

0

11

Kohler 24 393 10

Oil Pump ASM(Incl. Ref. #12, 13)
(Superseded to 24 393 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 153 01

O-Ring
(Superseded to 24 153 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

13

Kohler 24 381 04

Pick Up-Oil
(Superseded to 24 381 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 4 left!

0

14

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

15

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 13

0

16

Kohler 54 755 14

Kit-Cooler, Oil (Incl. Ref. #17-21)
(Superseded to 54 755 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$308.99

$

Usually ships in 2-5 days

0

17

Toro 24 253 17

O-Ring

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

18

Kohler 24 594 15

Cooler-Oil
(Superseded to 24 594 36-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$220.99

$

Usually ships in 2-5 days

0

19

2408612

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

20

Kohler 24 136 05

Nipple, oil filter
(Superseded to 24 136 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 5

0

21

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

22

5205002

Filter-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, only 1 left!

0

24

Kohler 24 099 03

Switch-Pressure
(Superseded to 24 099 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$34.99

$

In Stock, only 2 left!

0

25

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

26

Kohler 24 086 17

Screw
(Superseded to 24 086 17-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

2411325

Decal, oil cooler

Note: Not illustrated

$

$

Not available

2411325

Decal, oil cooler

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
