74263 (Z 560) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270002000) (2007) MUFFLER AND GUARD ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

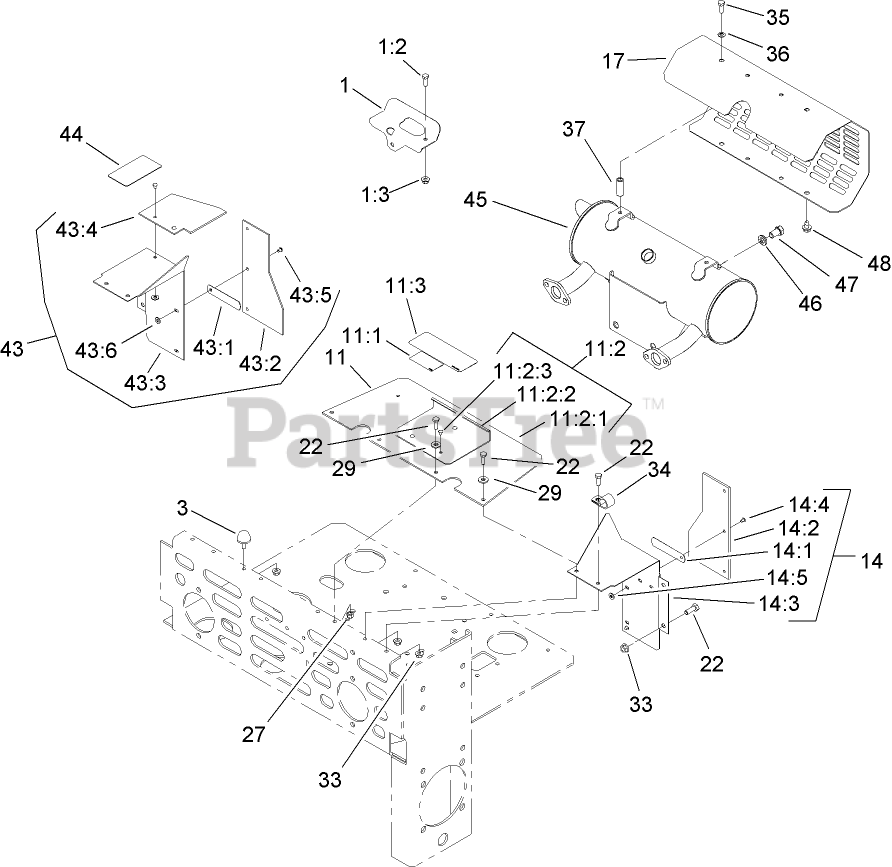

MUFFLER AND GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 103-3535

Cable Heat Shield Kit

$94.99

$

Usually ships in 3-6 days

0

1:2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

1:3

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 19

0

11

Toro 1-644276

SHIELD ASM

$102.99

$

In Stock, only 1 left!

0

11:1

Toro 1-633462

DECAL-IMPORTANT

$5.49

$

In Stock, only 4 left!

0

11:2

Toro 1-634308

SHIELD AND LIFT ASM

$84.99

$

Usually ships in 3-6 days

0

11:2:1

Toro 103-1308

SHIELD-ENGINE

$29.99

$

In Stock, only 1 left!

0

11:2:2

Toro 1-633300-03

LIFT-SHIELD

$14.99

$

Usually ships in 3-6 days

0

11:2:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

11:3

Toro 103-5881

DECAL-DEVICES, ROTATING

$6.49

$

In Stock, Qty 10

0

14

Toro 1-634796

LH SHIELD ASM

$

$

Not available

14:1

Toro 1-523285

CLIP-BAFFLE, REAR

$5.49

$

Usually ships in 3-6 days

0

14:2

Toro 1-633301

SHIELD-ENGINE

$15.99

$

Usually ships in 3-6 days

0

14:3

Toro 1-633795-03

BAFFLE-ENGINE SHIELD, LH

$

$

Not available

14:4

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

14:5

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

17

Toro 1-643313-03

GUARD-MUFFLER

$100.99

$

In Stock, only 3 left!

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Toro 1-809108

SCREW-HWH

$6.49

$

In Stock, Qty 5

0

36

Toro 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

37

Toro 1-323236

SPACER

$7.99

$

Usually ships in 3-6 days

0

43

Toro 1-644316

RH SHIELD ASM

$

$

Not available

43:1

Toro 1-523285

CLIP-BAFFLE, REAR

$5.49

$

Usually ships in 3-6 days

0

43:2

Toro 1-633301

SHIELD-ENGINE

$15.99

$

Usually ships in 3-6 days

0

43:3

Toro 1-633794-03

SHIELD-RH

$

$

Not available

43:4

Toro 1-643315

BAFFLE-COOLER, ENGINE

$13.99

$

Usually ships in 3-6 days

0

43:5

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 5

0

43:6

Toro 3256-63

WASHER-FLAT

$1.49

$

In Stock, only 2 left!

0

44

Toro 1-643339

DECAL-ROUTING, BELT

$5.49

$

Usually ships in 3-6 days

0

45

Toro 103-7482

MUFFLER

$302.99

$

Usually ships in 3-6 days

0

46

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 324-2

SCREW-HH

$4.99

$

In Stock, Qty 5

0

48

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0
