Toro 74266 (Z 580-D) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) HYDRAULIC TANK, PUMP AND MOTOR ASSEMBLY Parts Lookup with Diagrams

1

Toro 1-633605

FITTING-HYD, 90 DEG

$47.99

$

In Stock, only 2 left!

1:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

1:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

2

Toro 108-5323

FITTING-ELBOW-90

$97.99

$

Usually ships in 3-6 days

2:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

2:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

3

Toro 108-5315

HYDRAULIC TANK ASM

$510.99

$

Usually ships in 3-6 days

3:1

TANK-HYDRAULIC

Note: Not serviced separately

$

Not available 

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

3:1:2

Toro 103-1949

GASKET-CAP

$6.49

$

In Stock, only 4 left!

3:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 16

4

Toro 108-5352-03

BRACKET-TANK, HYDRAULIC

$93.99

$

Usually ships in 3-6 days

6

Toro 110-6242

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

8

Toro 107-3462-03

BRACKET-PUMP, FRONT

$27.99

$

Usually ships in 3-6 days

9

Toro 107-9885

TANDEM PUMP ASM

$4597.99

$

Usually ships in 3-6 days

10

Toro 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

12

Toro 114-8168

COOLER-OIL, HYDRO

$348.99

$

Usually ships in 3-6 days

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

16

Toro 108-5367-03

PLATE-SHIELD, PUMP

$22.99

$

Usually ships in 3-6 days

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

18

Toro 103-2153

FITTING-90 DEG

$47.99

$

In Stock, only 1 left!

18:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

18:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

19

Toro 109-6449

FITTING-ELBOW, 90

$31.99

$

Usually ships in 3-6 days

19:1

Toro 1-603921

O-Ring

(Superseded to 237-42) 

$2.99

$

In Stock, Qty 20+

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

22

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

23

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, Qty 5

24

Toro 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

27

Toro 112-8357

HYD MOTOR ASM (CCW)

$1411.99

$

Usually ships in 3-6 days

27:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

27:2

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 8

27:3

Toro 109-5966

WHEEL MOTOR SEAL KIT

(Superseded to 126-7279) 

Note: Not illustrated

$340.99

$

Usually ships in 3-6 days

28

Toro 112-8358

HYD MOTOR ASM (CW)

$1334.99

$

Usually ships in 3-6 days

28:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

28:2

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 8

28:3

Toro 109-5966

WHEEL MOTOR SEAL KIT

(Superseded to 126-7279) 

Note: Not illustrated

$340.99

$

Usually ships in 3-6 days

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

30

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 10

30:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

30:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

31

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

32

Toro 108-5316

FITTING-ELBOW, 90 DEG

$46.99

$

Usually ships in 3-6 days

32:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

33

Toro 103-2104

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

34

Toro 1-523221

FITTING-HYD, 45 DEG

$47.99

$

Usually ships in 3-6 days

34:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

34:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

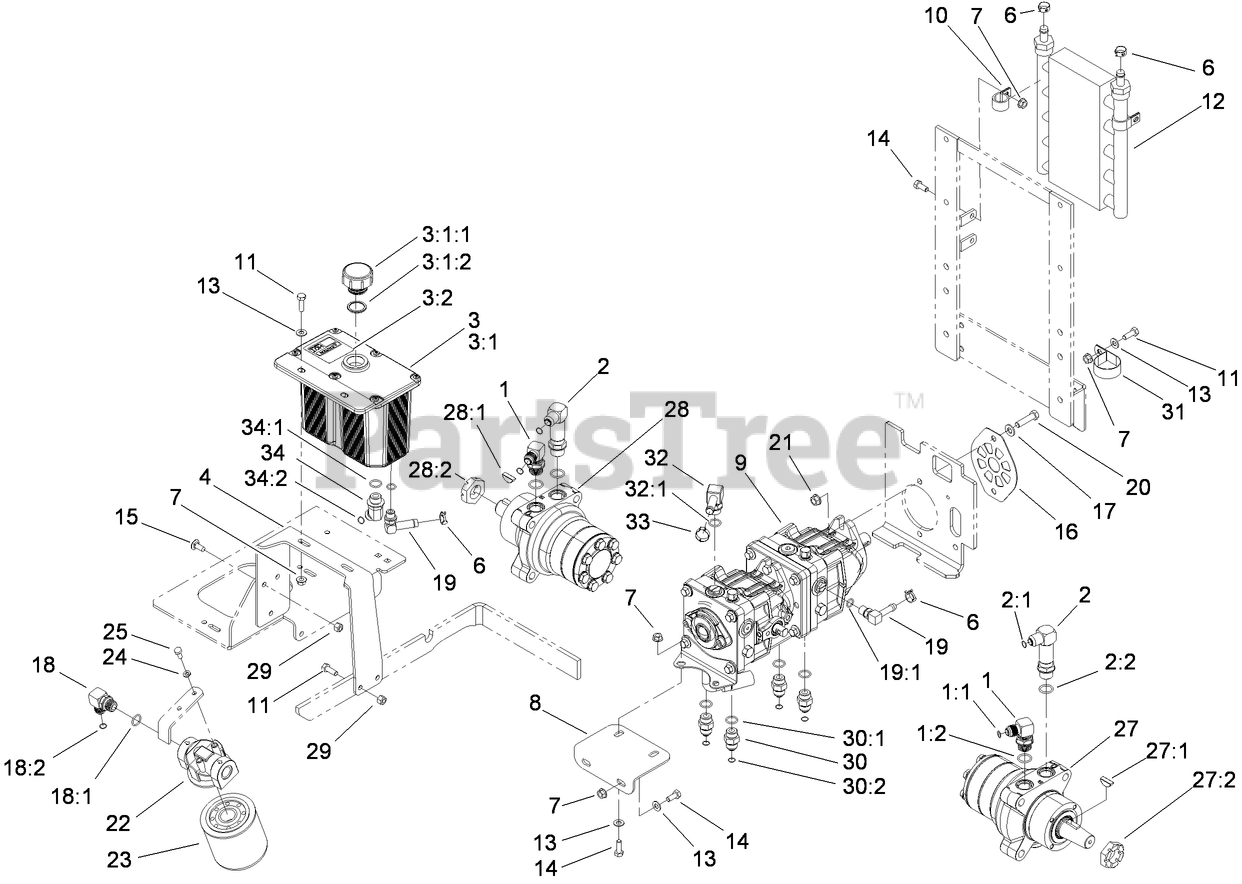

74266 (Z 580-D) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) HYDRAULIC TANK, PUMP AND MOTOR ASSEMBLY Parts Diagram

HYDRAULIC TANK, PUMP AND MOTOR ASSEMBLY Parts Diagram
