74376 (Z 5035) - Toro 50" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) DECK LIFT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

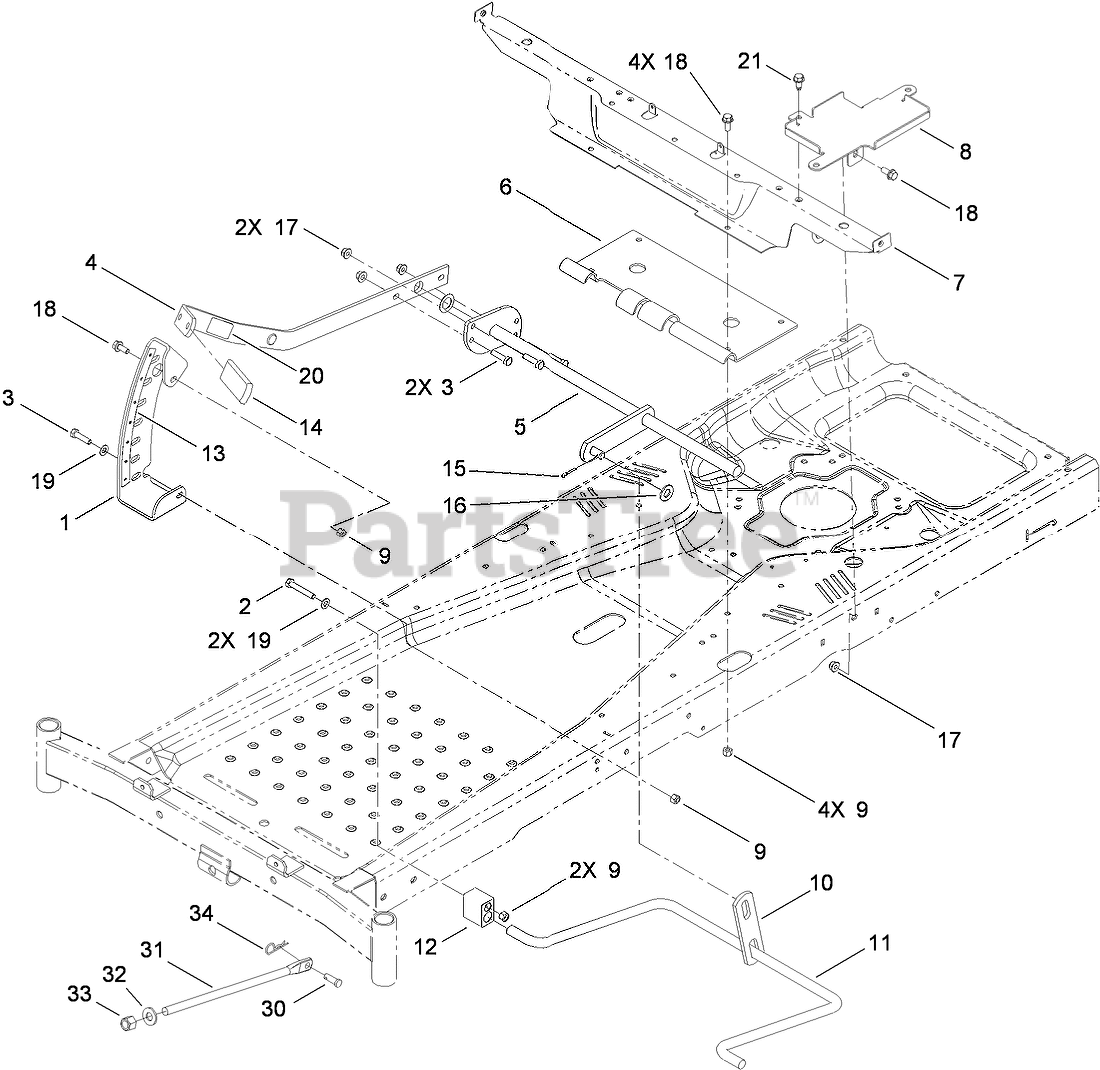

DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 112-4027-03

SECTOR-HOC

$29.99

$

Usually ships in 3-6 days

0

2

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 112-3960-03

LIFT ARM ASM

$47.99

$

Usually ships in 3-6 days

0

5

Toro 108-7841-03

LIFT LEVER ASM

$70.99

$

In Stock, only 1 left!

0

6

Toro 110-6800-03

PLATE-LIFT

$

$

Not available

7

Toro 110-6805-03

BRACKET-SEAT/PODS

$90.99

$

Usually ships in 3-6 days

0

8

Toro 110-1937-03

TRAY-BATTERY

$28.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 14

0

11

Toro 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$34.99

$

In Stock, Qty 20+

0

12

Toro 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, Qty 20+

0

13

Toro 112-9802

DECAL-HOC

$

$

Not available

14

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 106-8743

DECAL-HOC

$2.49

$

Usually ships in 3-6 days

0

21

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

30

Toro 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 1 left!

0

31

Toro 108-7847

ROD-LIFT

$19.99

$

In Stock, Qty 12

0

32

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

33

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0
