74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) SEAT ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

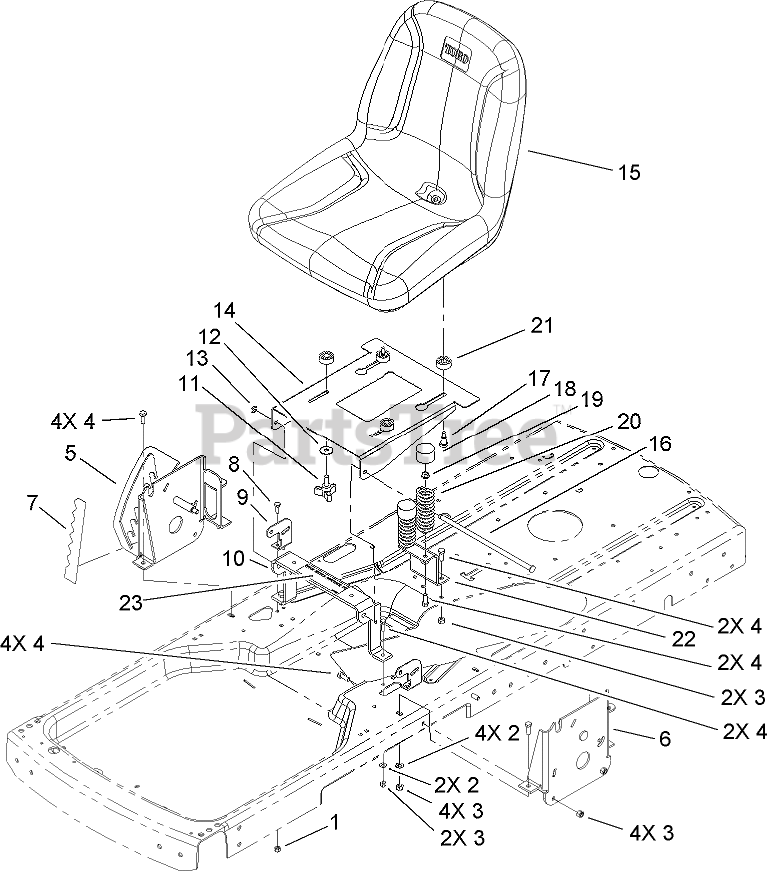

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 106-2158-03

RH PLATE ASM

$

$

Not available

6

Toro 106-2159-03

LH PLATE ASM

$81.99

$

Usually ships in 3-6 days

0

7

Toro 106-2223

DECAL-HOC

$5.99

$

Usually ships in 3-6 days

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-2180

BRACKET-BELLCRANK

$6.99

$

Usually ships in 3-6 days

0

10

Toro 108-8742-03

BRACE-SEAT, DC

$

$

Not available

11

Toro 106-2240

KNOB

$13.99

$

In Stock, only 2 left!

0

12

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Toro 105-7004

E-RING

$0.99

$

In Stock, Qty 5

0

14

Toro 105-6953-03

BRACKET-SEAT

$

$

Not available

15

Toro 108-2329

SEAT
(Superseded to 119-8829)

$313.99

$

Usually ships in 3-6 days

0

16

Toro 105-6955

PIN-PIVOT

$42.99

$

Usually ships in 3-6 days

0

17

Toro 613529

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

18

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 12

0

19

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

20

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

21

Toro 107-4902

SPACER-NYLON

$1.99

$

Usually ships in 3-6 days

0

22

Toro 107-8964-03

BRACE-SEAT

$

$

Not available

23

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0
