74433 (ZD 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290999999) (2009) ELECTRICAL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

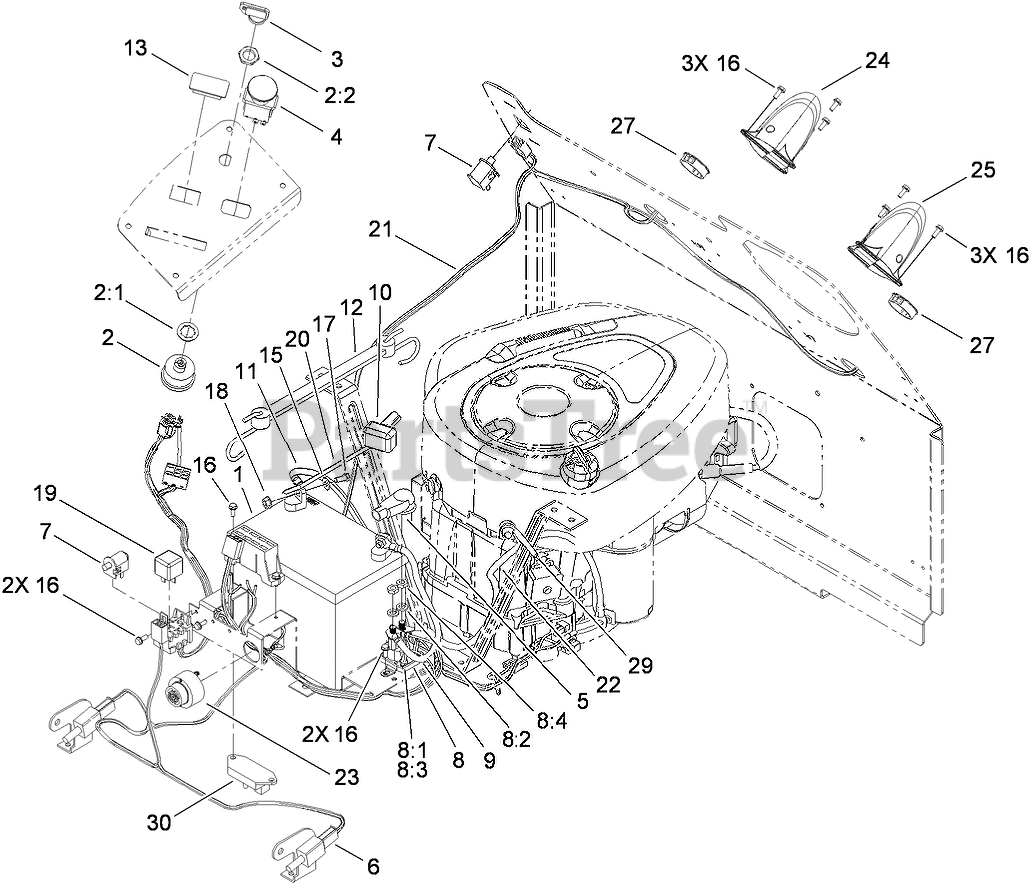

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2493

BATTERY
(Superseded to 105-1692)

$

$

Not available

2

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 95-7489

SWITCH-PTO

$34.99

$

In Stock, only 1 left!

0

5

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

6

Toro 106-2216

SWITCH

$17.99

$

In Stock, Qty 6

0

7

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

8

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

8:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

8:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

8:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-3540

CABLE-BATTERY, POSITIVE

$33.99

$

Usually ships in 3-6 days

0

10

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

11

Toro 95-7654

CABLE-NEGATIVE, BLACK

$38.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

13

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

21

Toro 112-7561

HARNESS-WIRE

$

$

Not available

22

Toro 92-6989

WIRE-21 INCH

$25.99

$

Usually ships in 3-6 days

0

23

Toro 103-0205

ALARM-TONE, DUAL

$64.99

$

In Stock, only 4 left!

0

24

Toro 112-9890

BAG SENSOR ASM

$63.99

$

Usually ships in 3-6 days

0

25

Toro 110-8018

BAG SENSOR ASM

$

$

Not available

27

Toro 110-8589

BUSHING-HARNESS, WIRE

$3.49

$

Usually ships in 3-6 days

0

29

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

30

Toro 100-6170

MODULE-DELAY

$59.99

$

In Stock, only 3 left!

0
