74472 (HD 2500) - Toro 60" Titan Zero-Turn Mower (SN: 403351084 - 404314999) LH Motion Control Assembly Parts Diagram

60" Titan Zero-Turn Mower

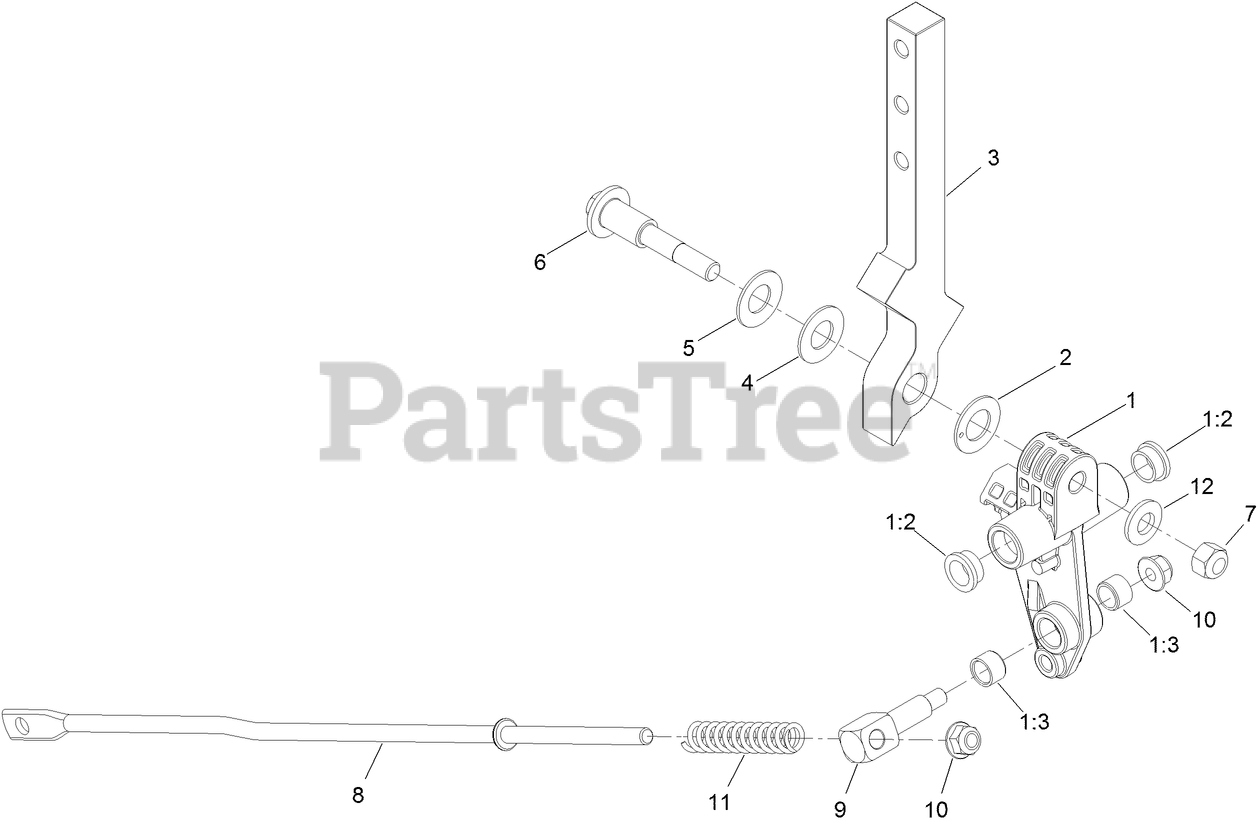

LH Motion Control Assembly Parts Diagram

  • Title

1

Toro 126-3773

CONTROL ARM ASM

$38.99

$

In Stock, only 4 left!

0

1:2

Toro 126-8909

BUSHING

$2.99

$

In Stock, Qty 5

0

1:3

Toro 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

2

Toro 126-7296

WASHER-FRICTION

$15.99

$

In Stock, only 1 left!

0

3

Toro 126-8182

ARM-CONTROL

$77.99

$

Usually ships in 3-6 days

0

4

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

6

Toro 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 20+

0

7

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

8

Toro 126-5435

LINK-CONTROL

$12.99

$

Usually ships in 3-6 days

0

9

Toro 126-5434

SWIVEL

$6.49

$

Usually ships in 3-6 days

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 126-8195

SPRING-RETURN, NEUTRAL

$2.99

$

In Stock, Qty 5

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
