74536 - Toro 40" GrandStand Stand-On Mower (SN: 311000001 - 311999999) (2011) MAIN FRAME ASSEMBLY Parts Diagram

40" GrandStand Stand-On Mower

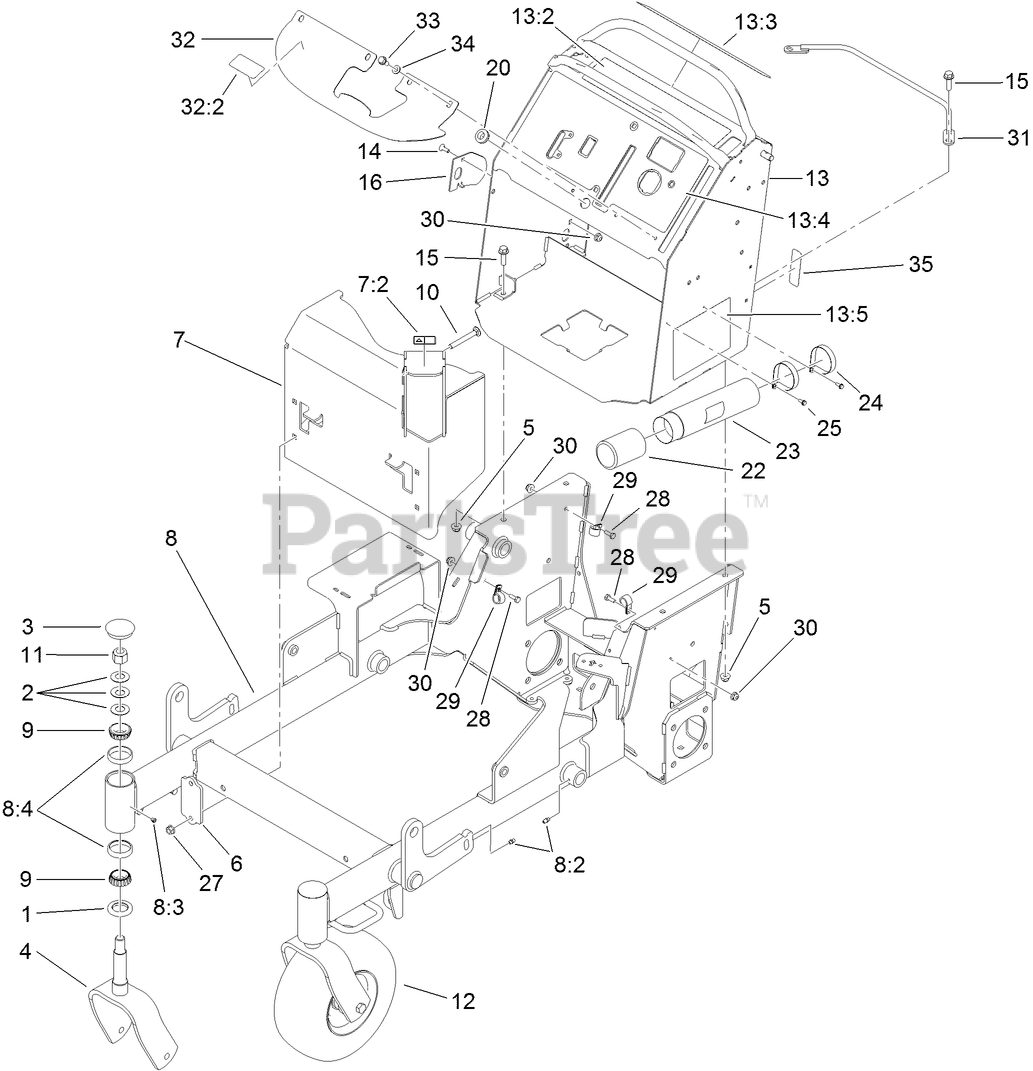

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

2

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

4

Toro 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 119-7303-01

BRACKET-MOUNTING, GUARD

$13.99

$

Usually ships in 3-6 days

0

7

Toro 119-0230

MUFFLER GUARD ASM
(Superseded to 116-8739)

$236.99

$

Usually ships in 3-6 days

0

7:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

8

Toro 117-7680

FRAME ASM

$

$

Not available

8:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

8:3

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

8:4

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

9

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

10

Toro 3231-10

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

11

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

12

Toro 112-3810

WHEEL/TIRE AND BEARING ASM

$210.99

$

In Stock, only 3 left!

0

13

Toro 120-6425

CONTROL TOWER ASM

$

$

Not available

13:2

Toro 117-0454

DECAL-OPC

$37.99

$

Usually ships in 3-6 days

0

13:3

Toro 117-3626

DECAL-WARNING

$33.99

$

Usually ships in 3-6 days

0

13:4

Toro 119-0234

DECAL-PANEL, CONTROL

$

$

Not available

13:5

Toro 119-0185

DECAL-SERVICE/SPARK ARREST

$11.99

$

Usually ships in 3-6 days

0

14

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

15

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

16

Toro 119-7312

PLATE-STRIKER

$20.99

$

Usually ships in 3-6 days

0

20

Toro 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

22

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

23

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

24

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

25

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

30

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 119-1878-03

RETAINER-CABLE

$44.99

$

Usually ships in 3-6 days

0

32

Toro 119-0239

COVER-TANK

$75.99

$

Usually ships in 3-6 days

0

32:2

Toro 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

33

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

34

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 20+

0

35

Toro 116-3267

DECAL-FUSE

$5.49

$

Usually ships in 3-6 days

0
