74583 - Toro 60" GrandStand Stand-On Mower (SN: 313001001 - 313999999) (2013) DECKLIFT ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

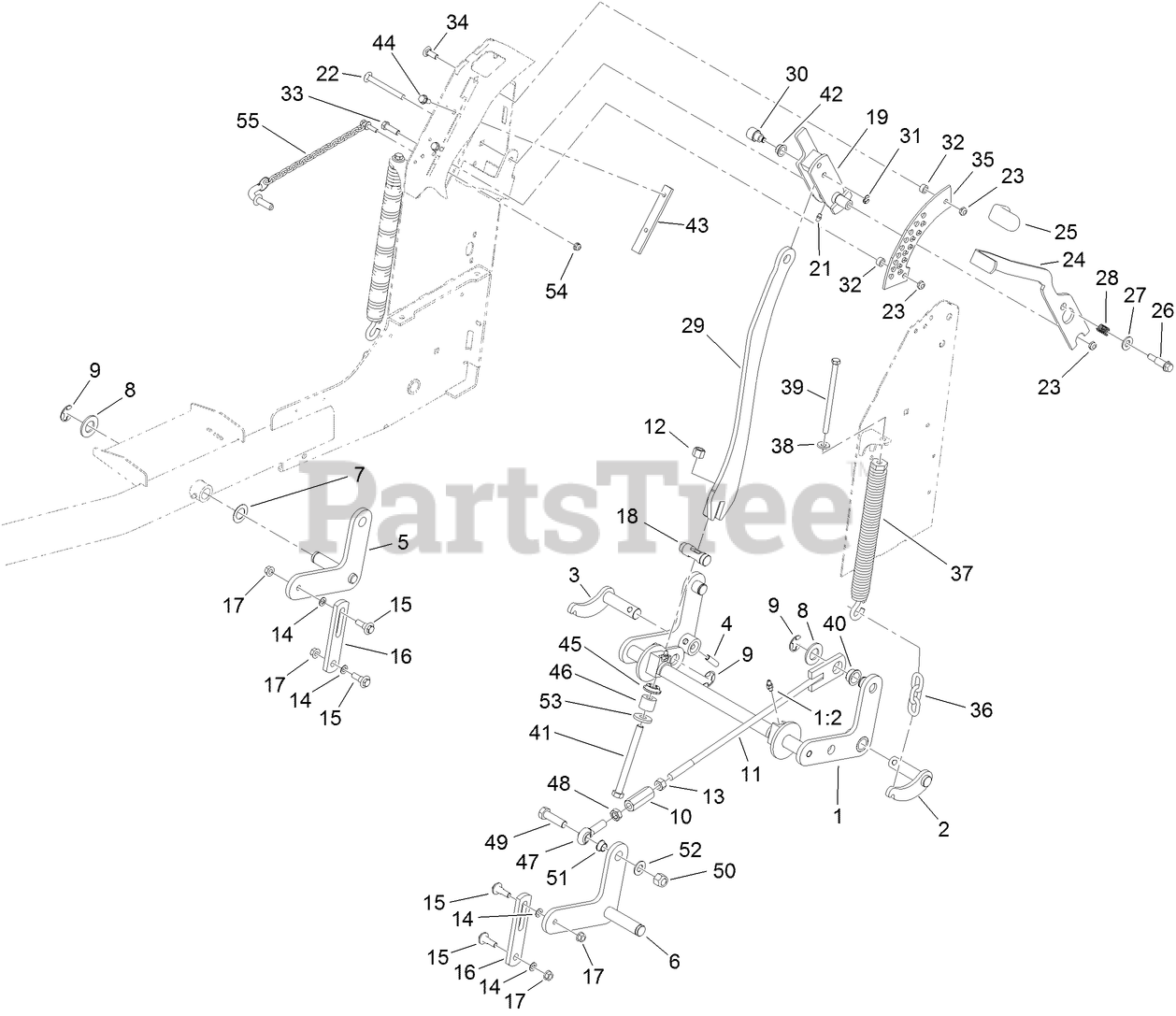

DECKLIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 116-3103

REAR CROSSSHAFT ASM

$566.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

2

Toro 116-3104-01

SHAFT-PIVOT, LH

$52.99

$

Usually ships in 3-6 days

0

3

Toro 116-3105-01

SHAFT-PIVOT, RH

$52.99

$

Usually ships in 3-6 days

0

4

Toro 116-3107

PIN-SPIRAL

$7.99

$

In Stock, only 3 left!

0

5

Toro 121-5999-01

RH LIFT ARM ASM

$60.99

$

Usually ships in 3-6 days

0

6

Toro 121-5998-01

LH LIFT ARM ASM

$60.99

$

Usually ships in 3-6 days

0

7

Toro 110-6767

WASHER-THRUST

$1.99

$

In Stock, Qty 14

0

8

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, Qty 6

0

9

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

10

Toro 119-7250

LINK-LIFT

$55.99

$

In Stock, only 1 left!

0

11

Toro 119-7306

LIFT ROD ASM

$65.99

$

In Stock, only 2 left!

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

16

Toro 117-0519

LINK-LIFT

$36.99

$

Usually ships in 3-6 days

0

17

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

18

Toro 114-5274

PIN-HOC

$26.99

$

In Stock, only 1 left!

0

19

Toro 114-3512

HOC HANDLE ASM

$233.99

$

Usually ships in 3-6 days

0

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

22

Toro 3231-24

SCREW-CARR

$14.99

$

Usually ships in 3-6 days

0

23

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

24

Toro 114-1878-03

LEVER-HOC

$64.99

$

In Stock, only 4 left!

0

25

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, Qty 20+

0

26

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, Qty 10

0

27

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 65-9940

SPRING

$4.99

$

In Stock, only 3 left!

0

29

Toro 116-2939

BAR-LIFT

$103.99

$

Usually ships in 3-6 days

0

30

Toro 116-3048

HUB-PIVOT

$38.99

$

In Stock, only 1 left!

0

31

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

32

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

33

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

35

Toro 114-5307

BRACKET-HOC

$39.99

$

Usually ships in 3-6 days

0

36

Toro 103-9859

CHAIN-DECKLIFT

$6.49

$

Usually ships in 3-6 days

0

37

Toro 116-0886

SPRING-EXTENSION

$133.99

$

Usually ships in 3-6 days

0

38

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

39

Toro 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

40

Toro 116-2909

BEARING-FLANGE

$7.99

$

In Stock, Qty 5

0

41

Toro 325-22

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

42

Toro 116-3047

BEARING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

43

Toro 116-3124

SKID-HANDLE, LIFT

$23.99

$

Usually ships in 3-6 days

0

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 116-3625

SEAT-SPRING

$6.99

$

In Stock, Qty 5

0

46

Toro 116-3241

SPRING-URETHANE

$33.99

$

In Stock, Qty 8

0

47

Toro 117-5291

BALLJOINT-SPHERICAL

$41.99

$

In Stock, only 1 left!

0

48

Toro 117-5293

NUT-JAM

$5.49

$

In Stock, only 1 left!

0

49

Toro 327-22

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

50

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Toro 80-1290

BUSHING

$0.99

$

Usually ships in 3-6 days

0

52

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

53

Toro 92-2651

WASHER

$4.99

$

In Stock, Qty 12

0

54

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

55

Toro 114-0409

HOC PIN ASM

$51.99

$

In Stock, only 1 left!

0
