74593 (DH 220) - Toro Lawn Tractor (SN: 290000001 - 290999999) (2009) ENGINE ASSEMBLY Parts Diagram
Lawn Tractor

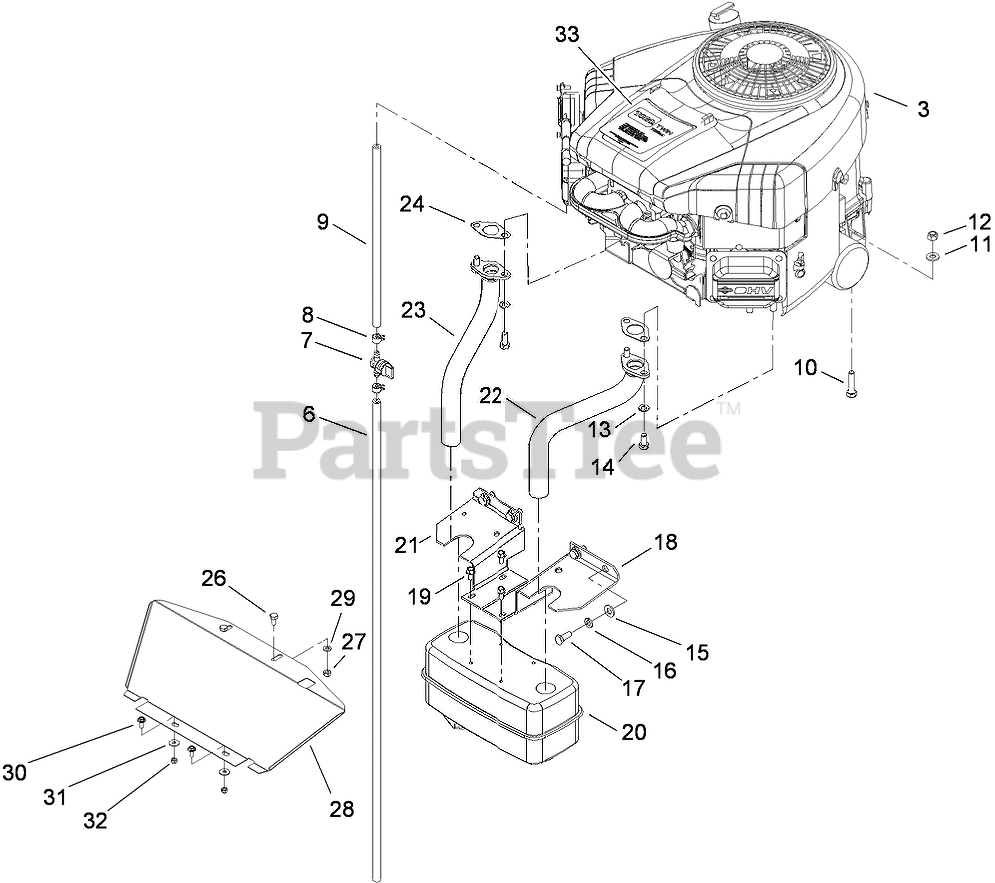

ENGINE ASSEMBLY Parts Diagram
Note: Not serviced separately
$
$
Not available
Note: Obtain parts from www.briggsandstratton.com
$
$
Not available
Toro 110-8692
$
$
Currently unavailable
Toro 104-3224
$
$
Currently unavailable
Toro 104-3212
$
$
Currently unavailable
$
$
Not available
Toro 33114-035
$4.99
$
Toro 33094-00
$0.99
$
Toro 33024-00
$0.99
$
Toro 104-2927
$
$
Not available
Toro 322-3
$0.99
$
Toro 33094-00
$0.99
$
Toro 104-2927
$
$
Not available
Toro 33114-020
$0.99
$
Toro 104-3214
$
$
Currently unavailable
Toro 106-5763
$
$
Currently unavailable
Toro 104-3225
$
$
Currently unavailable
Toro 104-3215
$
$
Currently unavailable
Toro 104-3216
$
$
Currently unavailable
Toro 104-3217
$
$
Currently unavailable
Toro 104-3226
$10.99
$
Toro 33113-012
$0.99
$
Toro 33023-00
$0.99
$
Toro 104-3219
$
$
Currently unavailable
Toro 33093-00
$0.99
$
Toro 104-2980
$
$
Currently unavailable
Toro 104-2943
$
$
Currently unavailable
Toro 87-5140
$0.99
$
Toro 117-7820
$
$
Currently unavailable
