74633 (SS 4235) - Toro 42" TimeCutter Zero-Turn Mower (SN: 313100001 - 313999999) (2013) MOTION CONTROL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

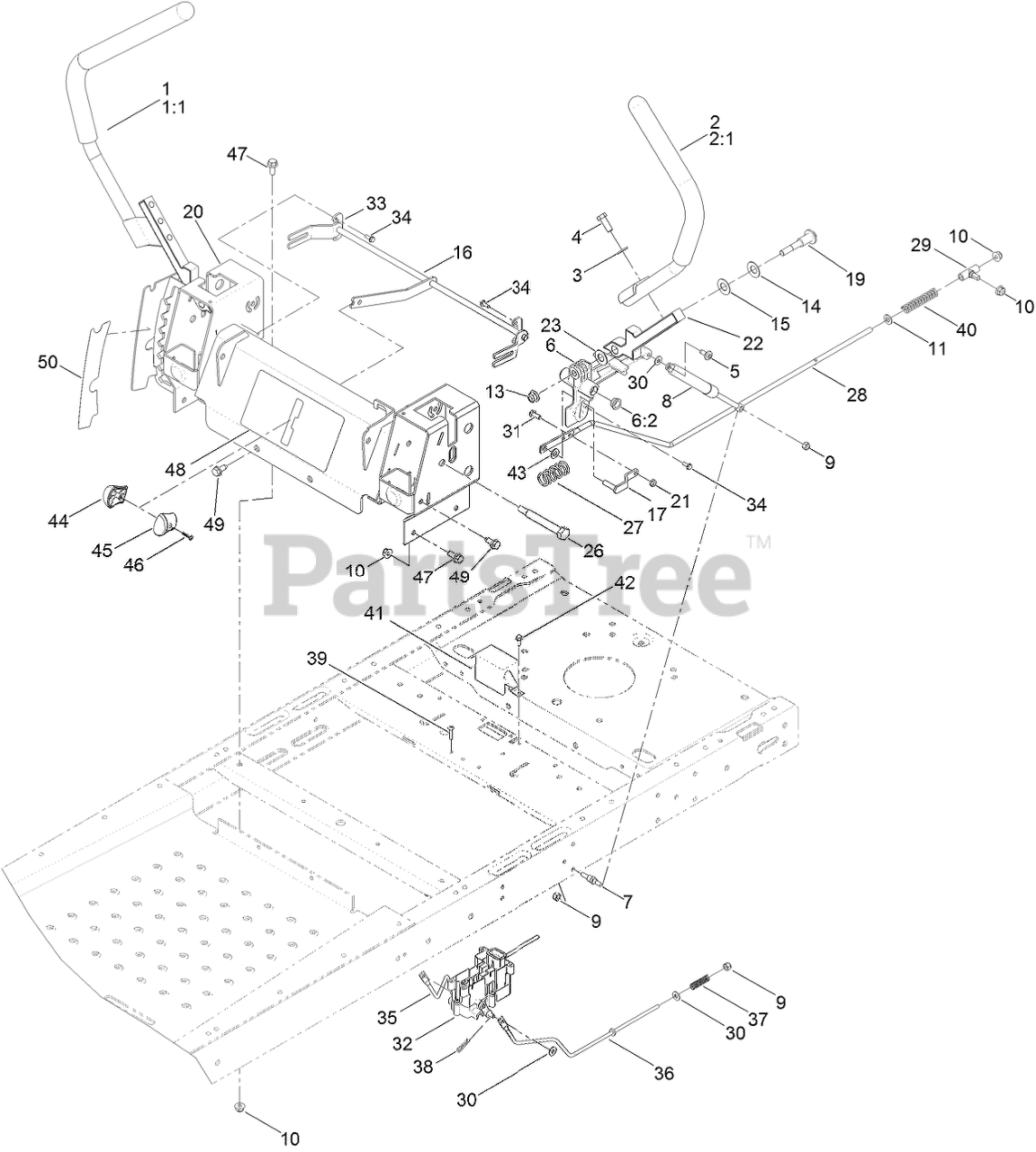

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0731

HANDLE-CONTROL, RH

$72.99

$

In Stock, only 1 left!

0

1:1

Toro 121-0726

GRIP

$14.99

$

In Stock, Qty 7

0

2

Toro 121-0730

HANDLE-CONTROL, LH

$72.99

$

In Stock, only 3 left!

0

2:1

Toro 121-0726

GRIP

$14.99

$

In Stock, Qty 7

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

6

Toro 119-3470

ACTUATOR ARM ASM

$26.99

$

In Stock, Qty 8

0

6:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

7

Toro 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 1 left!

0

8

Toro 103-2913

Damper-Control, Motion
(Superseded to 109-2339)

$82.99

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

15

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 119-8832

CONTROL-SPEED

$75.99

$

Usually ships in 3-6 days

0

17

Toro 119-3303

PIN-ROD, HYDRO
(Superseded to 121-1753)

$6.49

$

Usually ships in 3-6 days

0

19

Toro 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 20+

0

20

Toro 125-5473-03

CONTROL BOX ASM

$215.99

$

Usually ships in 3-6 days

0

21

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 115-5098-05

LEVER-CONTROL
(Superseded to 133-9299-05)

$47.99

$

In Stock, Qty 14

0

23

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, Qty 7

0

26

Toro 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 3 left!

0

27

Toro 119-8876

SPRING-RETURN

$2.99

$

In Stock, only 2 left!

0

28

Toro 117-5388

ROD-HYDRO
(Superseded to 138-7217)

$12.99

$

In Stock, only 2 left!

0

29

Toro 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

Usually ships in 3-6 days

0

30

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

32

Toro 121-3017

BRAKE CONTROL MODULE ASM

$182.99

$

In Stock, Qty 20+

0

33

Toro 117-5385

RETAINER

$1.49

$

Usually ships in 3-6 days

0

34

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

35

Toro 121-2974

ROD-BRAKE, RH

$12.99

$

In Stock, only 1 left!

0

36

Toro 121-2975

ROD-BRAKE, LH

$12.99

$

In Stock, only 1 left!

0

37

Toro 117-1169

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

38

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

39

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 5

0

40

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 19

0

41

Toro 119-8859

COVER-BRAKE

$7.99

$

In Stock, only 2 left!

0

42

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

43

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

44

Toro 119-8935

KNOB-RH
(Superseded to 132-9368)

$2.49

$

In Stock, only 2 left!

0

45

Toro 119-8936

KNOB-LH
(Superseded to 132-9369)

$2.49

$

In Stock, only 3 left!

0

46

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

47

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

48

Toro 119-8874

DECAL-SPEED CONTROL
(Superseded to 130-0780)

$6.49

$

Usually ships in 3-6 days

0

49

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

50

Toro 119-8871

DECAL-HOC

$5.49

$

Usually ships in 3-6 days

0
