74740 (SS 5425) - Toro 54" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) ENGINE AND MUFFLER ASSEMBLY Parts Diagram

54" TimeCutter Zero-Turn Mower

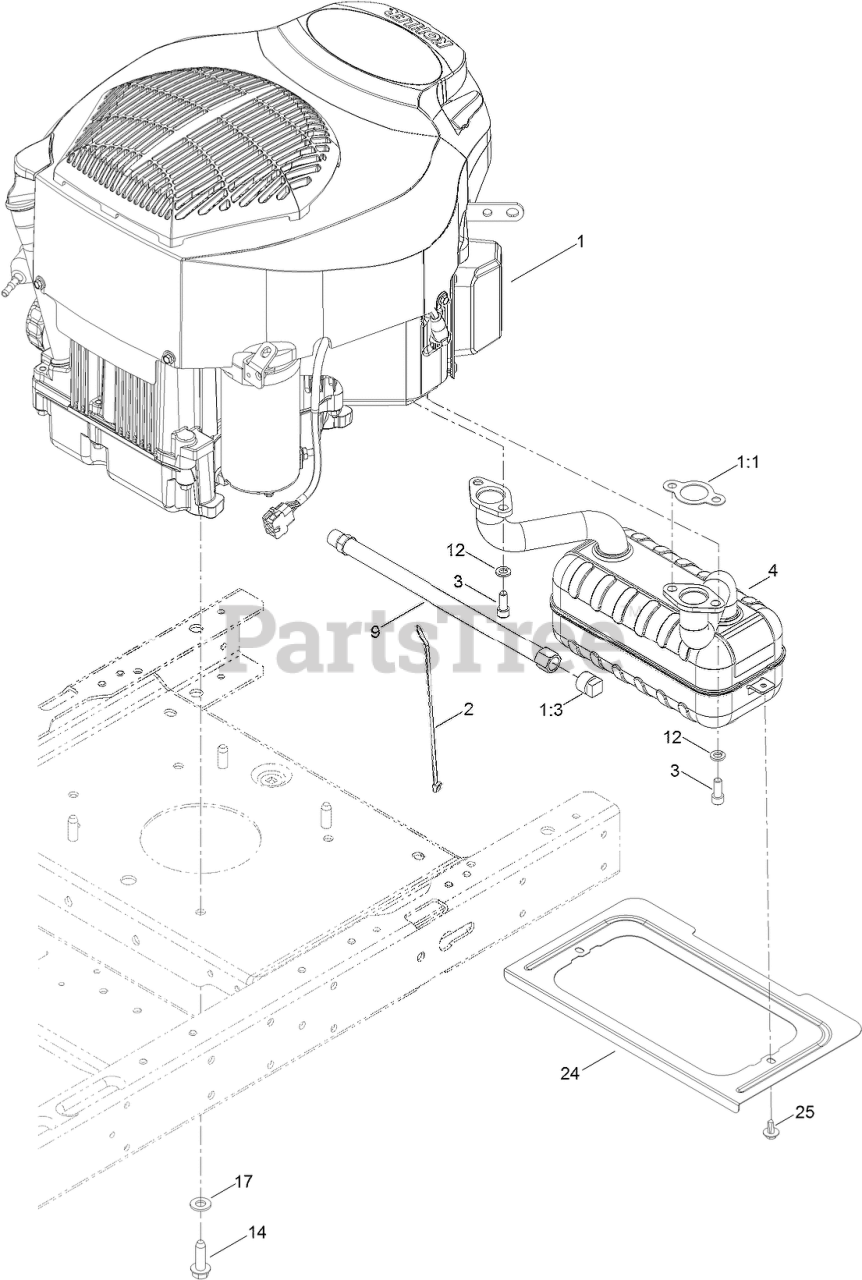

ENGINE AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER 24HP 7000 SERIES AUTOCHOKE

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER 24HP 7000 SERIES AUTOCHOKE

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

1:3

Toro 281-2

PLUG-PIPE, SQH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

3

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 20+

0

4

Toro 117-7462

MUFFLER-KOHLER

$246.99

$

In Stock, only 1 left!

0

9

Toro 117-1261

HOSE-DRAIN, OIL

$28.99

$

In Stock, only 2 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 18

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 131-1071-03

SHIELD-HEAT

$12.99

$

In Stock, Qty 8

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0
