74902 TE (6000) - Toro 122cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402080000 - 403138032) Seat Mounting Assembly Parts Diagram

122cm Z Master Zero-Turn Mower, Side-Discharge Deck

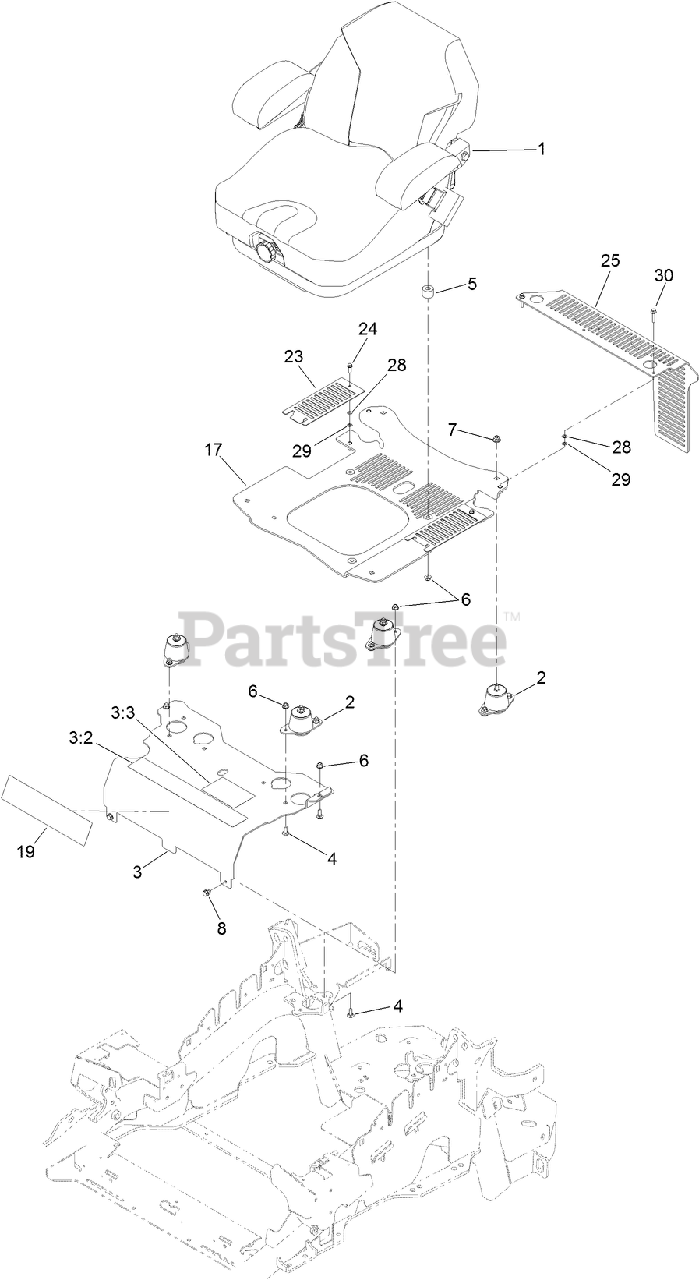

Seat Mounting Assembly Parts Diagram

  • Title

1

Toro 125-3107

See Supercession: 121-7595
(Superseded to 121-7595)

$1051.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$66.99

$

In Stock, Qty 8

0

3

Toro 116-2324

MOUNT-SEAT

$305.99

$

Usually ships in 3-6 days

0

3:2

Toro 114-4468

DECAL-CONSOLE

$47.99

$

Usually ships in 3-6 days

0

3:3

Toro 125-9383

DECAL-SERVICE AID

$22.99

$

Usually ships in 3-6 days

0

4

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-9329

SPACER

$11.99

$

In Stock, only 3 left!

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

17

Toro 117-0910

SEAT BASE ASM

$361.99

$

Usually ships in 3-6 days

0

19

Toro 119-2507

DECAL
(Superseded to 140-1215)

$8.99

$

In Stock, only 1 left!

0

23

Toro 117-0901-03

COVER

$29.99

$

Usually ships in 3-6 days

0

24

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

25

Toro 119-4241-03

GUARD-CE

$219.99

$

Usually ships in 3-6 days

0

28

Toro 3256-60

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

29

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

30

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
