74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) ELECTRIAL ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

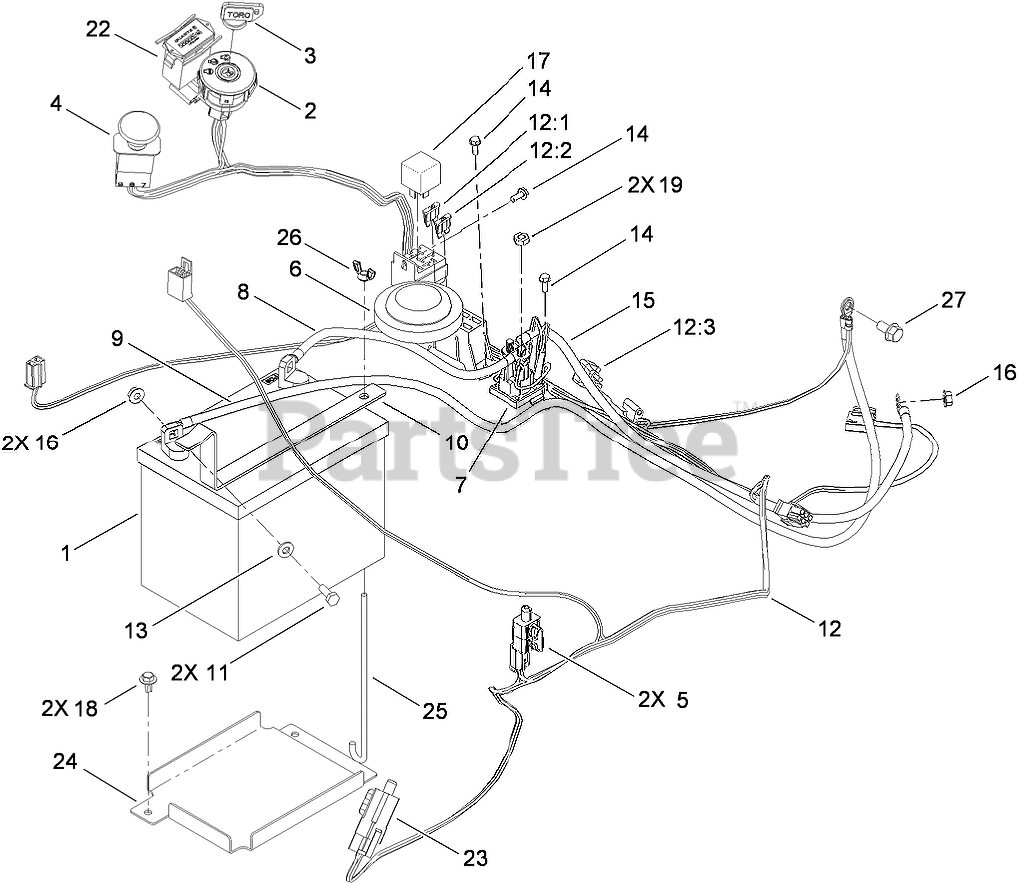

ELECTRIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2493

BATTERY
(Superseded to 105-1692)

$

$

Not available

2

Toro 116-0050

SWITCH-IGNITION

$38.99

$

In Stock, Qty 5

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 93-9998

SWITCH-PTO

$44.99

$

In Stock, Qty 13

0

5

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

6

Toro 100-3524

SWITCH-SEAT

$60.99

$

In Stock, only 2 left!

0

7

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

8

Toro 117-5342

CABLE-BATTERY, POSITIVE

$37.99

$

Usually ships in 3-6 days

0

9

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$22.99

$

Usually ships in 3-6 days

0

10

Toro 117-7313-01

STRAP-BATTERY

$10.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-7243

Harness-Wire
(Superseded to 121-3015)

$311.99

$

Usually ships in 3-6 days

0

12:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 12

0

12:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

12:3

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

15

Toro 92-6989

WIRE-21 INCH

$25.99

$

Usually ships in 3-6 days

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

18

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

19

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

23

Toro 99-7408

SWITCH-REVERSE

$27.99

$

In Stock, only 1 left!

0

24

Toro 117-1283-03

TRAY-BATTERY

$22.99

$

Usually ships in 3-6 days

0

25

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

26

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 20+

0

27

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0
