74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) MAIN FRAME AND FRONT CASTER WHEEL ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

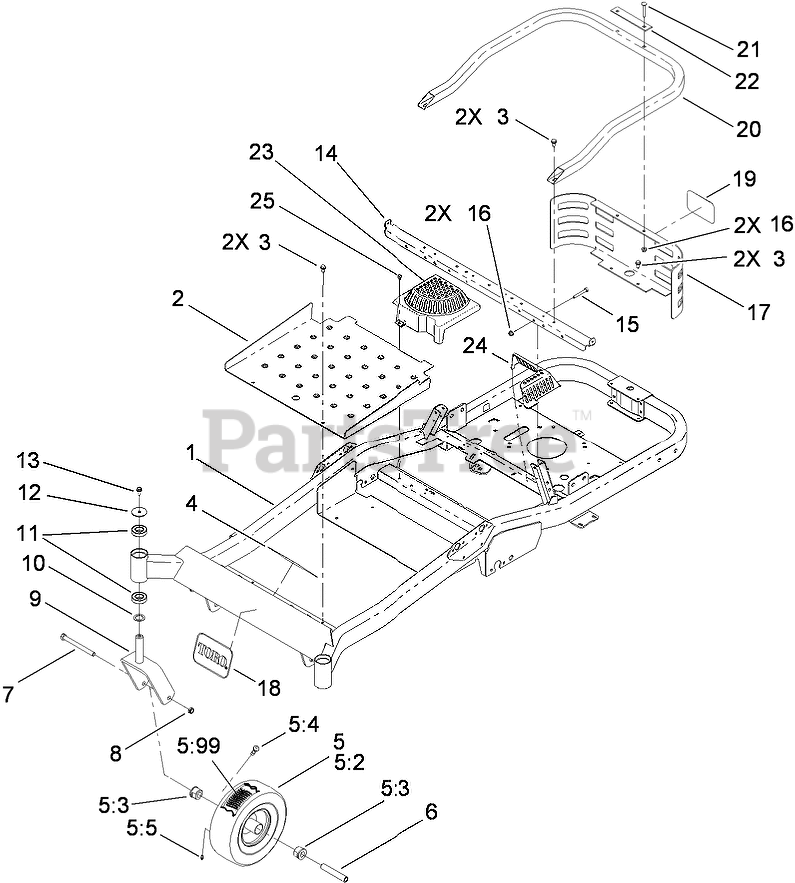

MAIN FRAME AND FRONT CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7356-01

FRAME

$2251.99

$

Usually ships in 3-6 days

0

2

Toro 115-2531-03

FLOORPAN
(Superseded to 115-2531-05)

$191.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 109-8965

DECAL-SAFETY

$18.99

$

Usually ships in 3-6 days

0

5

Toro 115-2554

TIRE and Wheel ASM (Kenda)

$209.99

$

In Stock, Qty 10

0

5:2

Toro 115-2557

TIRE-SMOOTH

$96.99

$

In Stock, only 1 left!

0

5:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

5:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

5:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

5:99

Toro 117-1234

TUBE-INNER

$31.99

$

In Stock, only 4 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

9

Toro 110-6634-01

CASTER FORK ASM

$94.99

$

Usually ships in 3-6 days

0

10

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 14

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 109-3724

WASHER

$3.49

$

In Stock, Qty 8

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 5

0

14

Toro 115-2566-03

SUPPORT-SEAT

$

$

Not available

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 115-2632-03

GUARD-REAR, SHIELD
(Superseded to 120-2248-03)

$126.99

$

Usually ships in 3-6 days

0

18

Toro 62-5550

DECAL

$10.99

$

In Stock, only 1 left!

0

19

Toro 105-8278

DECAL

$10.99

$

In Stock, only 4 left!

0

20

Toro 115-2565-01

GUARD-REAR, TUBE

$

$

Not available

21

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 115-5061-01

PLATE-SPACER

$

$

Not available

23

Toro 117-1241

COVER-FAN, RH

$19.99

$

Usually ships in 3-6 days

0

24

Toro 117-1242

COVER-FAN, LH

$14.99

$

Usually ships in 3-6 days

0

25

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0
