74914 (ZX 5400) - Toro 54" Titan Zero-Turn Mower (SN: 310000001 - 310999999) (2010) MOTION CONTROL ASSEMBLY Parts Diagram

54" Titan Zero-Turn Mower

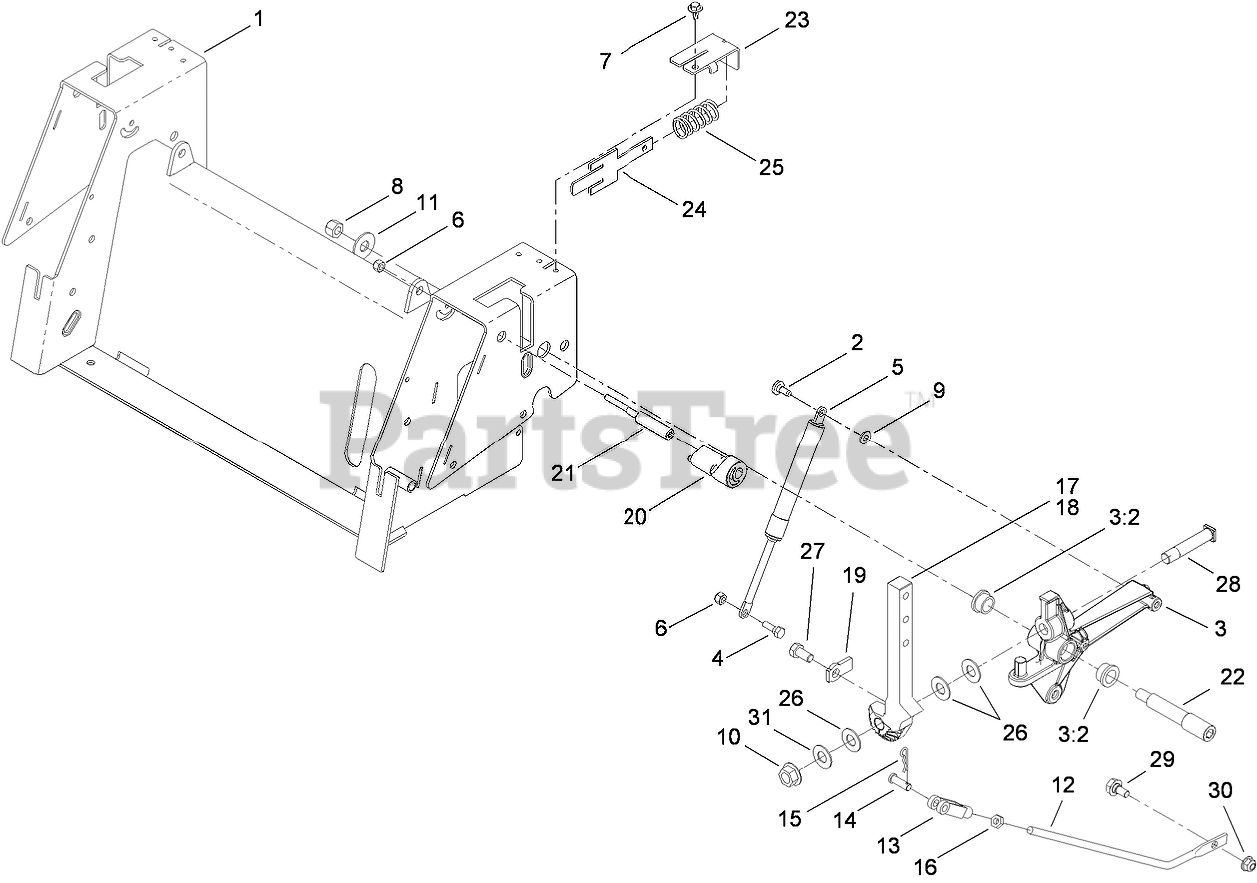

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2546-03

BOX-CONTROL
(Superseded to 127-3282-03)

$325.99

$

Usually ships in 3-6 days

0

2

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 20+

0

3

Toro 110-6828

ACTIVATOR ARM ASM

$57.99

$

Usually ships in 3-6 days

0

3:2

Toro 105-3455

BUSHING

$3.49

$

In Stock, only 4 left!

0

4

Toro 106-2214

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

5

Toro 103-2913

Damper-Control, Motion
(Superseded to 109-2339)

$82.99

$

In Stock, Qty 20+

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

8

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

11

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 5

0

12

Toro 115-2529

LINK-BENT, HYDRO

$17.99

$

Usually ships in 3-6 days

0

13

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, Qty 6

0

14

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 19

0

15

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

17

Toro 110-6783-05

ARM-ACTUATOR, LH

$73.99

$

In Stock, Qty 9

0

18

Toro 110-6782-05

ARM-ACTUATOR, RH

Note: Not illustrated

$73.99

$

In Stock, only 2 left!

0

19

Toro 115-5023

TAB-STOP

$5.49

$

Usually ships in 3-6 days

0

20

Toro 110-6873

ECCENTRIC

$5.49

$

Usually ships in 3-6 days

0

21

Toro 110-6874

SCREW-ECCENTRIC

$9.49

$

Usually ships in 3-6 days

0

22

Toro 110-6875

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

23

Toro 110-6751

BRACKET-RETURN

$6.99

$

Usually ships in 3-6 days

0

24

Toro 110-6750

PLATE-RETURN

$6.99

$

Usually ships in 3-6 days

0

25

Toro 110-6752

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

26

Toro 110-6894

WASHER-PIVOT

$1.49

$

In Stock, only 1 left!

0

27

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

28

Toro 110-6784

BOLT-SHOULDER

$

$

Not available

29

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 5

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 112-9771

WASHER-TEFLON

$2.99

$

In Stock, Qty 20+

0
