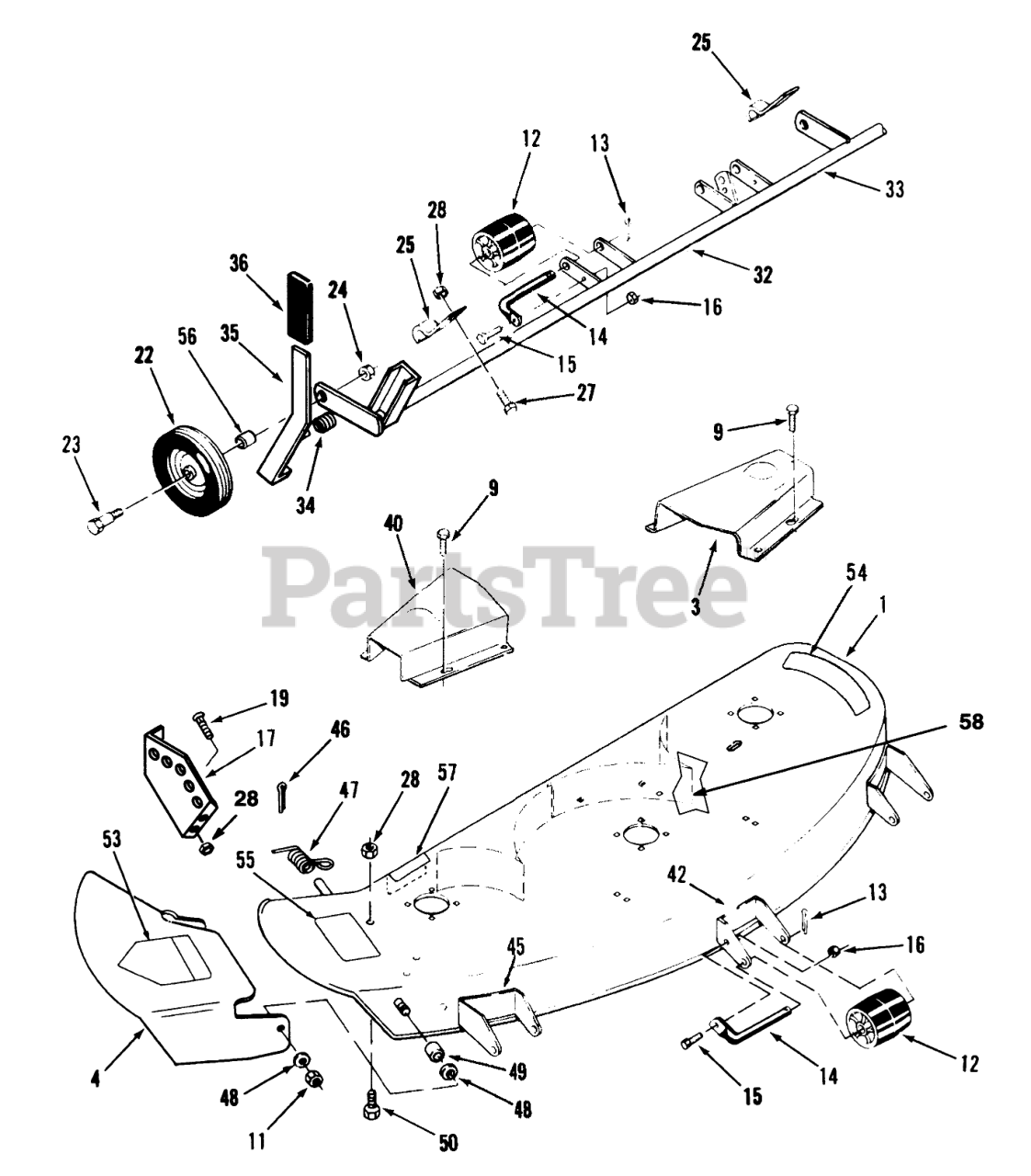

78346 - Toro 42" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) CUTTING UNIT ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 88-2740

Deck-Mower (Incl. Ref. #54 & 55)
(Superseded to 88-2730)

$1959.99

$

In Stock, only 1 left!

0

3

Toro 107029

Belt Cover LH
(Superseded to 107029-01)

$97.99

$

Usually ships in 3-6 days

0

4

Toro 88-2750

Extension-Chute (Incl. Ref. #53)
(Superseded to 99-3708)

$263.99

$

Usually ships in 3-6 days

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

11

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

12

Toro 109376

ROLLER ASSY

$

$

Not available

13

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0

14

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 2 left!

0

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 102654

Quadrant
(Superseded to 102654-01)

$71.99

$

Usually ships in 3-6 days

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 109375

WHEEL ASM

$

$

Not available

23

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

25

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 115064

Support-Gage Wheel
(Superseded to 115064-01)

$

$

Not available

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

35

Toro 115229

Lever
(Superseded to 115229-01)

$56.99

$

Usually ships in 3-6 days

0

36

Toro 103712

GRIP

$9.49

$

In Stock, only 3 left!

0

40

Toro 107028

Belt Cover RH
(Superseded to 107028-01)

$96.99

$

Usually ships in 3-6 days

0

46

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

47

Toro 116082

Spring
(Superseded to 93-1631)

$29.99

$

Usually ships in 3-6 days

0

48

Toro 116083

Washer
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 12

0

49

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

53

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

54

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

55

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 4 left!

0

56

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

57

Toro 106748

DECAL-HEIGHT & BELT

$10.99

$

In Stock, only 4 left!

0

58

Toro 115062

BAFFLE-DECK R.H.

$124.99

$

Usually ships in 3-6 days

0

Toro 115063

BAFFLE-DECK L.H.

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0
