78478 - Toro 60" Side-Discharge Mower Deck (SN: 089000120 - 089999999) (1998) CARRIER FRAME ASM Parts Diagram

60" Side-Discharge Mower Deck

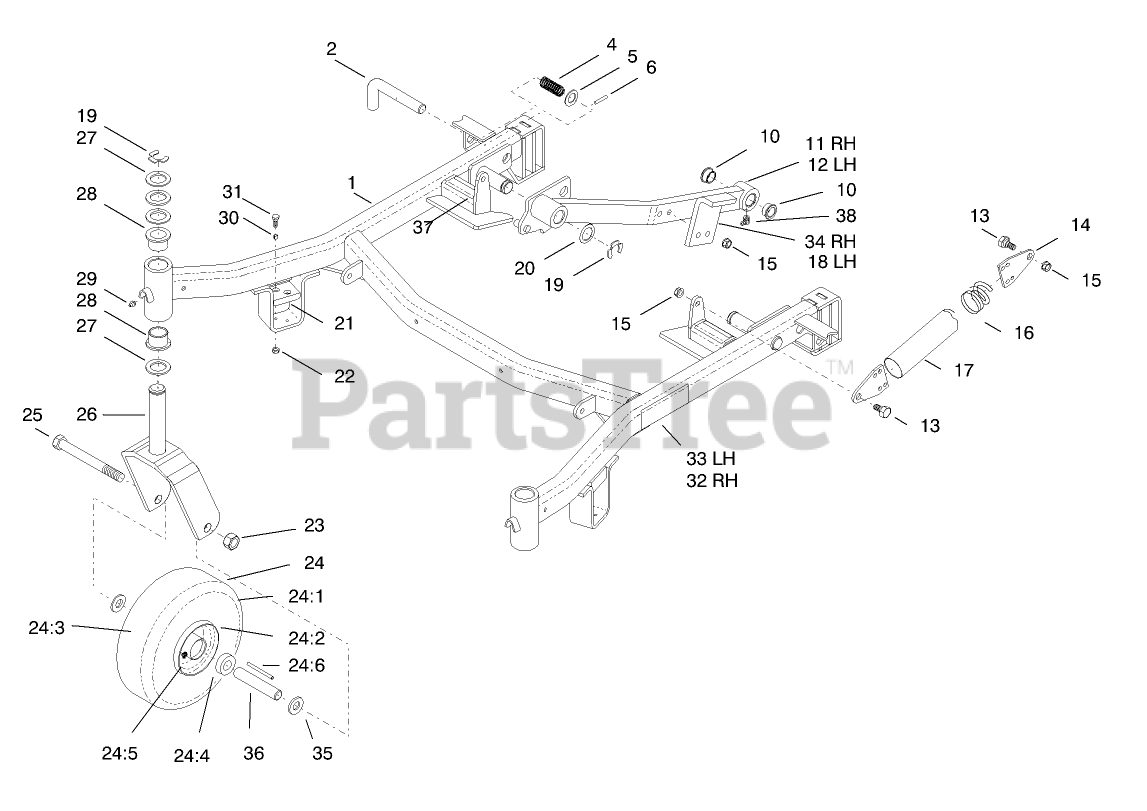

CARRIER FRAME ASM Parts Diagram

  • Title

1

Toro 94-9472-01

FRAME-CARRIER

$

$

Not available

2

Toro 98-1337

PIN - PIVOT

$

$

Not available

4

Toro 98-1339

SPRING-COMPRESSION

$6.49

$

Usually ships in 3-6 days

0

5

Toro 9202254

WASHER

$3.49

$

In Stock, only 2 left!

0

6

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

11

Toro 98-7323

RH Push Arm ASM
(Superseded to 105-1646)

$

$

Not available

12

Toro 98-7322

LH Push Arm ASM
(Superseded to 105-1645)

$

$

Not available

13

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

14

Toro 94-4750

PLATE-END, SPRING

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 94-4664

SPRING-EXTENSION

$

$

Not available

17

Toro 94-9550

COVER-SPRING

$

$

Not available

18

Toro 94-9511

Stop-Pusharm
(Superseded to 94-9511-01)

$

$

Not available

19

Toro 32151-91

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

20

Toro 9202514

Washer
(Superseded to 920251)

$2.99

$

Usually ships in 3-6 days

0

21

Toro 92-5417

CUSHION-RUBBER

$

$

Not available

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

24

Toro 98-1312

WHEEL/TIRE ASM

$409.99

$

Usually ships in 3-6 days

0

24:1

Toro 93-4243

TIRE

$75.99

$

Usually ships in 3-6 days

0

24:2

Toro 95-1974

Rim/Hub ASM

$

$

Currently unavailable

24:3

Toro 98-1311

TUBE- W/VALVE

$

$

Not available

24:4

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

24:5

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

24:6

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 6

0

25

Toro 327-24

SCREW-HH

$9.49

$

In Stock, only 3 left!

0

26

Toro 94-4633-01

FORK-CASTOR

$

$

Not available

27

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

28

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 20+

0

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

30

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 32122-44

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

32

Toro 94-9585

DECAL-HOC, RIGHT

$

$

Not available

33

Toro 94-9586

DECAL-HOC, LEFT

$

$

Not available

34

Toro 94-9583

STOP - PUSH ARM,RH R

$

$

Not available

35

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

36

Toro 98-1310

SPANNER

$

$

Not available

37

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

38

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0
