815013 - Gravely 54" Dozer Blade for ZT Series (SN: 000101 & Above) Frame Subassembly Parts Diagram

54" Dozer Blade for ZT Series

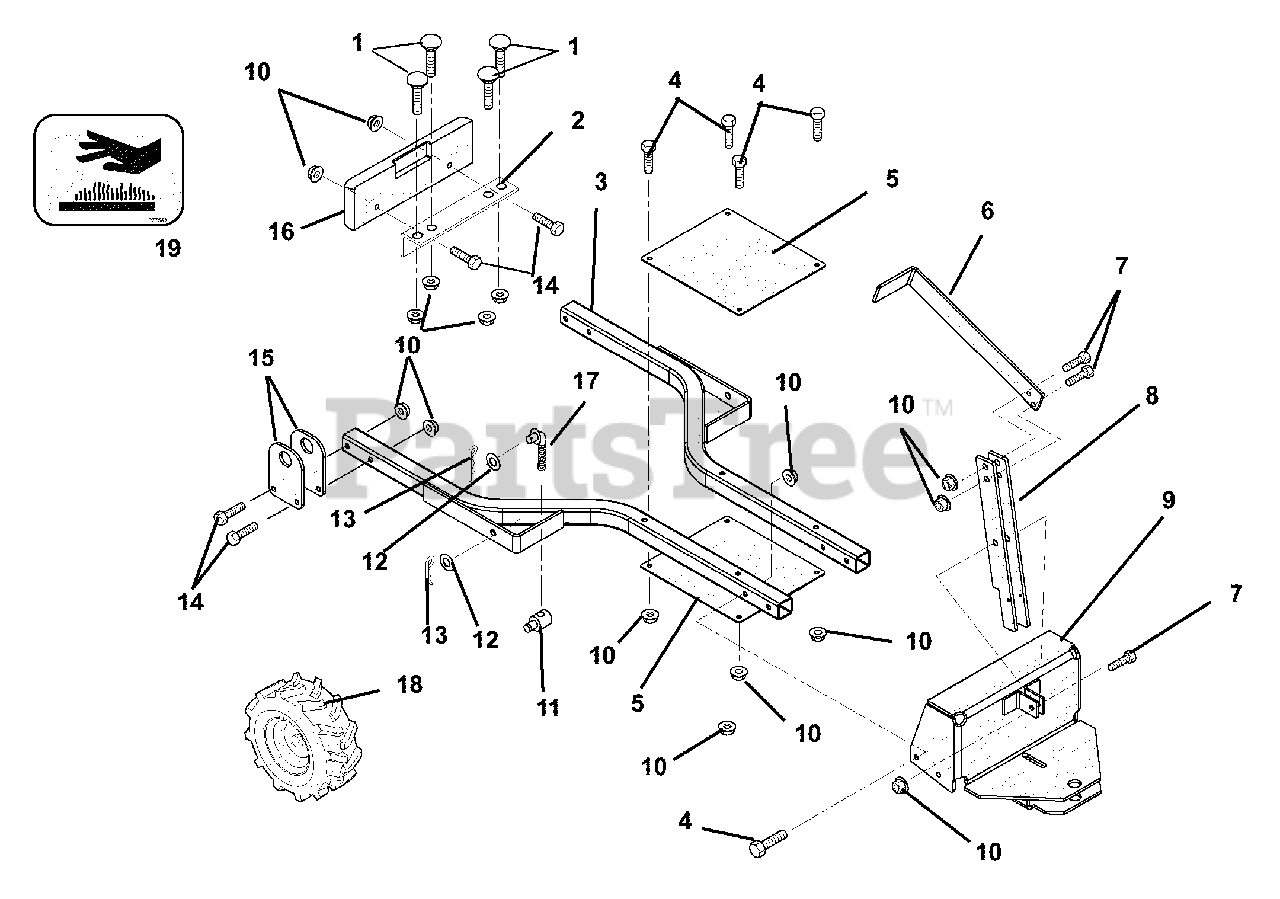

Frame Subassembly Parts Diagram

  • Title

1

Gravely 06224400

Bolt-Round Head Square Neck, .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 01601651

Angle Bracket

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 00181751

Sub-Frame Tube

$

$

Not available

4

Gravely 05962900

Hex Bolt, .38-16 x 2.25 Gr 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 00260351

Sub-Frame Plate

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 00181651

Pedal

$77.99

$

Usually ships in 4-12 days

0

7

Gravely 05958000

Hex Bolt, .38-16 x 1.25 Gr 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

8

Gravely 00181551

Latch

$50.99

$

Usually ships in 4-12 days

0

9

Gravely 00181451

Blade Mount Yoke

$258.99

$

Usually ships in 4-12 days

0

10

Gravely 06542000

Top Locking Flange Nut, .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01590400

Trunnion

$45.99

$

In Stock, Qty 8

0

12

Gravely 06430200

Flat Steel Washer, .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06714900

External Hair Pin - #16 Black Zinc

$0.99

$

In Stock, Qty 18

0

14

Gravely 05958400

Hex Bolt, .38-16 x 2.5 Gr 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00181851

Pivot Bracket

$

$

Not available

16

Gravely 00172000

Weight, Cast Iron

$284.99

$

Usually ships in 4-12 days

0

17

Gravely 02778100

Lift Link

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 00259000

Tire/Wheel Assembly, 18 x 16.5

$

$

Not available

19

Gravely 07754100

Decal, Hot Surface

$3.49

$

In Stock, only 3 left!

0
