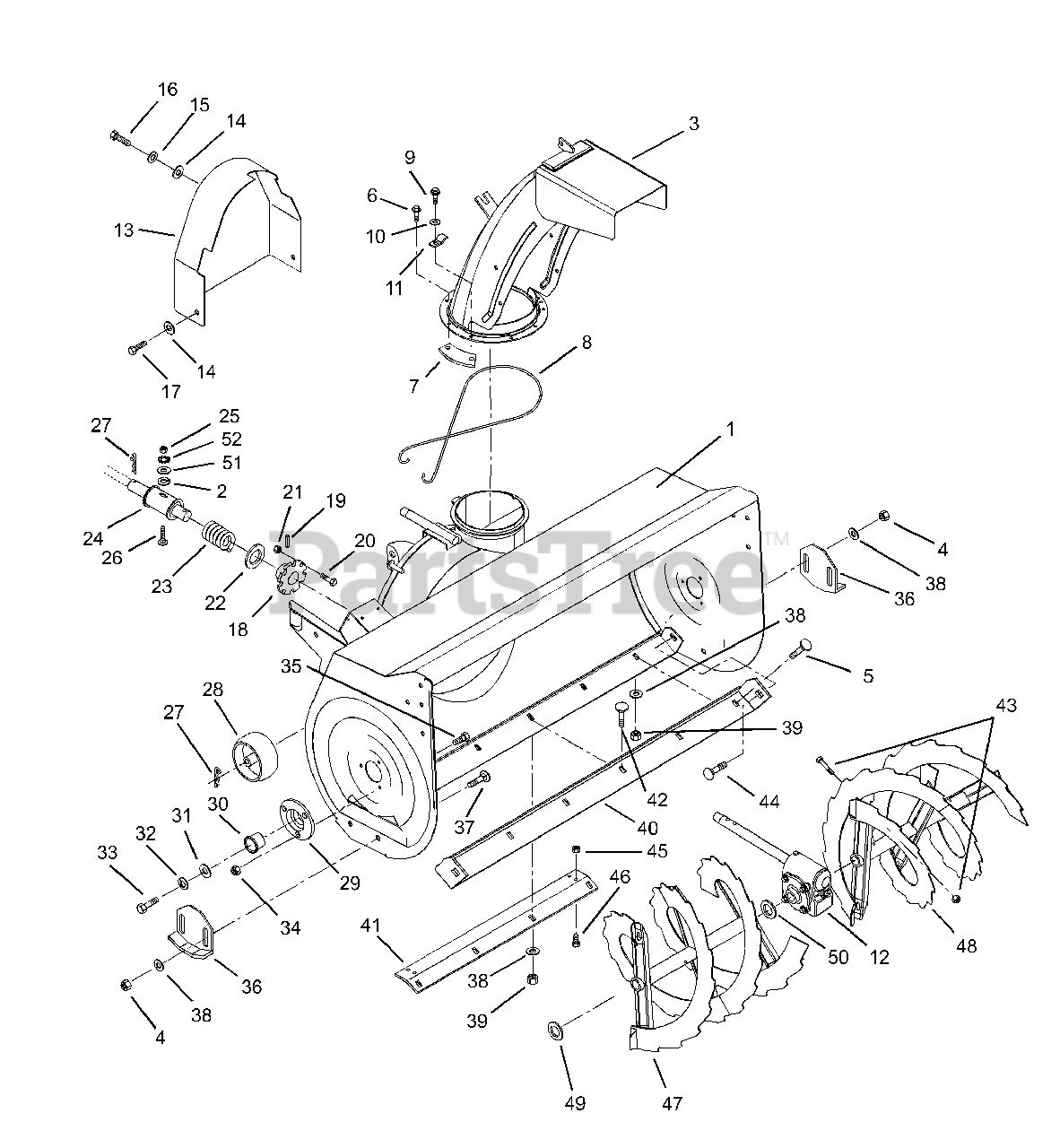

834035 - Gravely 40" Sno-Thro for GEM Tractor (SN: 000101 & Above) Housing & Auger Parts Diagram

40" Sno-Thro for GEM Tractor

Housing & Auger Parts Diagram

  • Title

1

Gravely 53407500

40" Sno-Thro Housing

Note: (Model 834035)

$

$

Not available

1

Gravely 53607500

36" Sno-Thro Housing

Note: (Model 836011)

$

$

Not available

2

Gravely 06310600

Washer-Lock .31 x .062

$5.99

$

In Stock, only 1 left!

0

3

Gravely 53606800

Chute, Discharge w/ Cap & Decal

$

$

Not available

4

Gravely 06529600

Nut-Locking .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 07411300

Screw-Tapping 12-24 x .50 Hex Washer Head

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 049103

Chute Clamp
(Superseded to 02463500)

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 03625700

Cable

$199.99

$

Usually ships in 4-12 days

0

9

Gravely 07411400

Screw-Tapping 12-24 x .75 Hex Washer Head
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06409200

Washer-Flat-Steel .188 x .438 x .049

$

$

Not available

11

Gravely 036897

Cable Clamp
(Superseded to 06900300)

$

$

Not available

12

Gravely 037979

Blower Gearcase Assembly
(Superseded to 53502200)

$

$

Not available

13

Gravely 03625600

Belt Guard

$47.99

$

Usually ships in 4-12 days

0

14

Gravely 06435700

Washer-Flat-Steel .382 x .812 x .062
(Superseded to 06401023)

$1.49

$

In Stock, Qty 16

0

15

Gravely 06308600

Washer-Lock .312 x .097
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

17

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 036890

Disc Assembly
(Superseded to 03028700)

$54.99

$

Usually ships in 4-12 days

0

19

Gravely 05801600

Pin-Roll .188 x 1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 036885

Screw-Socket Head 10-24 x .38
(Superseded to 05915600)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 06530600

Nut-Locking Dual Face 10-24

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 036891

Spring-Compression .054 x .75 x 1.6
(Superseded to 08316900)

$

$

Not available

24

Gravely 03028651

Spool
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

25

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

26

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

In Stock, only 2 left!

0

28

Gravely 050825

Roller
(Superseded to 02745400)

$14.99

$

In Stock, Qty 16

0

29

Gravely 02437400

Bearing Support
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

30

Gravely 036872

Bushing-Flange 1.000 x 1.12 x .62 x 1.50
(Superseded to 05503500)

$12.99

$

In Stock, Qty 18

0

31

Gravely 06436400

Washer-Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 14

0

32

Gravely 06306600

Washer-Lock .500 x .151 Heavy
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

33

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

34

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

35

Gravely 07028600

Bolt-Serrated Neck Slotted .25-20 x .50

$3.99

$

In Stock, Qty 20+

0

36

Gravely 03075559

Runner-Skid Shoe

$37.99

$

In Stock, Qty 6

0

37

Gravely 06211800

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

38

Gravely 06436200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 03436351

Scraper Blade

Note: (Model 834035)

$

$

Not available

40

Gravely 03519251

Scraper Blade
(Superseded to 03519243)

Note: (Model 836011)

$

$

Not available

41

Gravely 03438151

Blade Brace
(Superseded to 03438143)

Note: (Model 834035)

$

$

Not available

41

Gravely 03519351

Blade Brace
(Superseded to 03519343)

Note: (Model 836011)

$

$

Not available

42

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

43

Gravely 051663

Shear Bolt Service Assembly
(Superseded to 51001500)

$4.99

$

In Stock, Qty 8

0

44

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.0 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

45

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

47

Gravely 53407800

Rake-Right Hand

Note: (Model 834035)

$

$

Not available

47

Gravely 52412600

Rake-Right Hand

Note: (Model 836011)

$

$

Not available

48

Gravely 02474200

Rake-Left Hand

Note: (Model 834035)

$

$

Not available

48

Gravely 53407900

Rake-Left Hand

Note: (Model 836011)

$

$

Not available

49

Gravely 52412500

Washer-Flat-Steel 1.010 x 1.505 x .062

$

$

Not available

50

Gravely 036863

Seal 1.625 x 2.125 x .250
(Superseded to 05607000)

$9.99

$

In Stock, only 3 left!

0

51

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

52

Gravely 06306800

Washer-Locking-External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

In Stock, only 2 left!

0
