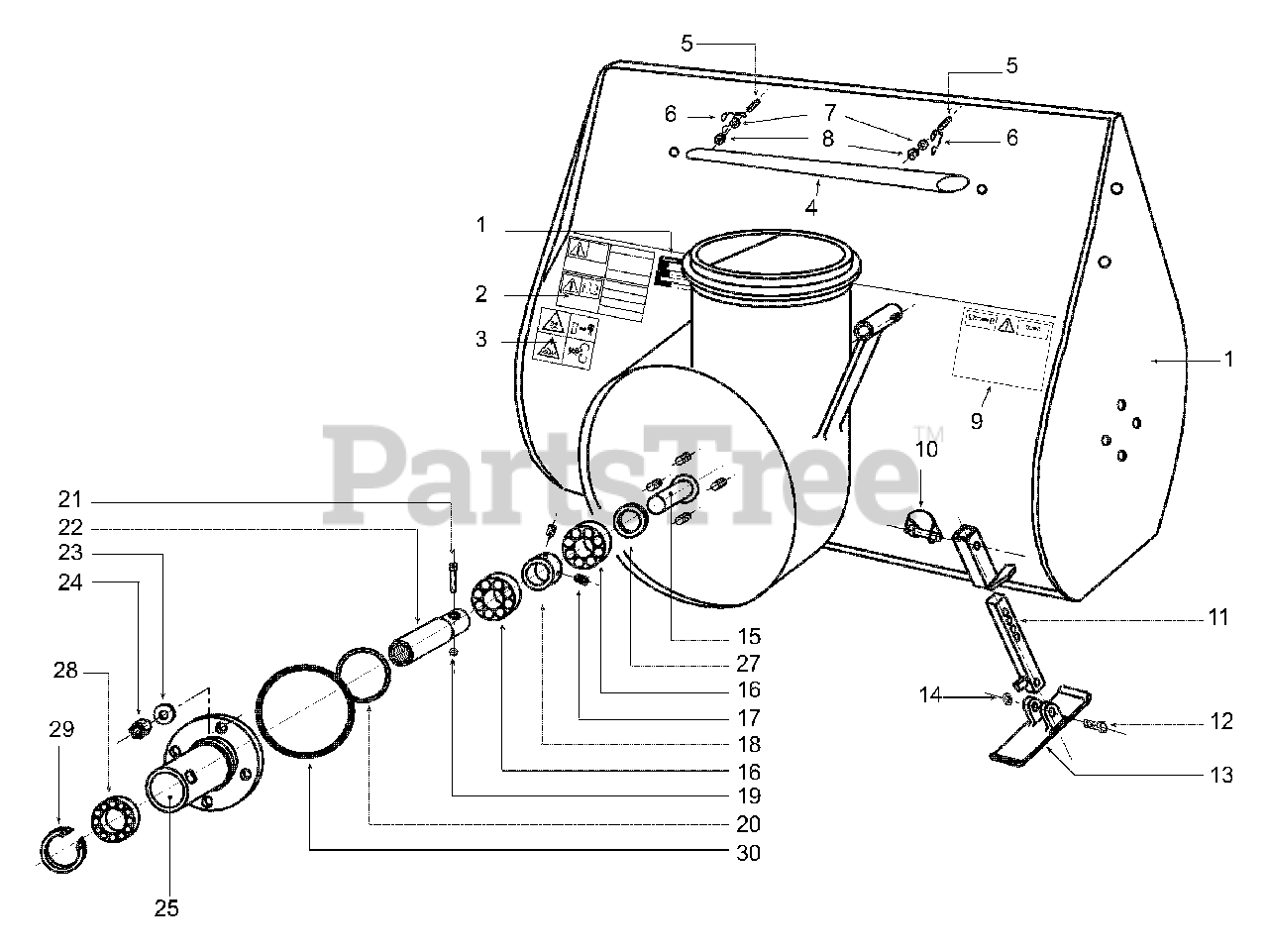

885042 - Gravely Rapid Sno-Thro Attachment Auger Housing And Drive Parts Diagram

Rapid Sno-Thro Attachment

Auger Housing And Drive Parts Diagram

  • Title

1

Gravely 00818100

Label - "Machine Data"

$

$

Not available

2

Gravely 00818200

Label - "Instruction Manual And Danger"

$

$

Not available

3

Gravely 00818300

Label - "Safety Distance And Rotating Parts"

$

$

Not available

4

Gravely 00818400

Stick For Clogging Removing

$

$

Not available

5

Gravely 00818500

Hexagonal Head Screw M6 x 15 - Din 933

$

$

Not available

6

Gravely 00818600

Spring For Stick Clamping

$

$

Not available

7

Gravely 00818700

Washer 5.5 x 10 x 1 - Din 125a

$

$

Not available

8

Gravely 00816500

Self Locking Nut M6 - Din 982

$

$

Not available

9

Gravely 00818800

Label - "Safety Bolt Replacement"

$

$

Not available

10

Gravely 00818900

Fast Pin Ø8 x 45

$

$

Not available

11

Gravely 00819000

Adjustable Rod For Slide

$

$

Not available

12

Gravely 00819100

Hexagonal Head Screw M10 x 45 - Din 931

$

$

Not available

13

Gravely 08696300

Slide

$

$

Not available

14

Gravely 00819200

Self Locking Nut M10 - Din 982
(Superseded to 08628600)

$

$

Not available

15

Gravely 00819300

Pinion

$

$

Not available

16

Gravely 00819400

Bearing 6305 2rs - 25 x 62 x 17

$

$

Not available

17

Gravely 00819500

Grub - Screw M8 x 10 - Din 914-45h

$

$

Not available

18

Gravely 00819600

Fastening Ring 25 x 37 x 11

$

$

Not available

19

Gravely 00819700

Nut M8 - Din 934

$

$

Not available

20

Gravely 00819800

O-ring 162 - 59 x 3.53

$

$

Not available

21

Gravely 00869000

Safety Bolt For Coupling Box

$

$

Not available

22

Gravely 00819900

Coupling Box (Power Take Off)

Note: (Power Take Off)

$

$

Not available

23

Gravely 00820000

Washer 13 x 24 x 2.5 Din 125a

$

$

Not available

24

Gravely 00820100

Self Locking Nut M10 - Din 982

$

$

Not available

25

Gravely 00820200

Flange (4 Holes Ø12)

Note: (4 Holes Ø12)

$

$

Not available

26

Gravely 00820300

Label - "Rapid"

$

$

Not available

27

Gravely 00820400

Distance Ring Ø 25.5 x 35 x 2.5

$

$

Not available

28

Gravely 00820500

Bearing 6007 2rs - 35 x 62 x 14

$

$

Not available

29

Gravely 00820600

Snap Ring Ø 62 - Din 472-1

$

$

Not available

30

Gravely 00820700

O-Ring 4550

$

$

Not available
