888047 - Gravely 36" Fab Deck for Pro-Walk 150 Mower (SN: 003015 - 009999) Mower Frame Parts Diagram

36" Fab Deck for Pro-Walk 150 Mower

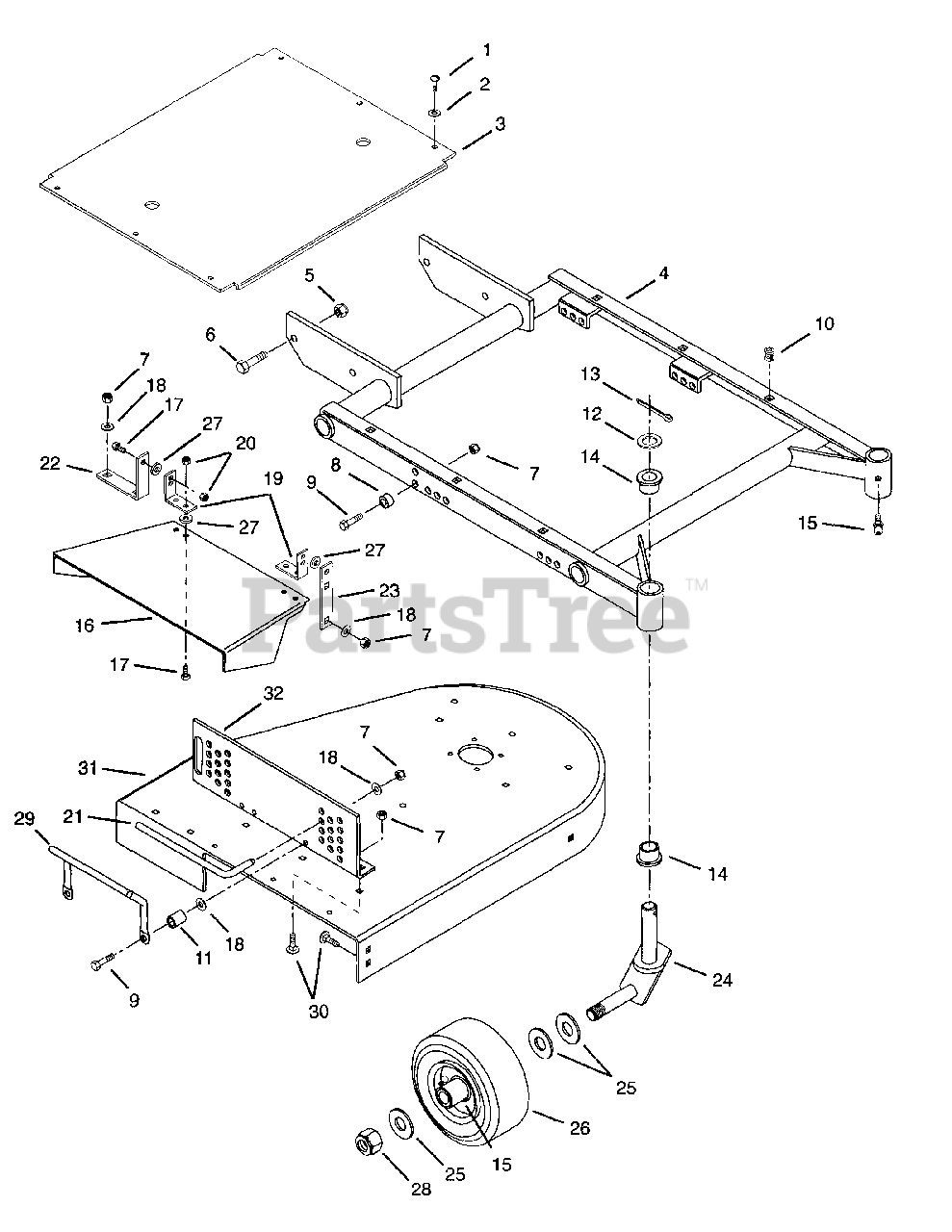

Mower Frame Parts Diagram

  • Title
1

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

2

Gravely 06437300

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$1.96

$

In Stock, Qty 20+

0

3

Gravely 08829200

Cover, Belt Pro Mower

$

$

Not available

4

Gravely 08872900

Weldment-Mower Frame 36"
(Superseded to 58804100)

$444.50

$

Usually ships in 4-12 days

0

5

Gravely 06535300

Nut-Locking-Center .61-11

$2.46

$

In Stock, only 2 left!

0

6

Gravely 05968700

Bolt-Hex .62-11 x 1.50

$3.58

$

Usually ships in 4-12 days

0

7

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.24

$

In Stock, Qty 17

0

8

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$2.99

$

In Stock, only 2 left!

0

10

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$3.63

$

In Stock, Qty 12

0

11

Gravely 043922

Bushing
(Superseded to 08553700)

$5.87

$

In Stock, Qty 14

0

12

Gravely 06435300

Washer-Hardened-Thrust 1.002 x 1.552 x .030

$3.63

$

In Stock, Qty 15

0

13

Gravely 103409

Pin-Cotter .188 x 1.50
(Superseded to 06712800)

$1.68

$

In Stock, Qty 5

0

14

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$6.65

$

In Stock, Qty 20+

0

15

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 038952

Chute-Discharge
(Superseded to 04908453)

$44.66

$

Usually ships in 4-12 days

0

17

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.96

$

In Stock, Qty 20+

0

18

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$2.52

$

In Stock, Qty 18

0

19

Gravely 08881600

Bracket, Discharge Chute

$22.14

$

In Stock, only 1 left!

0

20

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$2.24

$

In Stock, Qty 15

0

21

Gravely 038514

Pin-Mower Locking
(Superseded to 08875900)

$14.81

$

In Stock, Qty 14

0

22

Gravely 047163

Bracket
(Superseded to 08829100)

Note: (Model 047)

$

$

Not available

22

Gravely 08809600

Bracket

Note: (Model 301)

$20.89

$

In Stock, only 1 left!

0

23

Gravely 08809600

Bracket

Note: (Model 047)

$20.89

$

In Stock, only 1 left!

0

23

Gravely 038949

Bracket
(Superseded to 08809600)

Note: (Model 301)

$20.89

$

In Stock, only 1 left!

0

24

Gravely 08954600

Weldment-Caster Fork
(Superseded to 08954653)

$191.79

$

Usually ships in 4-12 days

0

25

Gravely 06439000

Washer-Flat-Steel .812 x 1.469 x .134
(Superseded to 06401140)

$2.52

$

In Stock, Qty 19

0

26

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$69.26

$

In Stock, only 3 left!

0

27

Gravely 06432800

Washer-Flat-Rubber .375 x 1.50 x .060

$3.58

$

Usually ships in 4-12 days

0

28

Gravely 06540800

Nut-Locking-Nylon .75-10

$5.53

$

In Stock, Qty 6

0

29

Gravely 044507

Handle
(Superseded to 08878000)

$51.60

$

In Stock, only 1 left!

0

30

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.80

$

In Stock, only 3 left!

0

31

Gravely 047135

Weldment-36 inch Deck
(Superseded to 08828500)

$

$

Not available

32

Gravely 049343

Bracket-Mower Side Support - Left Hand
(Superseded to 08836200)

$94.64

$

Usually ships in 4-12 days

0

32

Gravely 049342

Bracket-Mower Side Support - Right Hand
(Superseded to 08836100)

$94.64

$

Usually ships in 4-12 days

0
