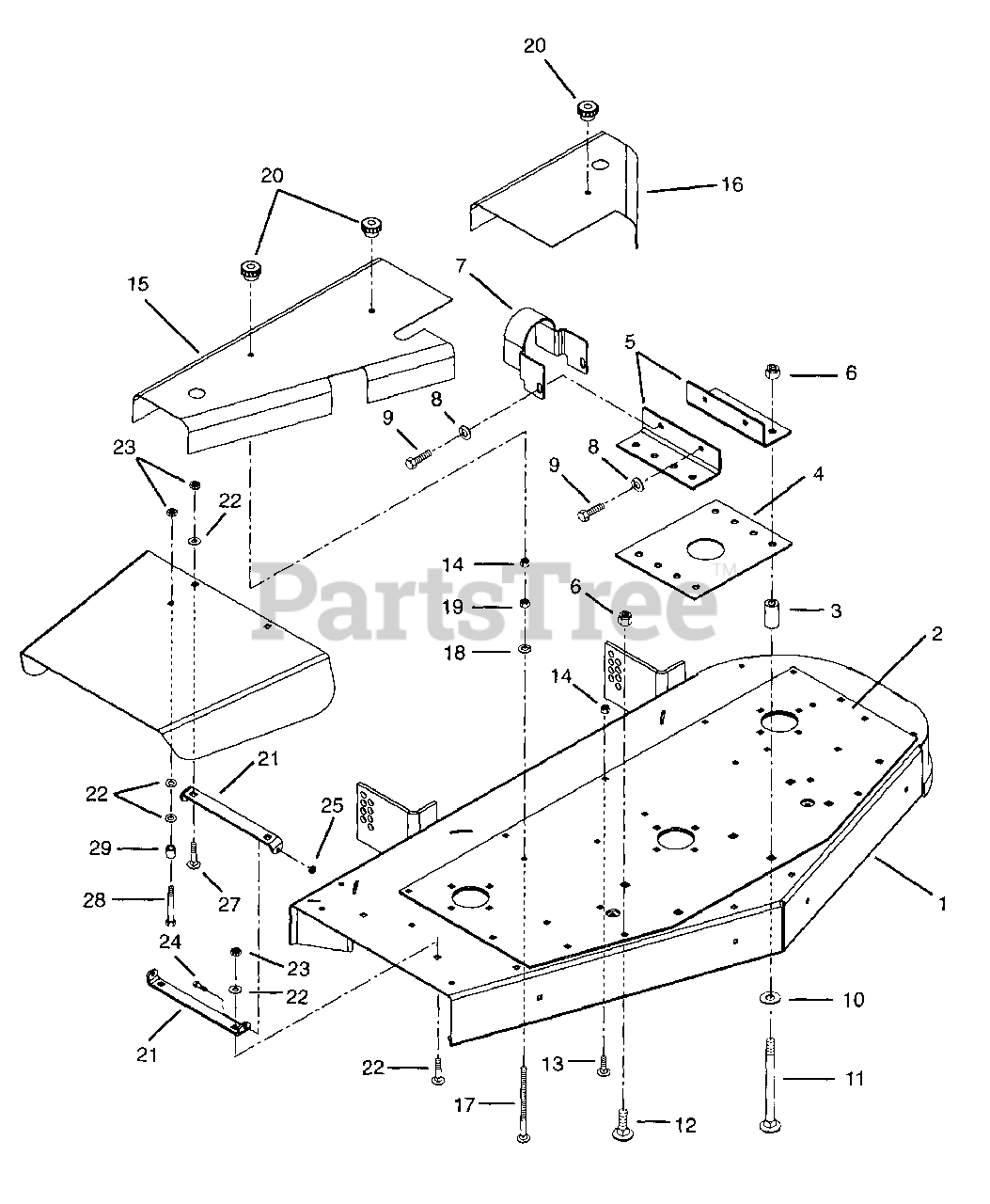

890001 - Gravely 50" Deck for Pro-Master 400 Mower (SN: 000101 & Above) MOWER DECK Parts Diagram

50" Deck for Pro-Master 400 Mower

MOWER DECK Parts Diagram

  • Title

1

Gravely 09056200

Weldment, 50" Mower Deck

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 09056300

Plate, 50" Deck Reinforcing

$

$

Not available

3

Gravely 044905

Spacer .562 x 1.00 x 2.00
(Superseded to 08981000)

$27.99

$

Usually ships in 4-12 days

0

4

Gravely 09062900

Plate, Gearbox Support

$13.99

$

Usually ships in 4-12 days

0

5

Gravely 09062800

Bracket, Gearbox

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 09062600

Shield, U-Joint

$

$

Not available

8

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

9

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

10

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05945700

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

12

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 126211

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 09056400

Cover, Mower Belt Right Hand

$

$

Not available

16

Gravely 09056500

Cover, Mower Belt Left Hand

$

$

Not available

17

Gravely 06205200

Bolt-Round Head Square Neck.31-18 x 3.50
(Superseded to 06200411)

$5.99

$

In Stock, only 2 left!

0

18

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

20

Gravely 041674

Knob
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

21

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

22

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

24

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

26

Gravely 052805

Shield, Safety External 50" Mower
(Superseded to 08850600)

$

$

Not available

27

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

28

Gravely 180216

Bolt-Hex .38-16 x 1.50

$

$

Not available

29

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0
