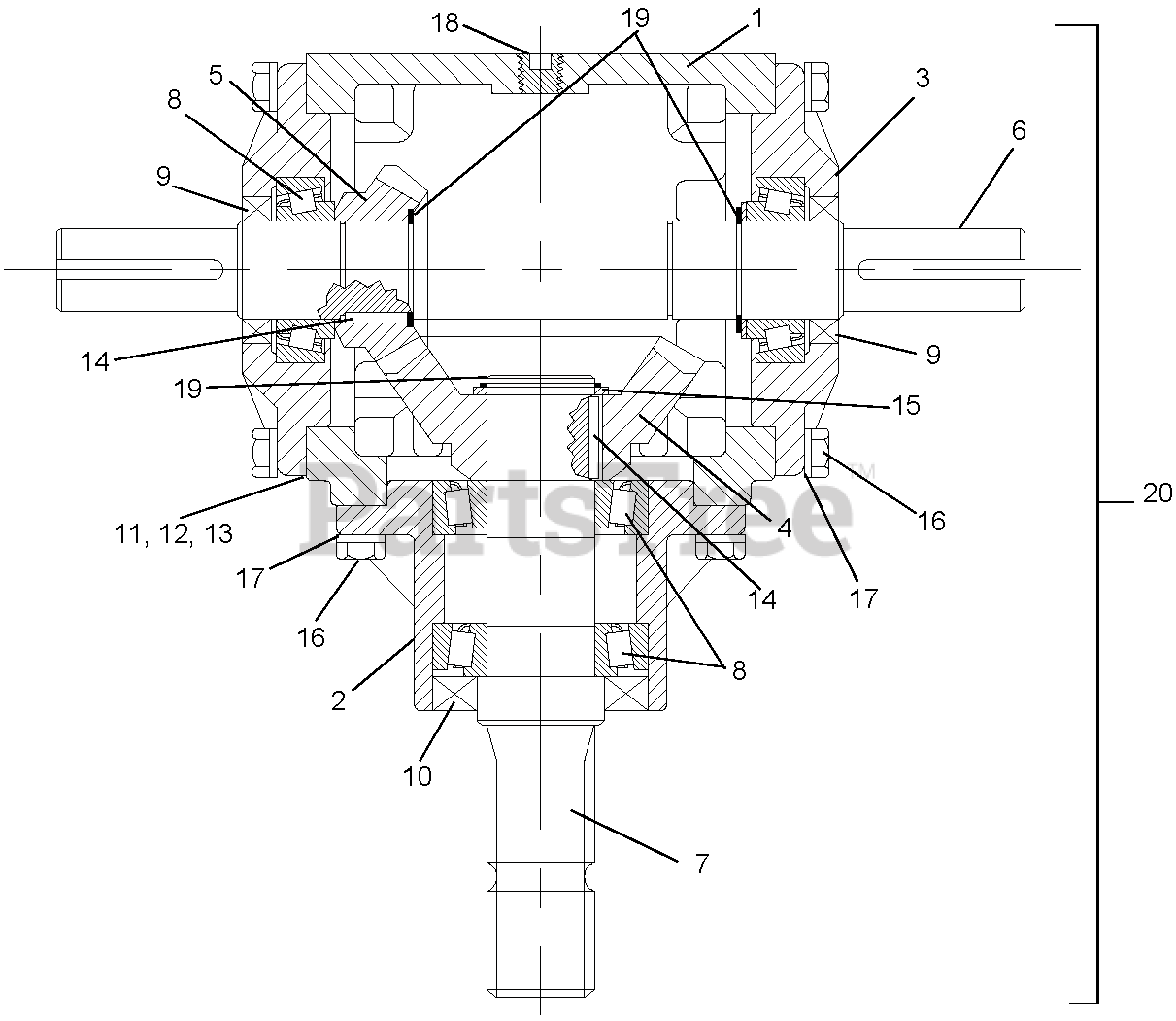

895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Gearbox Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

Gearbox Assembly Parts Diagram

  • Title

1

Gravely 02568800

HOUSING 400 SERIES 50022476

$

$

Not available

2

Gravely 02568900

CAP CANTILEVERED 50022477

$

$

Not available

3

Gravely 02569000

CAP THRU 50022478

$

$

Not available

4

Gravely 02569100

GEAR 24T (1.5) 50022479

$

$

Not available

5

Gravely 02569200

PINION 16T (1.5) 50022480

$

$

Not available

6

Gravely 02569300

SHAFT OUTPUT 1 1/8I 50022481

$

$

Not available

7

Gravely 02569400

SHAFT INPUT 1 3/8IN 50022482

$

$

Not available

8

Gravely 05400630

BEARING 30207 (5002231 70797

$

$

Not available

9

Gravely 05600305

SEAL THRU CAP (TRIP 50022485

$

$

Not available

10

Gravely 05600306

SEAL CANT. CAP (TRI 50022486

$

$

Not available

11

Gravely 05600307

GASKET CAP 0.1 50022487

$

$

Not available

12

Gravely 05600308

GASKET CAP 0.2 50022488

$

$

Not available

13

Gravely 05600309

GASKET CAP 0.3 50022489

$

$

Not available

14

Gravely 06600125

KEY SQUARE 10MM X 5 50022490

$

$

Not available

15

Gravely 06400638

SPACER 50022491

$

$

Not available

16

Gravely 05900621

HHCS 5/16-18 X 1 G5 ZP 1161010

$

$

Not available

17

Gravely 06300029

LOCKWASHER 5/16 CP PG 5/ 15808

$

$

Not available

18

Gravely 02868700

PLUG 1/2 SOCKET HD. PI 78719

$

$

Not available

19

Gravely 05700102

RETAINING RING 35MM 50022493

$

$

Not available

20

Gravely 02295000

GEARBOX ASSEMBLY 1 50019729

$

$

Not available
