895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Hydraulic System Parts Diagram
Tow-Behind Vertical Mower Attachment

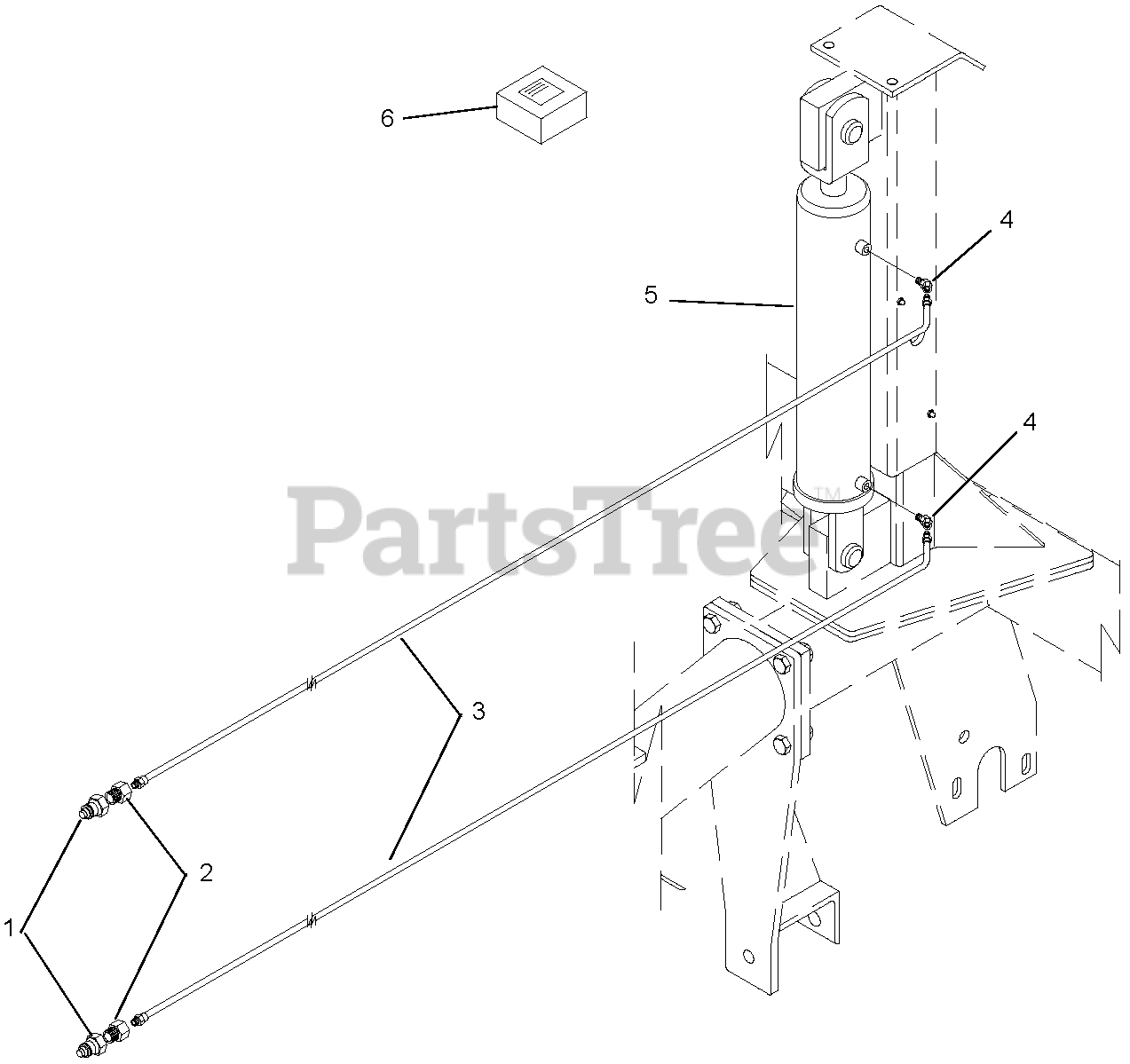

Hydraulic System Parts Diagram
Gravely 02542000
COUPLER 1/2 FNPT QD 50022092
$
$
Not available
Gravely 07001003
ADAPTER 1/2 MNPT X 50022090
$
$
Not available
Gravely 07001004
HOSE ASSEMBLY 120IN 50022091
$
$
Not available
Gravely 07001006
ADAPTER 1/4 FNPT X 50022094
$
$
Not available
Gravely 02541900
CYLINDER 2.50 BORE 50022089
$
$
Not available
Gravely 05600310
SEAL KIT 50022590
$
$
Not available
