895407 (TVM-3077) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Primary Guards Parts Diagram

Tow-Behind Vertical Mower Attachment

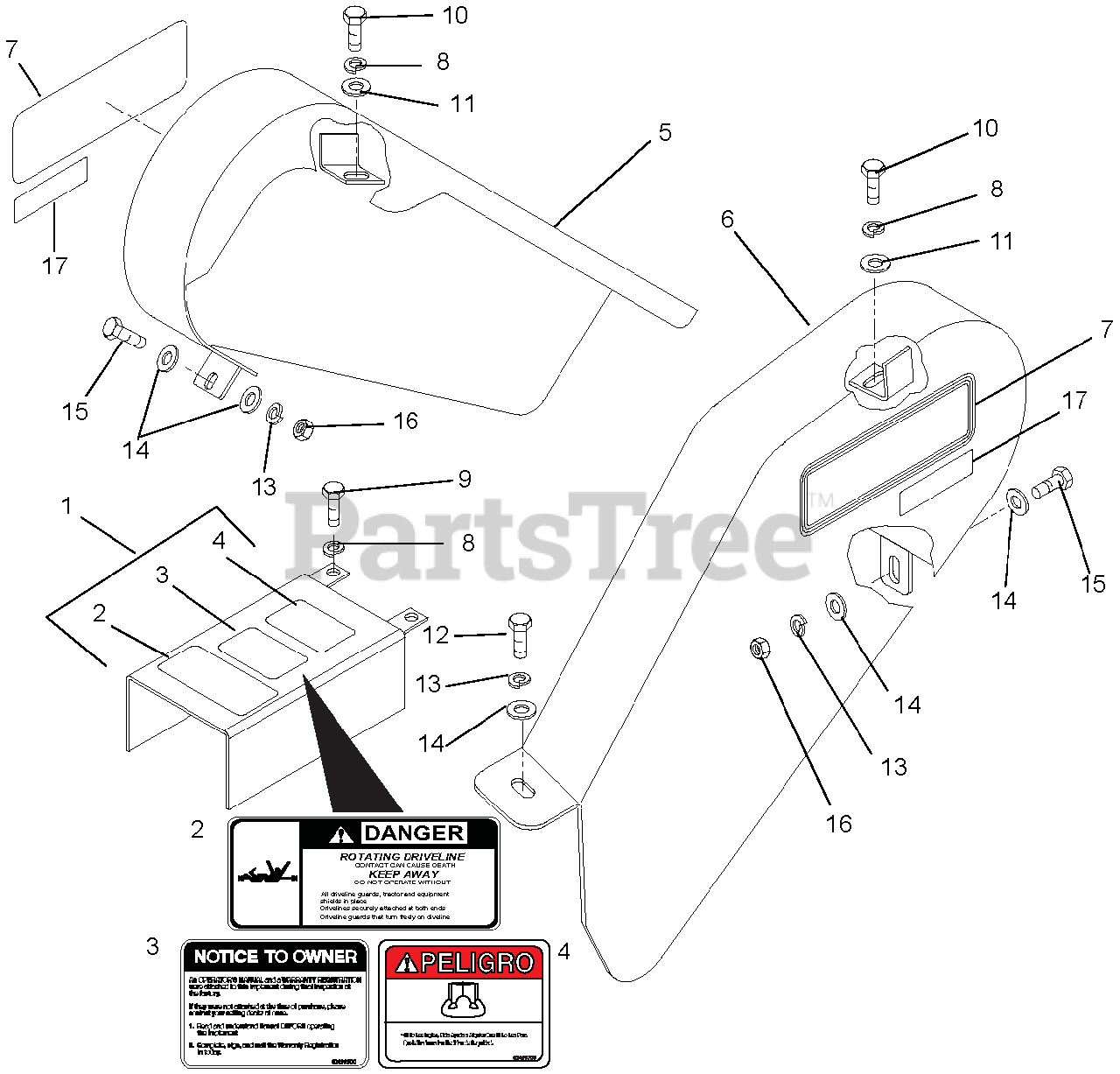

Primary Guards Parts Diagram

  • Title

1

Gravely 02548200

GUARD ASSEMBLY DRIVE 50022175

$

$

Not available

2

Gravely 02499700

DANGER DECAL 50022072

$

$

Not available

3

Gravely 02499900

DECAL NOTICE TO OWN 50022074

$

$

Not available

4

Gravely 02394700

DANGER DECAL 50022065

$

$

Not available

5

Gravely 02377500

DRIVE GUARD WELDMENT 50019968

$

$

Not available

6

Gravely 02377800

DRIVE GUARD WELDMENT 50019971

$

$

Not available

7

Gravely 02285400

MODEL DECAL TVM-3077

$

$

Not available

8

Gravely 06300028

LOCKWASHER 1/2 CP PG 1/2 15806

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05901017

HEX HD CPSC 1/2-13 X 3/4 44588

$

$

Not available

10

Gravely 05900805

HHCS 1/2-13 X 1 G5 20054

$

$

Not available

11

Gravely 06400416

FLATWASHER 1/2 SAE ZP 15829

$

$

Not available

12

Gravely 05900731

HEX HD CPSC 3/8-16 X 3/4 19100

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06300030

LOCKWASHER 3/8 CP PG 3/8 15812

$

$

Not available

14

Gravely 06400417

FLATWASHER 3/8 SAE ZP 15830

$

$

Not available

15

Gravely 05900801

HHCS 3/8-16 X 1 G5 20034
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06500610

HEX NUT 3/8-16 CP 8151200

$

$

Not available

17

Gravely 02889200

GRAVELY TURF DECAL 10" X 3"

$

$

Not available
