895408 (TVM-5130) - Gravely Tow-Behind Vertical Mower Attachment (SN: 000101 & Above) Rear Jackshaft Assembly Parts Diagram

Tow-Behind Vertical Mower Attachment

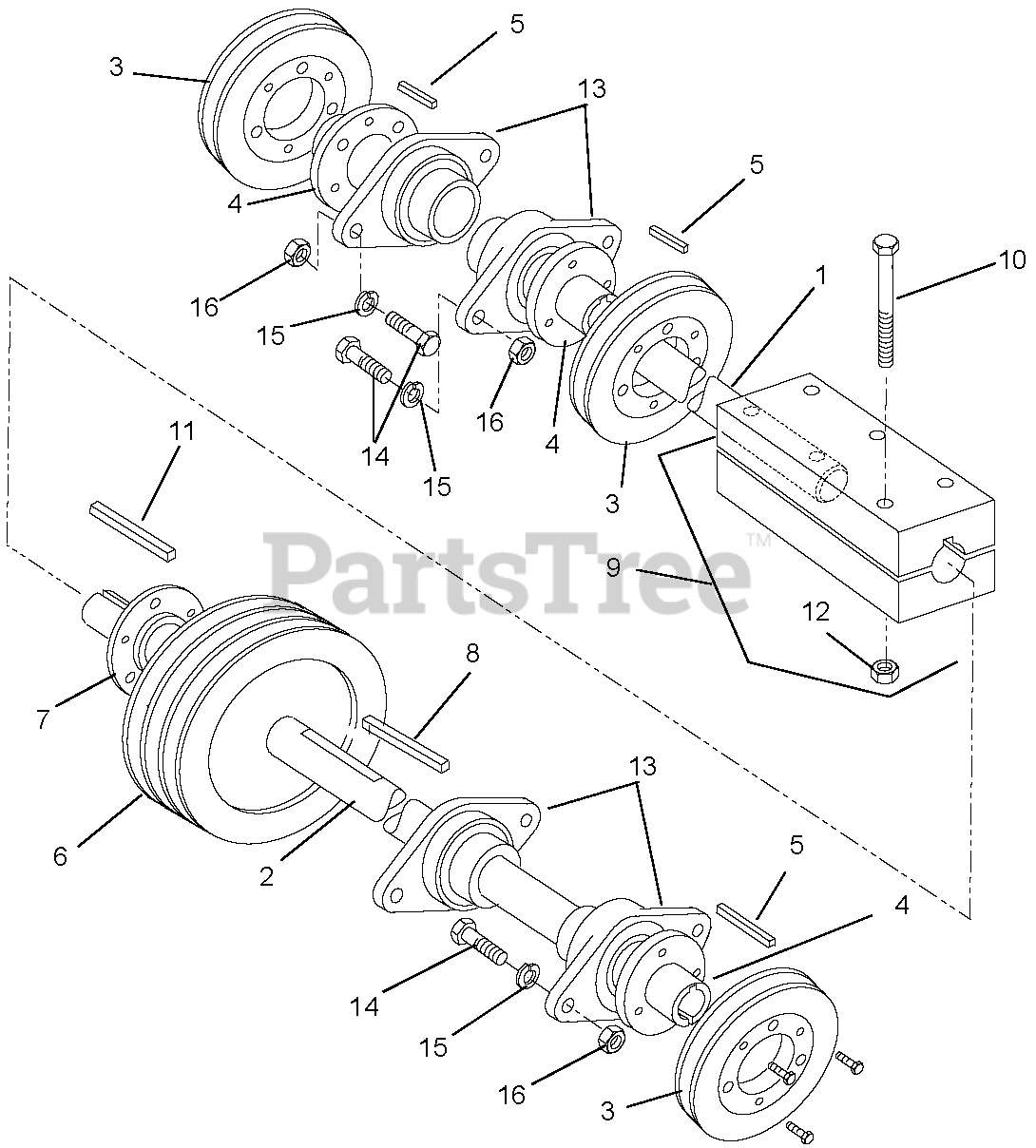

Rear Jackshaft Assembly Parts Diagram

  • Title

1

Gravely 02559200

Jackshaft, Right Rear

$

$

Not available

2

Gravely 02367200

Jackshaft, Left Rear

$

$

Not available

3

Gravely 07300329

Pulley, Taper Lock

$93.99

$

Usually ships in 4-12 days

0

4

Gravely 05500629

Bushing, Split Tapered

$62.99

$

Usually ships in 4-12 days

0

5

Gravely 06600207

Key, Square .25 x .25 x 1

$

$

Not available

6

Gravely 07300340

Pulley, 3-Belt 6.6 PD

$

$

Not available

7

Gravely 05500635

Bushing, Split Tapered

$

$

Not available

8

Gravely 06600121

Key .25 x .25 x 3

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02380300

Assembly, Jackshaft Coupling

$

$

Not available

10

Gravely 05900817

Cap Screw, Hex Head .312-18 x 2.5

$

$

Not available

11

Gravely 06600122

Key .25 x .25 x 5

$

$

Not available

12

Gravely 06500512

Nut, Nylock Hex .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 05400424

Flange, Bearing 2-Bolt

$

$

Not available

14

Gravely 05901022

Cap Screw, Hex Head .437 x 1.25

$

$

Not available

15

Gravely 06300031

Washer, Lock .437

$

$

Not available

16

Gravely 06500611

Nut, Hex .437

$

$

Not available
