895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Input Driveshaft Parts Diagram

Tow-Behind Mulching Mower Attachment

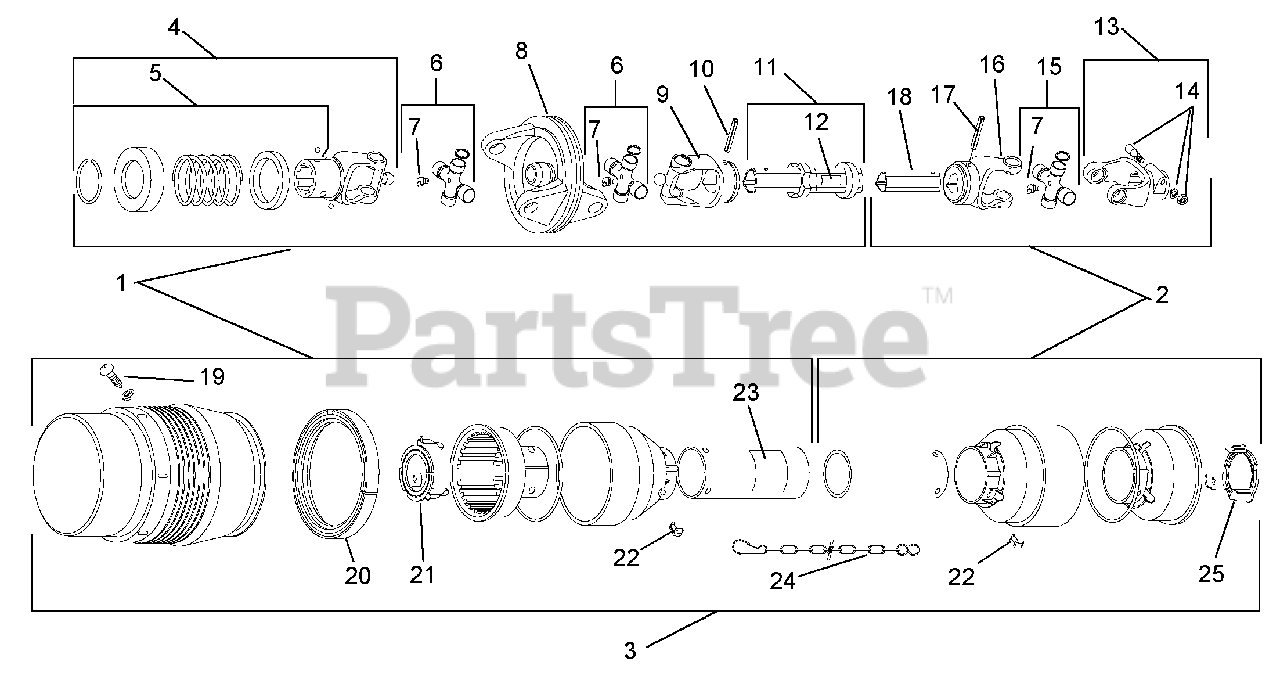

Input Driveshaft Parts Diagram

  • Title

1

Gravely 02860200

Shaft Assembly, PTO Tractor Half

$

$

Not available

2

Gravely 02860300

Shaft, Male Half With Shielding

$

$

Not available

3

Gravely 02860100

Shield Assembly, Complete

$

$

Not available

4

Gravely 02241800

Collar Yoke, Complete

$

$

Not available

5

Gravely 02241400

Kit, Ball Collar 1.38

$

$

Not available

6

Gravely 02859500

Cross Journal, Set

$

$

Not available

7

Gravely 07001406

Fitting, Grease 45-Degree 8 mm x 1 mm x .88-In.

$

$

Not available

8

Gravely 02859600

Yoke, Wide Double Angle

$

$

Not available

9

Gravely 02859700

Yoke, Outer

$

$

Not available

10

Gravely 05800118

Roll Pin, Outer Tube

$

$

Not available

11

Gravely 02859800

Outer Tube, Complete

$

$

Not available

12

Gravely 02868800

Decal, Danger

$

$

Not available

13

Gravely 02857900

Yoke, Complete

$

$

Not available

14

Gravely 06700133

Set, Tapered Pin 1.38

$

$

Not available

15

Gravely 02838600

Kit, Cross and Bearing

$

$

Not available

16

Gravely 02840200

Yoke, Inner Tube

$

$

Not available

17

Gravely 05800119

Roll Pin, Inner Tube

$

$

Not available

18

Gravely 07100634

Tube, Inner

$

$

Not available

19

Gravely 05901207

Kit, Screw and Washer

$

$

Not available

20

Gravely 05400631

Ring, Bearing

$

$

Not available

21

Gravely 02858000

Guard, Retaining Collar

$

$

Not available

22

Gravely 02885000

Fastener, Shield

$

$

Not available

23

Gravely 02868600

Decal, Danger

$

$

Not available

24

Gravely 02839000

Chain, Safety

$

$

Not available

25

Gravely 02858100

Guard, Retaining Collar

$

$

Not available

N/A

Gravely 02893000

Driveline, Complete

$

$

Not available
