895409 (MP-3132) - Gravely Tow-Behind Mulching Mower Attachment (SN: 000101 & Above) Spindle - MP Parts Diagram

Tow-Behind Mulching Mower Attachment

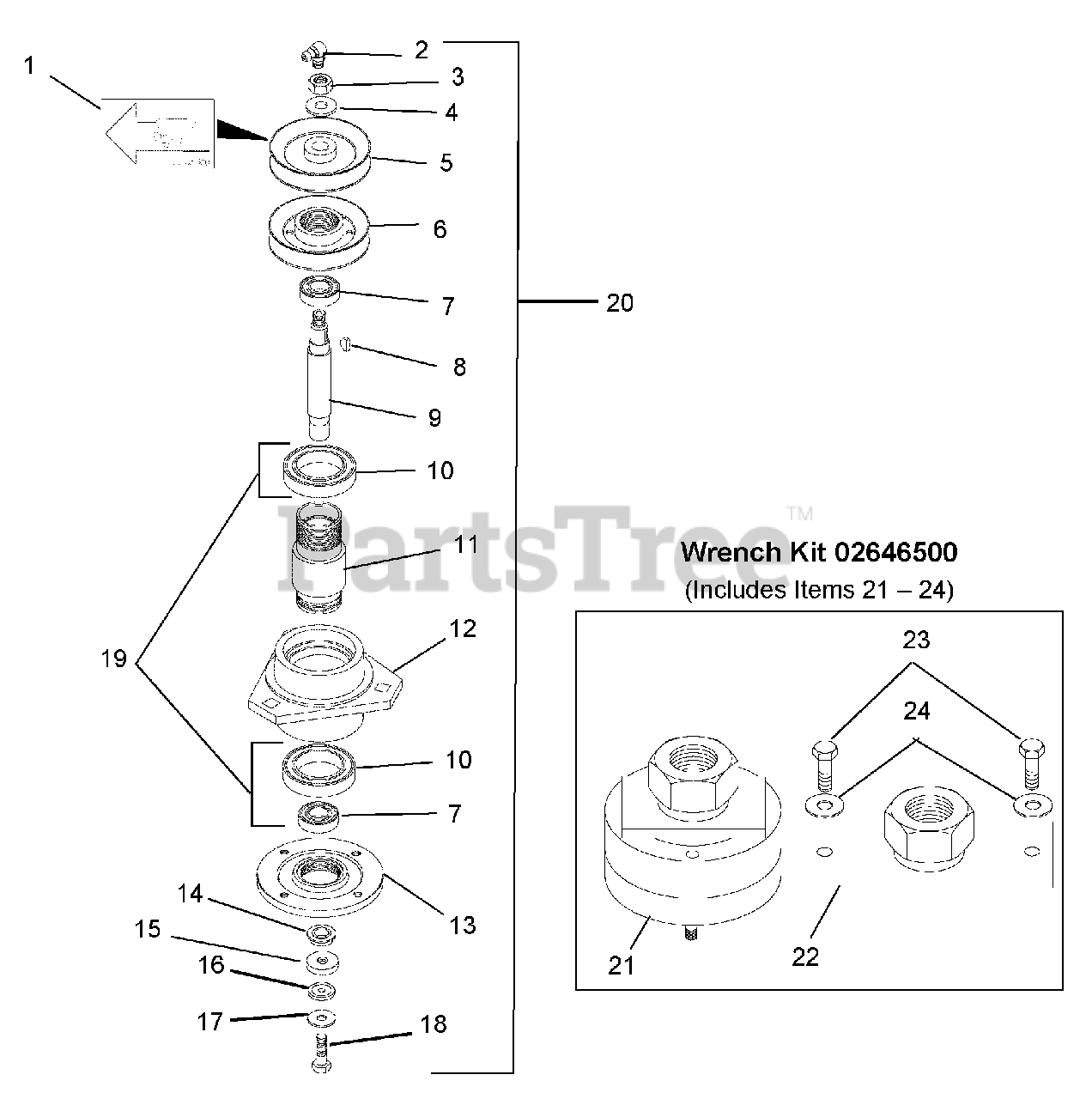

Spindle - MP Parts Diagram

  • Title

1

Gravely 02591600

Decal, Grease 25 Hours

$

$

Not available

2

Gravely 07000836

Grease Fitting

$

$

Not available

3

Gravely 02892600

Nut, Lock .625-11"

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 06400511

Washer, Washer .625"

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 02931400

Sheave, Upper 5.50 EOD

$55.99

$

Usually ships in 4-12 days

0

6

Gravely 02933800

Sheave, Lower

$170.99

$

Usually ships in 4-12 days

0

7

Gravely 05400639

Bearing, Inner Shaft 6205LCC4/2AQ12

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 02145000

Woodruff Key #606

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 02931700

Shaft, Inner

$168.99

$

Usually ships in 4-12 days

0

10

Gravely 05400702

Bearing, Outer Shaft 6012-2RS C4

$

$

Not available

11

Gravely 02933700

Shaft, Outer

$297.99

$

Usually ships in 4-12 days

0

12

Gravely 07100711

Hub, Machined Spindle

$302.36

$

Usually ships in 4-12 days

0

13

Gravely 02933600

Carrier, Blade

$153.99

$

Usually ships in 4-12 days

0

14

Gravely 05500539

Bushing, Blade

$

$

Not available

15

Gravely 06400720

Washer, Shaft

$59.48

$

Usually ships in 4-12 days

0

16

Gravely 06400724

Washer, Blade Reinforcement

$

$

Not available

17

Gravely 06400531

Washer, Heavy Duty

$

$

Not available

18

Gravely 05901004

Cap Screw, Hex Head .50-20 UNF x 1.75"

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 05400513

Bearing Kit (Includes Items 7 and 10)

Note: (Includes Items 7 and 10)

$

$

Not available

20

Gravely 02245051

Spindle Assembly, Mulching (Includes Items 1 – 18)

Note: (Includes Items 1 – 18)

$711.99

$

Usually ships in 4-12 days

0

21

Gravely 02646700

Sheave Wrench Assembly

$

$

Not available

22

Gravely 02646600

Weldment, Wrench

$

$

Not available

23

Gravely 05900931

Cap Screw, Hex Head .375-16 x 1.75"

$

$

Not available

24

Gravely 06400421

Washer, Flat .375"

$

$

Not available
