911282 - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 000589) Engine And Blade Parts Diagram
21" Walk-Behind Mower, 6hp Kawasaki

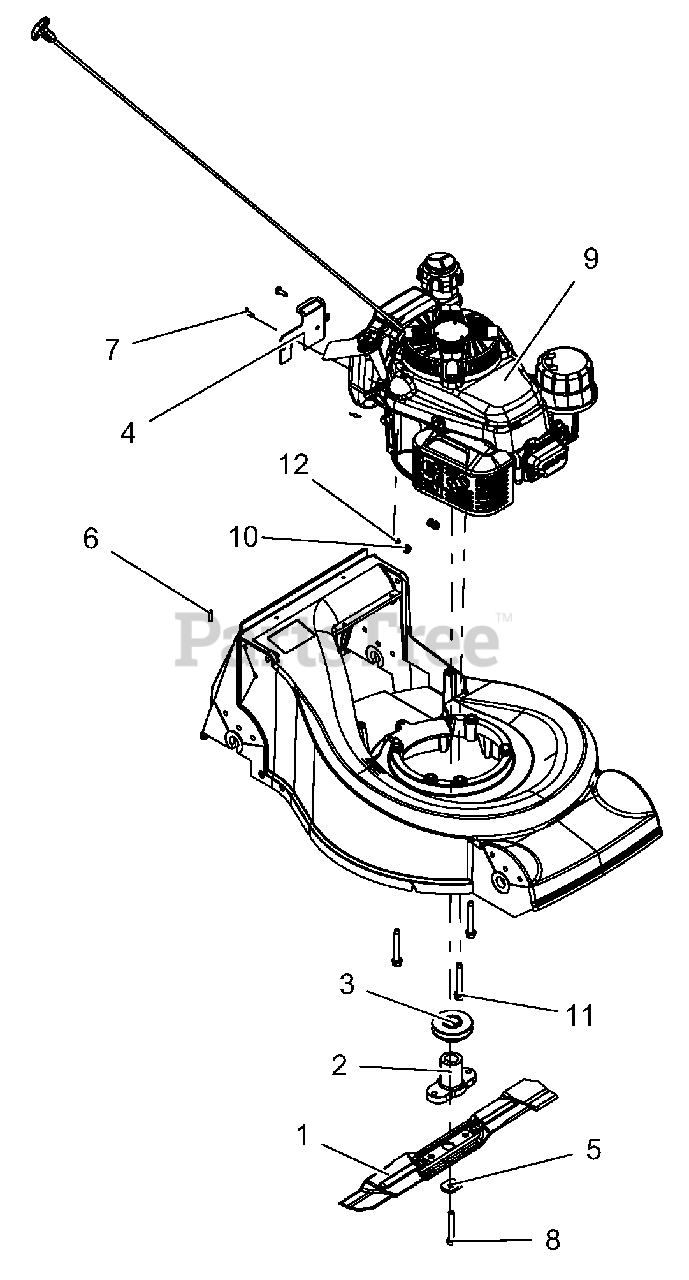

Engine And Blade Parts Diagram
Gravely 04711200
BLADE, MOWER 21" HIGH-LIFT
$27.99
$
In Stock, only 1 left!
Gravely 04666800
ADAPTOR, BLADE
$
$
Not available
Gravely 07342000
PULLEY, SP, KAWI, ZONE
$68.99
$
Usually ships in 4-12 days
Gravely 04668651
BRKT, FUEL TANK
$23.99
$
Usually ships in 4-12 days
Gravely 06300114
WSHR, SPRG
$5.99
$
Usually ships in 4-12 days
Gravely 06605500
KEY-SQ .250X.250X.750
$2.99
$
In Stock, only 1 left!
$0.99
$
In Stock, Qty 12
Gravely 05900029
BLT-HEX .38-24X2.5 GR8 YWZC
$3.99
$
Usually ships in 4-12 days
Gravely 08200933
ENGINE, KAWASAKI CARB
$
$
Not available
$0.99
$
In Stock, Qty 13
Gravely 07416100
SCR-TAP.375-16X2.75 HWH TR YZ
$3.49
$
Usually ships in 4-12 days
Gravely 06442300
WSHR-FL-STL.250X.562X.049YWZC
$1.99
$
In Stock, only 2 left!
