915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000620 & Above) Hydrostatic Transaxle - Right Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

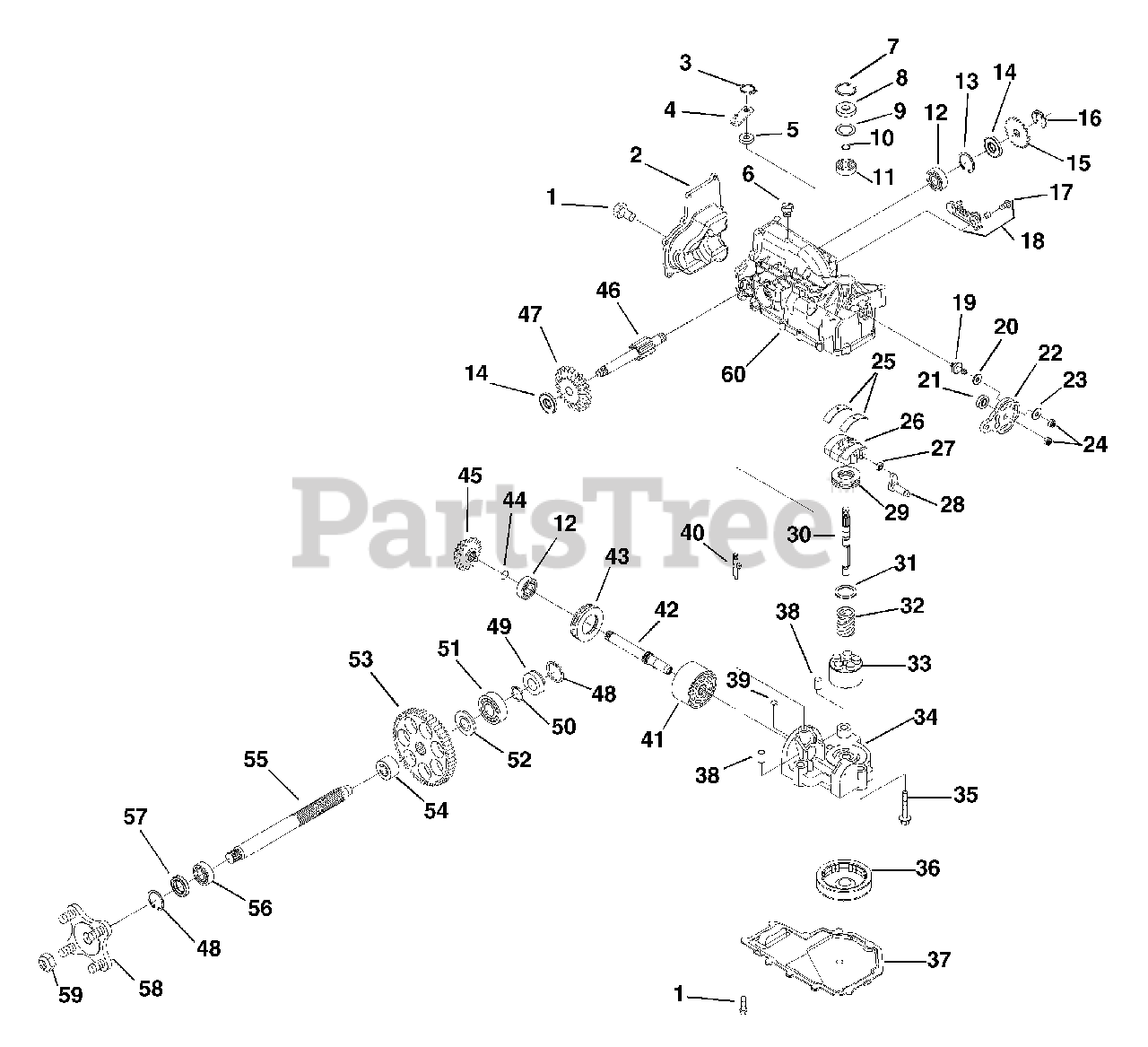

Hydrostatic Transaxle - Right Parts Diagram

  • Title

1

50437

Screw .25-20 x .75

$

$

Not available

2

Gravely 50891RM

Cover-Back

$

$

Not available

3

44870

Ring-Retaining

$

$

Not available

4

50270

Arm-Bypass

$

$

Not available

5

Gravely 45074

Seal-Lip

$

$

Not available

6

Gravely 9005200-5600

Plug-Plastic

$

$

Not available

7

Gravely 2003052

Ring-Retaining

$

$

Not available

8

Gravely 9008000-0128

Seal-Lip

$

$

Not available

9

Gravely 2003018

Spacer

$

$

Not available

10

Gravely 2003016

Ring-Wire Retaining

$

$

Not available

11

Gravely 2003043

Bearing-Ball

$

$

Not available

12

Gravely 50315

Bearing-Ball

$

$

Not available

13

50329

Ring-Retaining

$

$

Not available

14

Gravely 50735

Seal-Brake Shaft

$

$

Not available

15

Gravely 50754

Brake Disc

$

$

Not available

16

Gravely 70394

Kit-Retaining Ring

$

$

Not available

17

51076

Screw-Hex Washer Head 1/4-20 x 7/8

$

$

Not available

18

Gravely 70392

Service Assembly-Right Hand Brake Arm

$

$

Not available

19

Gravely 50426

Stud-Short 5/16-24

$

$

Not available

20

Gravely 50281

Friction Puck

$

$

Not available

21

Gravely 90080000-0126

Seal-Lip

$

$

Not available

22

Gravely 50749

Arm-Control

$

$

Not available

23

44130

Washer

$

$

Not available

24

Gravely 50317

Nut

$

$

Not available

25

Gravely 2003023

Cradle Bearing

$

$

Not available

26

Gravely 2003087

Variable Swashplate

$

$

Not available

27

Gravely 2000015

Slot Guide

$

$

Not available

28

50807

Arm-Trunnion

$

$

Not available

29

Gravely 50551

Bearing-Thrust 30 x 52 x 13

$

$

Not available

30

50005

Shaft-Input

$

$

Not available

31

Gravely 2003017

Washer-Block Thrust

$

$

Not available

32

Gravely 2003014

Spring-Block

$

$

Not available

33

Gravely 70331

Assembly-Cylinder Block 10cc

$

$

Not available

34

Gravely 70340

Assembly-Center Section

$

$

Not available

35

Gravely 50016

Screw

$

$

Not available

36

Gravely 50990

Filter

$

$

Not available

37

Gravely 50890RM

Housing-Lower

$

$

Not available

38

Gravely 50002

Pin-Alignment

$

$

Not available

39

Gravely 2003554

Bypass Plate

$

$

Not available

40

Gravely 2003555

Bypass Actuator

$

$

Not available

41

Gravely 70082

Assembly-Cylinder Block 21cc

$

$

Not available

42

Gravely 50757

Shaft-Motor

$

$

Not available

43

Gravely 50552

Bearing-Thrust 42 x 68 x 16

$

$

Not available

44

Gravely 2000022

Ring-Wire Retaining

$

$

Not available

45

Gravely 50744

Gear-Bevel 14T

$

$

Not available

46

Gravely 70393

Kit-Brake Shaft

$

$

Not available

47

Gravely 50745

Gear-Bevel 19T

$

$

Not available

48

Gravely 50760

Ring-Retaining - Axle

$

$

Not available

49

50995

Seal-Plug - Side

$

$

Not available

50

Gravely 50759

Ring-Retaining - Axle

$

$

Not available

51

50743

Bearing-Ball 20 x 47 x 14

$

$

Not available

52

Gravely 50942-2

Bushing-Axle

$

$

Not available

53

Gravely 50746

Gear-Spur 53T

$

$

Not available

54

Gravely 50942-1

Bushing-Axle

$

$

Not available

55

Gravely 50748

Shaft-Axle

$

$

Not available

56

Gravely 50740

Bearing-Ball 25 x 47 x 12

$

$

Not available

57

Gravely 50751

Seal

$

$

Not available

58

Gravely 70314

Assembly-Hub

$

$

Not available

59

Gravely 50863

Nut-Hex 3/4-16

$

$

Not available

60

Gravely 70329

Housing-Upper Assembly

$

$

Not available
