915170 (ZT 42) - Gravely 42" Zero-Turn Mower, CARB (SN: 000101 - 009999) Frame, Hood, Fenders, Casters And Tires Parts Diagram

42" Zero-Turn Mower, CARB

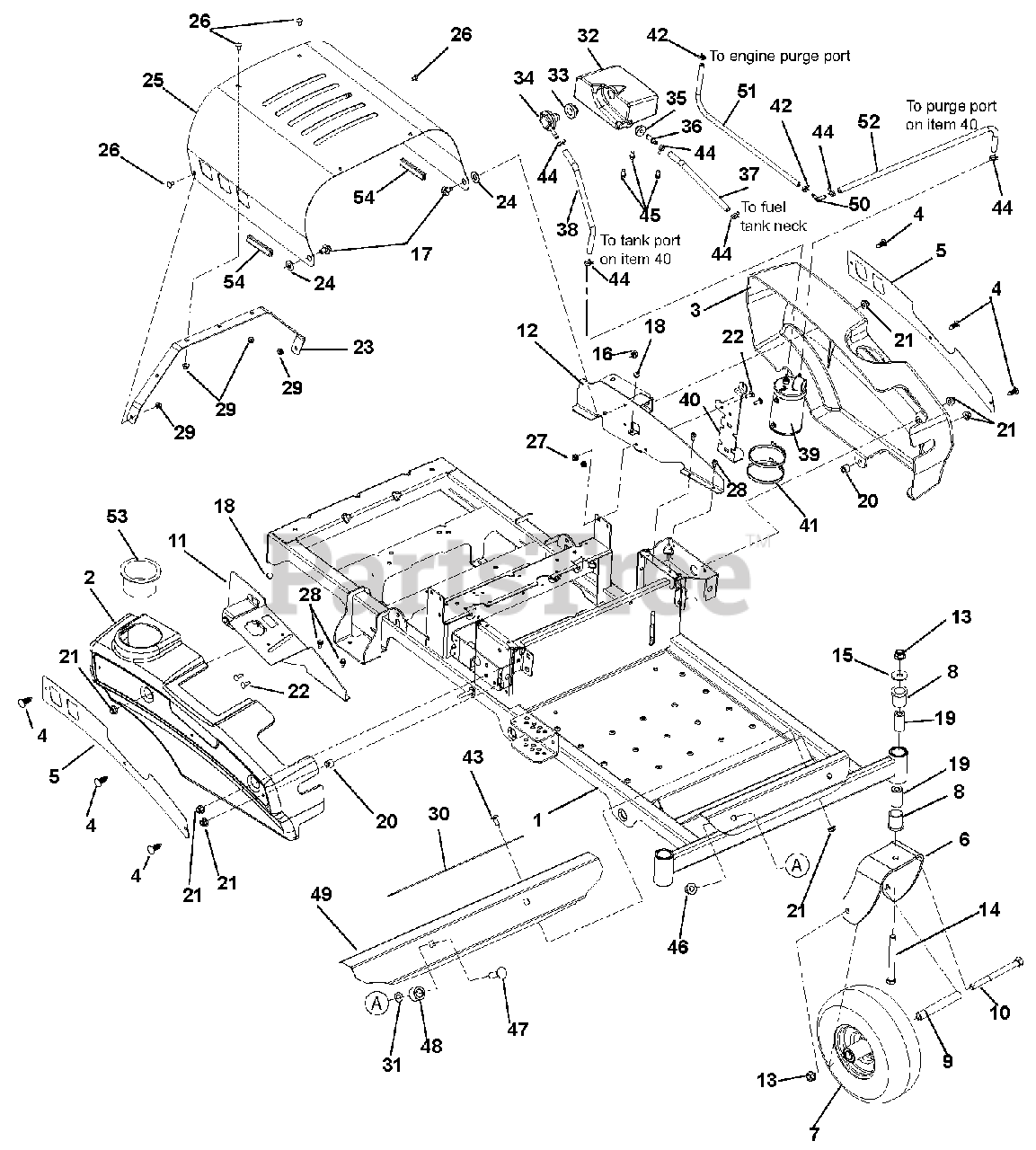

Frame, Hood, Fenders, Casters And Tires Parts Diagram

  • Title

1

Gravely 03896851

Weldment, Frame
(Superseded to 51525800)

$739.99

$

Usually ships in 4-12 days

0

2

Gravely 03768600

Fender, Right Hand

$79.99

$

In Stock, only 1 left!

0

3

Gravely 03768700

Fender, Left Hand
(Superseded to 51534400)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07500125

Rivet, Nylon

$2.49

$

In Stock, Qty 20+

0

5

Gravely 03769053

Plate, Fender

$39.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 4 left!

0

7

Gravely 07100801

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

$68.99

$

In Stock, Qty 12

0

8

Gravely 05500934

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, Qty 17

0

11

Gravely 04194051

Weldment, Fender Mount Right Hand

$57.99

$

Usually ships in 4-12 days

0

12

Gravely 04240751

Weldment, Fender Mount Left Hand

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 06543600

Nut, Locking, Top, Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

16

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

18

Gravely 07503100

Bumper Grommet .125 x .250 Diameter

$3.49

$

In Stock, only 2 left!

0

19

Gravely 00363100

Spacer, Caster

$5.99

$

In Stock, Qty 15

0

20

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$5.99

$

In Stock, Qty 15

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 04085753

Hood Brace

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 06443300

Washer, Flat, Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

25

Gravely 04277453

Hood, Zoom

$

$

Not available

26

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

27

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

28

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

30

Gravely 03833800

Grip, Adhesive (1" x 16" BLK)

Note: (1" x 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06500705

Nut, Push .50

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 04215900

Tank, ZT/Waw Fuel Exp.
(Superseded to 04400000)

$47.99

$

Usually ships in 4-12 days

0

33

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

34

Gravely 04246000

Vent, Roll-Over (.25"ID Hose)

Note: (.25"ID Hose)

$20.99

$

In Stock, only 1 left!

0

35

Gravely 07511400

Bushing, Flange .375 x 1.062 x .625 R

$3.49

$

In Stock, Qty 20+

0

36

Gravely 04182300

Fitting, Straight Fuel

$

$

Not available

37

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$0.99

$

In Stock, Qty 20+

0

38

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$0.99

$

In Stock, Qty 20+

0

39

Gravely 04082500

Carbon Canister, 300CC

$62.99

$

Usually ships in 4-12 days

0

40

Gravely 04086551

Bracket, Mount, Canister BBZ

$18.99

$

Usually ships in 4-12 days

0

41

Gravely 04102900

Plastic Tie Strap Large

$

$

Not available

42

Gravely 04097700

Clamp, Hose Spring .188

$1.49

$

Usually ships in 4-12 days

0

43

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

44

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 7

0

45

Gravely 07049500

Bolt, Serrated Hex Flange Washer Head .312-18 x .50

$2.49

$

Usually ships in 4-12 days

0

46

Gravely 06500010

Nut, Locking Nylon Flange .50-13
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 06224800

Bolt, Round Head Square Neck .50-13 x 1.75
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

48

Gravely 04192901

Tube, Upper Control Pivot

$6.99

$

Usually ships in 4-12 days

0

49

Gravely 04188353

Foot Rest

$77.99

$

Usually ships in 4-12 days

0

50

Gravely 04097000

Fitting, 3/16 x 1/4 90 Deg Vac

$14.99

$

Usually ships in 4-12 days

0

51

Gravely 03375900

Hose, .188 Low Perm Bulk (915168)

Note: (915168)

$3.49

$

Usually ships in 4-12 days

0

Hose, .188 Low Perm Bulk (915170)

Hose, .188 Low Perm Bulk (915170)

Note: (915170)

$

$

Not available

52

Gravely 03278100

Hose, .25 Low Perm Bulk Gas (915168)

Note: (915168)

$0.99

$

In Stock, Qty 20+

0

Hose, .25 Low Perm Bulk Gas (915170)

Hose, .25 Low Perm Bulk Gas (915170)

Note: (915170)

$

$

Not available

53

Gravely 04196270

Cupholder

$

$

Currently unavailable

54

Gravely 07500103

Edging, Clutch Paddle-2.00"

$3.49

$

Usually ships in 4-12 days

0
