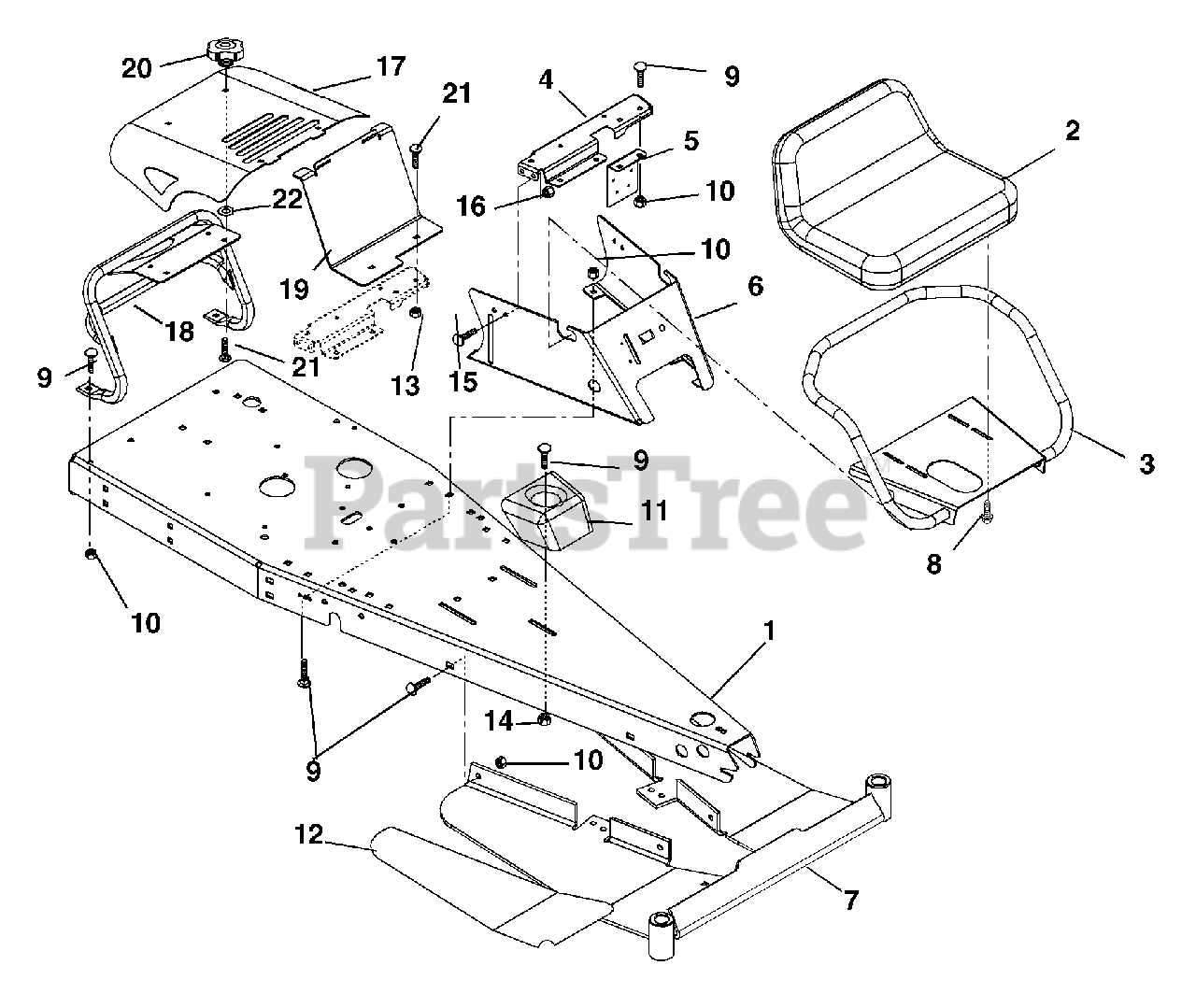

927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Frame, Hood And Seat Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

Frame, Hood And Seat Parts Diagram

  • Title

1

Gravely 02760151

Frame

$

$

Not available

2

Gravely 02755200

Seat V-1300 Low Weltless

$

$

Not available

3

Gravely 02760551

Weldment, Seat Mount/Bar

$

$

Not available

4

Gravely 02764451

Reforcement, Seat Support

$22.99

$

In Stock, only 1 left!

0

5

Gravely 02766151

Panel, Solenoid Mounting

$

$

Not available

6

Gravely 02760353

Seat Support

$

$

Not available

7

Gravely 02760253

Weldment, Footrest

$216.99

$

Usually ships in 4-12 days

0

8

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

$2.99

$

In Stock, Qty 13

0

9

Gravely 06227000

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06544500

Nut, Top Lock Nut Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 02768500

Cupholder

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 02771700

Grip, Rear Engine Rider Footrest Left Hand

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 02771800

Grip, Rear Engine Rider Footrest Right Hand

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 06114400

Screw, Machine .25-20 x .75

$0.99

$

In Stock, Qty 17

0

16

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

17

Gravely 02771453

Engine, Hood

$

$

Not available

18

Gravely 02771651

Weldment Tube

$

$

Not available

19

Gravely 02771551

Bracket, Hood Support

$

$

Not available

20

Gravely 07534800

Knob, Clamping .31-18 Nyloc

$7.99

$

In Stock, Qty 13

0

21

Gravely 06221800

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 040380

Nut, Push .312
(Superseded to 06514900)

$0.99

$

In Stock, Qty 13
