927062 (1232) - Gravely 32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Rear Wheel And Hydro Drive Parts Diagram

32" Rear-Engine Riding Mower, 12hp Briggs & Stratton, Hydro

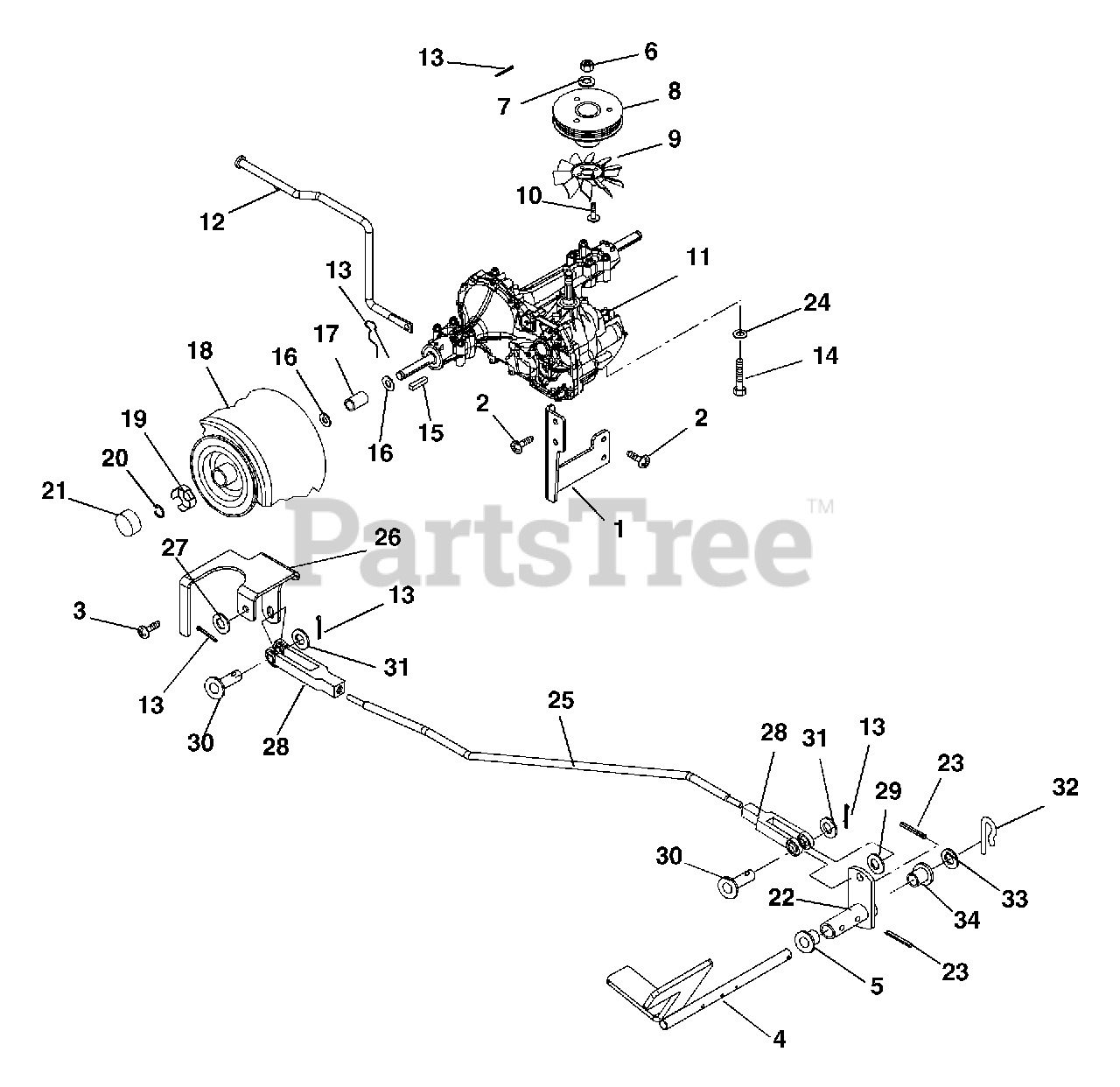

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Gravely 02761200

Transmission Support, Rear Engine Rider Hydro

$

$

Not available

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 02761600

Weldment, Forward and Reverse Pedal
(Superseded to 02792000)

$

$

Not available

5

Gravely 05520600

Bushing, Flange .502 x 1 x .75

$9.49

$

In Stock, only 1 left!

0

6

Gravely 06539500

Nut, Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06307300

Washer, Lock .50 x .125 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

8

Gravely 02765000

Pulley, Transmission

$

$

Not available

9

Gravely 02772600

Fan, 6 Inch

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 07406900

Screw, Tapping 10-24 x .484

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 03693200

Transaxle, Hydro

$

$

Not available

12

Gravely 02764800

Rod, Transmission Disconnect

$

$

Not available

13

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 05960600

Bolt, Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 036282

Key, Square .188 x 2.0 x .188
(Superseded to 06601900)

$

$

Not available

16

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 16

0

17

Gravely 02765400

Spacer, Wheel .75 x 1.00 x 1.25
(Superseded to 05510400)

$

$

Not available

18

Gravely 02765300

Assembly, Tire and Wheel 16 x 6.5 x 8

$

$

Not available

18

Gravely 039653

Tire 16 x 6.50-8 2 Pulley
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

19

Gravely 036277

Spindle Cup
(Superseded to 03516900)

$19.99

$

In Stock, only 1 left!

0

20

Gravely 036278

Ring, Retaining External .75 x .05
(Superseded to 05707400)

$2.49

$

In Stock, only 3 left!

0

21

Gravely 036202

Hub Cap
(Superseded to 00337700)

$2.99

$

In Stock, only 2 left!

0

22

Gravely 02761700

Weldment, Shift Rod and Hub

$

$

Not available

23

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06437200

Washer, Flat Steel .344 x .688 x 065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

25

Gravely 02764500

Rod, Shift Rear Engine Rider Hydro

$

$

Not available

26

Gravely 02761951

Bracket, Shift Rod

$

$

Not available

27

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

29

Gravely 06444300

Washer, Flat Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 9

0

30

Gravely 06811800

Pin, Clevis .31 x .822
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

32

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

33

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

34

Gravely 034738

Bushing, Flange .515 x .75 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0
