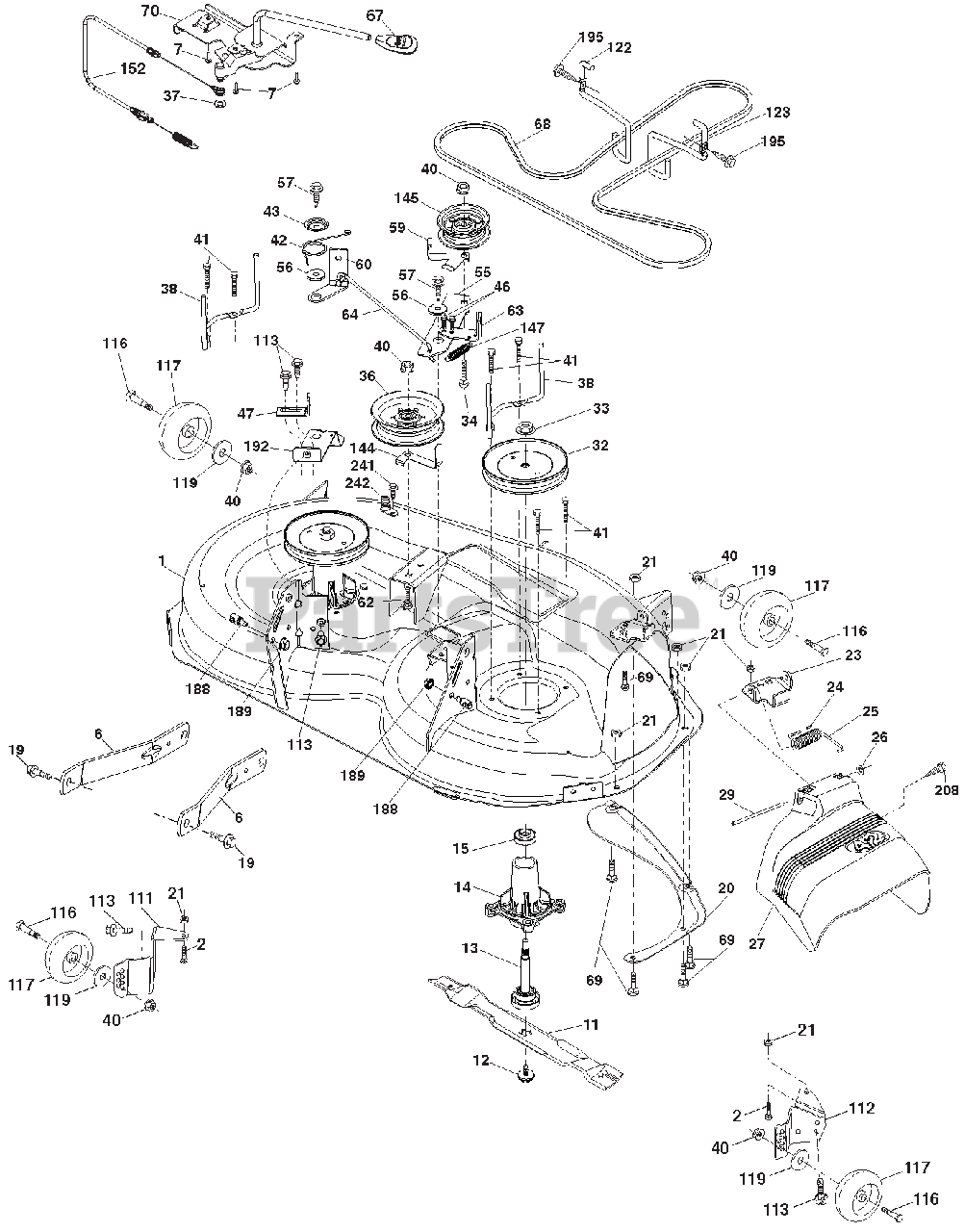

936083 (960460061-02) - Ariens 42" Lawn Tractor, Automatic Mower Deck Parts Diagram

42" Lawn Tractor, Automatic

Mower Deck Parts Diagram

  • Title

1

Ariens 21547805

DECK.PNT.WELDMENT.42"

$426.99

$

Usually ships in 4-12 days

0

2

Ariens 21547167

Bolt

$

$

Not available

6

Ariens 21546347

ARM.SUSPENSION.MOWER.REAR.LD

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 21546675

Screw

$

$

Not available

11

Ariens 21546095

BLADE.MOWER.42"HI LIFT PREMIUM

$14.99

$

In Stock, Qty 20+

0

12

Ariens 21549011

SCREW 7/16-20 X 1

$8.99

$

In Stock, Qty 20+

0

13

Ariens 21549009

SHAFT ASM
(Superseded to 21549012)

$47.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$47.99

$

In Stock, Qty 20+

0

15

Ariens 21549010

BEARING
(Superseded to 21546046)

$9.49

$

In Stock, Qty 6

0

19

Ariens 21546411

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Ariens 21546144

BAFFLE.VORTEX.42.STD/HEAVY DTY

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 21546296

BRACKET.DEFLECTOR.38/42"2005

$7.49

$

In Stock, Qty 20+

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$4.99

$

In Stock, Qty 20+

0

25

Ariens 21546416

SPRING.TORSION.DFL.38/42/46.GR

$9.99

$

In Stock, Qty 20+

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$3.99

$

In Stock, Qty 20+

0

27

Ariens 21547728

SHIELD.DEFLECTOR.
(Superseded to 21546305)

$44.99

$

In Stock, Qty 10

0

29

Ariens 21546081

ROD.HINGE.42/46"

$

$

Not available

32

Ariens 21546446

PULLEY.MANDREL.5.438 PD.42"

$10.99

$

In Stock, Qty 20+

0

32

Ariens 21549012

MANDREL ASM

Note: (INCLUDES HOUSING (KEY #14), SHAFT ASSEMBLY (KEY #13), AND BEARING (KEY #15) ONLY - PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

$47.99

$

In Stock, Qty 20+

0

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$6.49

$

Usually ships in 4-12 days

0

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$24.99

$

In Stock, Qty 20+

0

37

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 9

0

38

Ariens 21547367

KEEPER.BELT.MANDREL.PULLEY

$6.49

$

In Stock, Qty 20+

0

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 21548816

HEX HEAD BOLT

$3.49

$

In Stock, Qty 20+

0

42

Ariens 21546478

SPRING.TORSION.BRAKE

$6.49

$

Usually ships in 4-12 days

0

43

Ariens 21546423

SPRING.TORSION.RETAINER

$6.49

$

In Stock, only 1 left!

0

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8

$4.99

$

In Stock, Qty 20+

0

47

Ariens 21546421

BRACKET.CLUTCH.CABLE

$

$

Not available

55

Ariens 21547834

IDLER.ARM

$

$

Not available

56

Ariens 21546482

SPACER.RETAINER

$6.49

$

In Stock, only 1 left!

0

57

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, Qty 13

0

59

Ariens 21546103

GUARD.TUV.IDLER

$

$

Not available

60

Ariens 21546429

ARM.BRAKE.MOWER.42"

$7.99

$

In Stock, Qty 20+

0

62

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 18

0

63

Ariens 21546499

ARM.BRAKE.MOWER

$17.99

$

In Stock, Qty 20+

0

64

Ariens 21546511

LINKAGE.BRAKE
(Superseded to 21547237)

$24.99

$

Usually ships in 4-12 days

0

67

Ariens 21547741

HANDLE.CLUTCH.CABLE.LT TEX.428

$22.99

$

In Stock, only 1 left!

0

68

Ariens 21547238

BELT.DRIVE.100.97"
(Superseded to 21547025)

$34.99

$

In Stock, Qty 20+

0

69

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Ariens 21547586

CLUTCH ASM.

$80.99

$

In Stock, only 1 left!

0

111

Ariens 21547329

BRACKET WHEEL GAUGE LH

$12.99

$

Usually ships in 4-12 days

0

112

Ariens 21547330

BRACKET WHEEL GAUGE RH

$22.99

$

Usually ships in 4-12 days

0

113

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$7.49

$

In Stock, Qty 20+

0

116

Ariens 21547537

BOLD SHLD "A" 2.41 "B" 1.66
(Superseded to 21546741)

$

$

Not available

117

Ariens 21546267

WHEEL.GAGE.HALF.SPOKED

$11.99

$

Usually ships in 4-12 days

0

119

Ariens 21546281

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

122

Ariens 21546424

KEEPER.BELT.ENGINE.LH.LT.TEX

$7.49

$

In Stock, Qty 20+

0

123

Ariens 21546426

KEEPER.BELT.ENGINE.RH.LT.TEX

$7.49

$

In Stock, Qty 20+

0

144

Ariens 21546489

KEEPER.BELT.MOWER
(Superseded to 21546490)

$6.49

$

Usually ships in 4-12 days

0

145

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$24.99

$

In Stock, Qty 20+

0

147

Ariens 21546579

SPRING.RETURN

$5.99

$

In Stock, Qty 20+

0

152

Ariens 21548470

CABLE.CLUTCH.MANUAL

$34.99

$

In Stock, Qty 20+

0

188

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

189

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

192

Ariens 21546428

BRACKET.BRAKE.STAND.LH

$12.99

$

Usually ships in 4-12 days

0

195

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 1 left!

0

241

Ariens 21547128

Screw

$7.49

$

In Stock, Qty 20+

0

242

Ariens 21547345

PORT WASHOUT

$8.99

$

In Stock, Qty 20+

0

- -

Ariens 21547347

COUPLING QUICK CONNECT

Note: NOT SHOWN

$8.99

$

In Stock, Qty 20+

0

- -

Ariens 21548317

DECK.REPLACEMENT

$

$

Not available
