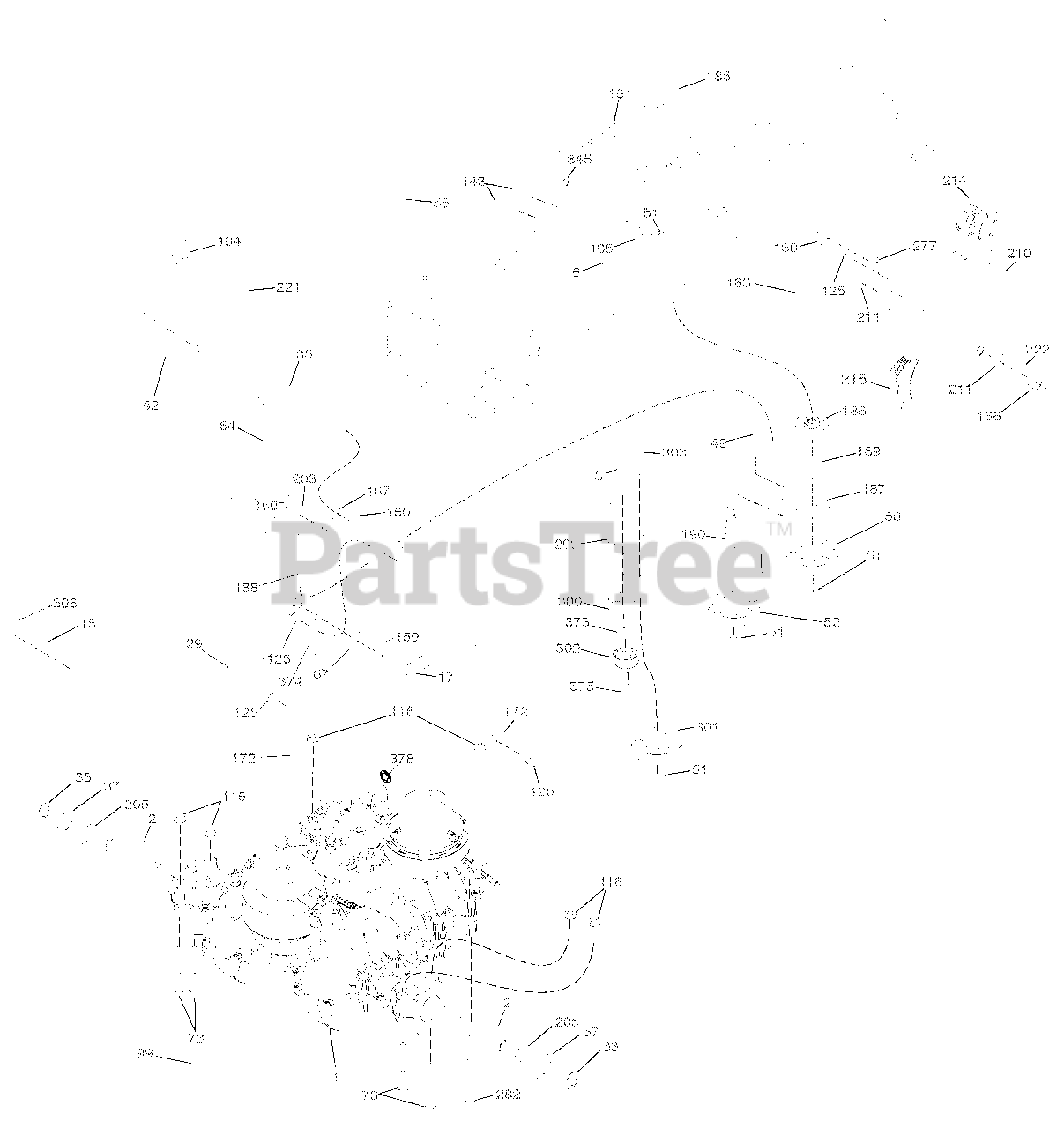

936084 (960460062-01) - Ariens 42" Lawn Tractor, Automatic Drive Parts Diagram

42" Lawn Tractor, Automatic

Drive Parts Diagram

  • Title

1

TRANSMISSION, GENTRANS VATR (580486201)

Note: (580486201)

$

$

Not available

1

(ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Note: (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, Qty 17

0

5

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 21547114

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 9

0

17

Ariens 21549018

BRAKE, SPRING

$

$

Not available

29

Ariens 21548555

ROD BRAKE

$

$

Not available

33

Ariens 21546051

E-RING.#5133-75

$4.99

$

In Stock, Qty 20+

0

35

Ariens 21547585

ROD, BRAKE, PARK

$

$

Not available

37

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0

42

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

In Stock, only 4 left!

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Ariens 21546422

BELT.DRIVE.100.97"

$30.99

$

In Stock, Qty 20+

0

64

Ariens 21548307

SHAFT ASM. PEDAL BRAKE

$

$

Not available

67

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

73

Ariens 21546798

BOLT.HEX.FLGHD.5/16-18.GR.5

$4.99

$

Usually ships in 4-12 days

0

99

Ariens 21548267

ROD.BYPASS

$6.49

$

In Stock, only 1 left!

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, only 3 left!

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 1 left!

0

143

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

Note: (M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$10.99

$

In Stock, Qty 20+

0

163

Ariens 21548556

ROD CONTROL PEDAL
(Superseded to 21549008)

$

$

Not available

166

Ariens 21547349

NUT PUSH .625

$6.49

$

In Stock, Qty 7

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

172

Ariens 21548347

STRAP TORQUE VARIATOR

$3.99

$

Usually ships in 4-12 days

0

184

Ariens 21548870

HANDLE.PARKING BRAKE

$96.99

$

Usually ships in 4-12 days

0

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$3.99

$

In Stock, only 3 left!

0

186

Ariens 21546328

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$15.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, Qty 19

0

195

Ariens 21548272

BRACKET.BRAKE

$

$

Not available

203

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, only 3 left!

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$3.49

$

In Stock, Qty 20+

0

210

Ariens 21549024

WELDMENT, PEDAL

$74.99

$

In Stock, only 1 left!

0

211

Ariens 21546061

BEARING.NYLON.BLK..629 ID.

$

$

Not available

214

Ariens 21547005

PAD PEDAL FORWARD

$

$

Not available

215

Ariens 21548301

CAP PEDAL REVERSE

$12.99

$

Usually ships in 4-12 days

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, Qty 10

0

222

Ariens 21546821

WASHER.21/32X1-1/4.10GA.N/PLTD

$

$

Not available

277

Ariens 21548557

LINK ROCKER PEDAL

$

$

Not available

282

Ariens 21548239

BOLT.HEX. 5/16-18 X 3 GR. 5
(Superseded to 05962500)

$3.99

$

In Stock, Qty 5

0

299

Ariens 21547209

Bracket Mount Idler

$

$

Not available

300

Ariens 21547210

Keeper Idler Rear

$6.49

$

Usually ships in 4-12 days

0

301

Ariens 21547211

Pulley Idler V-Groove

$31.99

$

In Stock, Qty 20+

0

302

Ariens 21548266

PULLEY,IDLER.FLAT

$26.99

$

In Stock, Qty 18

0

303

Ariens 21547133

Bolt RDHD SQNK 3/8-16 x 2-1/4

$

$

Not available

306

Ariens 21547064

Pin Cotter 1/8 x 1 Cad

$3.49

$

Usually ships in 4-12 days

0

345

Ariens 21547050

Bolt Rdhd Sht Sqnk 3/8-16 x 3/

$3.49

$

In Stock, only 1 left!

0

373

Ariens 21548269

SPACER.IDLER

$7.99

$

Usually ships in 4-12 days

0

374

Ariens 21548270

ARM.BRAKE.CONTROL

$

$

Not available

375

Ariens 21548291

BOLT.HEX.HS.3/8-16.UNCX2-1/4
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

378

Ariens 21548349

NUT PUSH

$4.99

$

In Stock, Qty 20+

0
