97-10DC01 - Toro 10 Cubic Foot Cart (1979)

10 Cubic Foot Cart

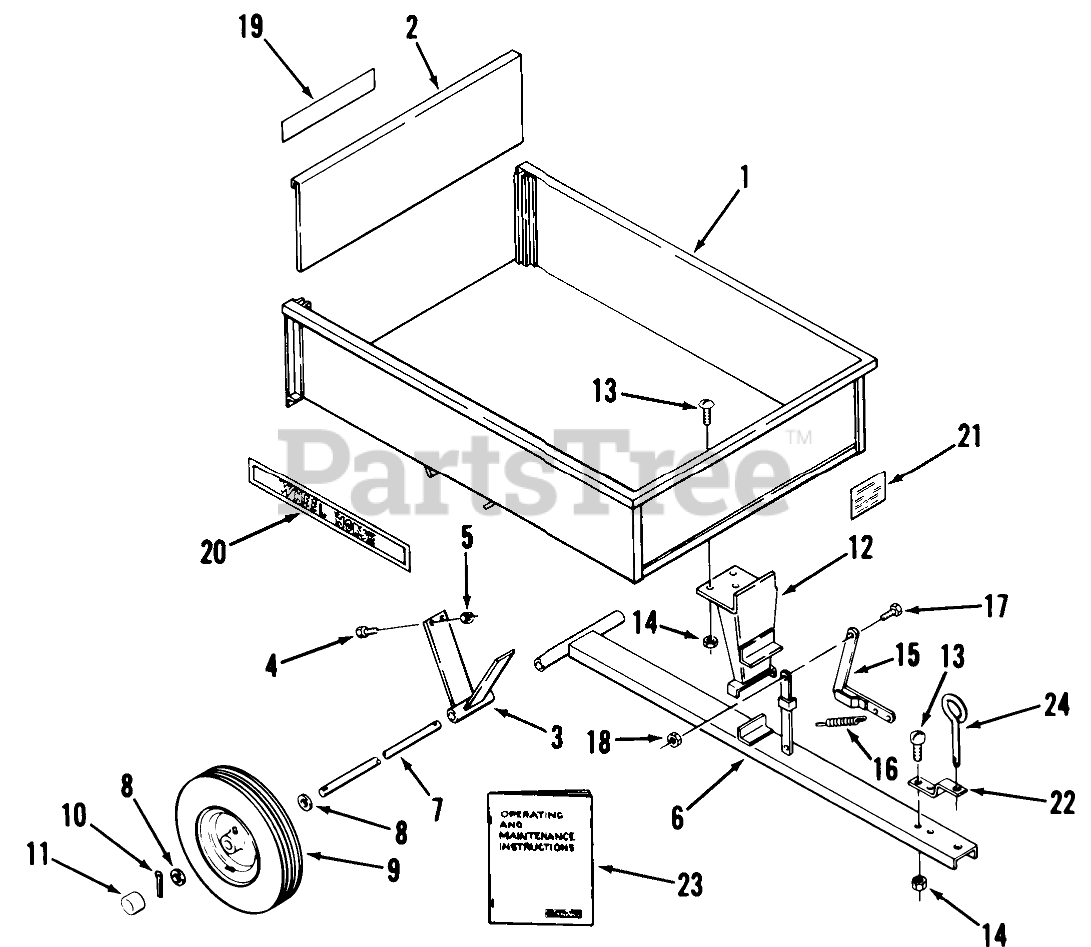

97-10DC01 - Toro 10 Cubic Foot Cart (1979) > Parts Diagrams (5) > DUMP CART-10 CU. FT. (.28 CU.M)(VEHICLE IDENTIFICATION NUMBER 97-10DC01)

  • Title
226120

1

Bed Assembly

Part# 226120

OEM Warranty Repair Part for Toro

Not available

226121

2

Rear Gate

Part# 226121

OEM Warranty Repair Part for Toro

Not available

226122

3

Axle Holder Assembly

Part# 226122

OEM Warranty Repair Part for Toro

Not available

908034

4

BOLT

Part# 908034 (Superseded to 323-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.85

915113

5

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

226130

6

Drawbar Assembly

Part# 226130

OEM Warranty Repair Part for Toro

Not available

226124

7

AXLE

Part# 226124

OEM Warranty Repair Part for Toro

Not available

226125

8

Special Washer

Part# 226125

OEM Warranty Repair Part for Toro

Not available

226126

9

Wheel Assembly (4.30-8)

Part# 226126

OEM Warranty Repair Part for Toro

Not available

226052

Wheel

Part# 226052 (Superseded to 109034)

OEM Warranty Repair Part for Toro

Not available

226051

Wheel Bearing

Part# 226051

OEM Warranty Repair Part for Toro

Not available

226048

Tire

Part# 226048

OEM Warranty Repair Part for Toro

Currently unavailable

932017

10

See Supercession: 9320174

Part# 932017 (Superseded to 9320174)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

103565

11

HUB CAP

Part# 103565

OEM Warranty Repair Part for Toro

Not available

226131

12

Drawbar Spacer Assembly

Part# 226131

OEM Warranty Repair Part for Toro

Not available

226128

13

Truss Hd. Bolt 3/8-16 x 3/4

Part# 226128 (Superseded to 910891)

OEM Warranty Repair Part for Toro

Not available

915113

14

Nut

Part# 915113 (Superseded to 32153-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

226129

15

Latch Assembly

Part# 226129

OEM Warranty Repair Part for Toro

Not available

226067

16

SPRING

Part# 226067

OEM Warranty Repair Part for Toro

Not available

908003

17

Bolt

Part# 908003 (Superseded to 321-4)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

915111

18

Nut

Part# 915111 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.54

103174

19

DECAL-WHEEL HORSE

Part# 103174

OEM Warranty Repair Part for Toro

Not available

102831

20

Decal

Part# 102831 (Superseded to 108851)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.69

106703

21

Decal-Weight Limit

Part# 106703

OEM Warranty Repair Part for Toro

Not available

226132

22

Clevis

Part# 226132

OEM Warranty Repair Part for Toro

Not available

803718R1

23

Operating and Maintenance Instructions

Part# 803718R1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

106634

24

PIN-TOOL

Part# 106634

OEM Warranty Repair Part for Toro

Not available
