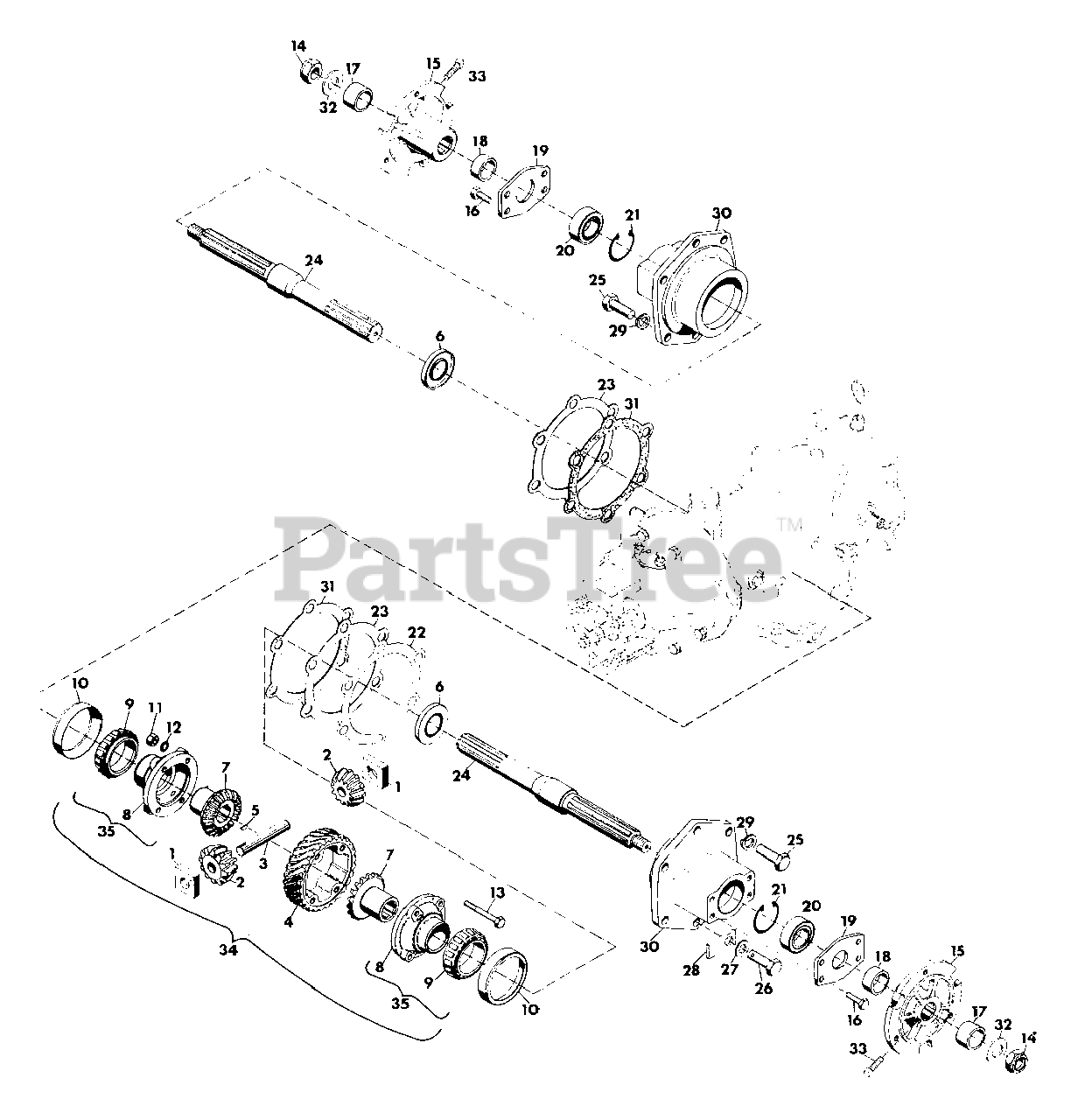

985031 (5200) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, Manual Start (SN: 000101 & Above) Standard Differential Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, Manual Start

Standard Differential Parts Diagram

  • Title
1

22505

Block, Drive

$

$

Not available

2

6708

Gear, Spider Bevel

$

$

Not available

3

12556

Pin, Spider Pinion

$

$

Not available

4

13498

Gear, 6 Start Worm

$

$

Not available

5

Gravely 271089

Key, Woodruff .125x.375 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

6

22506

Seal, Oil 1.188x2.00x.250

$

$

Not available

7

6709

Gear, Differential Bevel

$

$

Not available

8

22504

Housing, Differential

$

$

Not available

9

12131

Cone, Roller Bearing

$

$

Not available

10

12130

Cup, Roller Bearing

$

$

Not available

11

Gravely 120368

Nut, Hex 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 138538

Washer, Lock 5/16 Int. Tooth
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

13

Gravely 181623

Bolt, Hex 5/16-24x2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

14

22502

Nut, Hex 3/4-10 Light Thin

$

$

Not available

15

22507

Hub, Wheel

$

$

Not available

16

Gravely 180120

Bolt, Hex 3/8-16x-.750
(Superseded to 05901702)

$1.49

$

In Stock, only 3 left!

0

17

22512

Spacer

$

$

Not available

18

22501

Spacer

$

$

Not available

19

22503

Plate, End

$

$

Not available

20

32050

Bearing, Ball 1.000x2.000x.562

$

$

Not available

21

22497

Ring, Retaining 2.000 Bore

$

$

Not available

22

12596

Shim, Axle Housing .020

$

$

Not available

23

12595

Shim, Axle Housing .005

$

$

Not available

24

22493

Axle, Straight

$

$

Not available

25

Gravely 180173

Bolt,Hex 1/2-13x1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

26

13624

Bolt, Hex 1/2-13x1 Nylon Insert

$

$

Not available

27

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

28

12594

Washer, Oil Drain

$

$

Not available

29

Gravely 120384

Washer, Lock SP
(Superseded to 06300115)

$1.49

$

In Stock, Qty 19

0

30

22495

Housing, Axle

$

$

Not available

31

12597

Gasket, Axle Housing

$

$

Not available

32

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 426913

Screw, Set 7/16-14x1.00
(Superseded to 21069400)

$

$

Not available

34

22554

Assembly, Diff. Std. 6 Lead

$

$

Not available

35

22561

Assembly, Differential Housing

$

$

Not available
