985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (1) Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

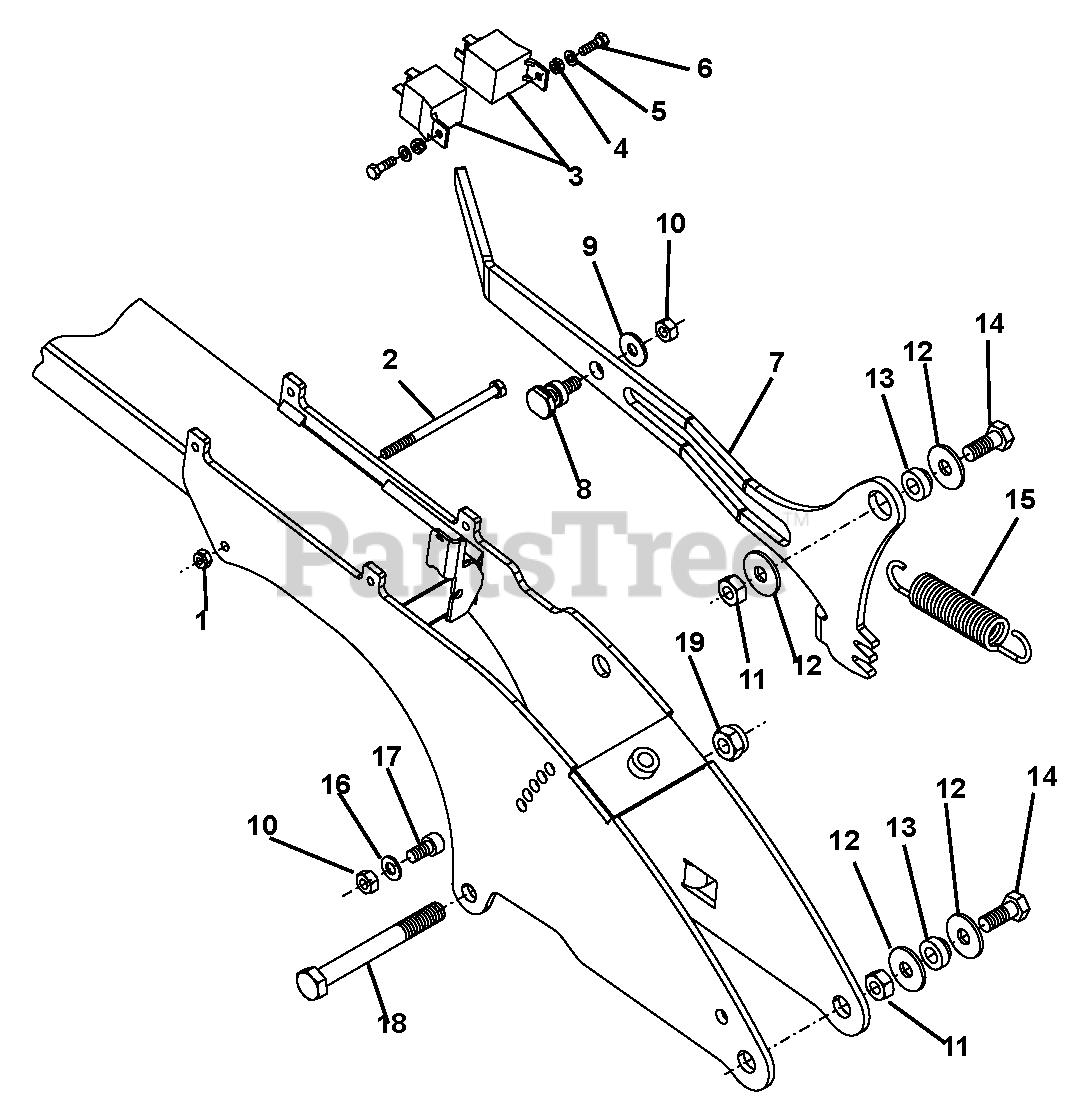

Handlebar (1) Parts Diagram

  • Title

1

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

2

Gravely 08607500

Bolt, Hex D931 M6 x 100

$

$

Not available

3

Gravely 08629000

Relay

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 08614200

Washer, D125 5.3 x 10 x 1

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08632500

Bolt, Hex D933 M5 x 16

$

$

Not available

7

Gravely 08632900

Lever

$

$

Not available

8

Gravely 08633000

Bolt

$

$

Not available

9

Gravely 08616300

Washer, M8

$

$

Not available

10

Gravely 08621300

Nut, Hex D934 M8
(Superseded to 08605700)

$

$

Not available

11

Gravely 08616100

Nut, Lock D934 M10

$

$

Not available

12

Gravely 08633100

Washer, D9021 10,5 x 30 x 2,5

$

$

Not available

13

Gravely 08633200

Bearing Bushing

$

$

Not available

14

Gravely 08623700

Bolt, Hex D933 M10 x 25
(Superseded to 08683900)

$

$

Not available

15

Gravely 08677100

Spring, Tension, 3.2/19.3 x 122

$

$

Not available

16

Gravely 08632300

Washer, M8
(Superseded to 08605800)

$

$

Not available

17

Gravely 08644000

Screw, D912 M8 x 16

$

$

Not available

18

Gravely 08633300

Bolt, Hex D931 M12 x 110

$

$

Not available

19

Gravely 08671100

Nut, Lock M12

$

$

Not available
