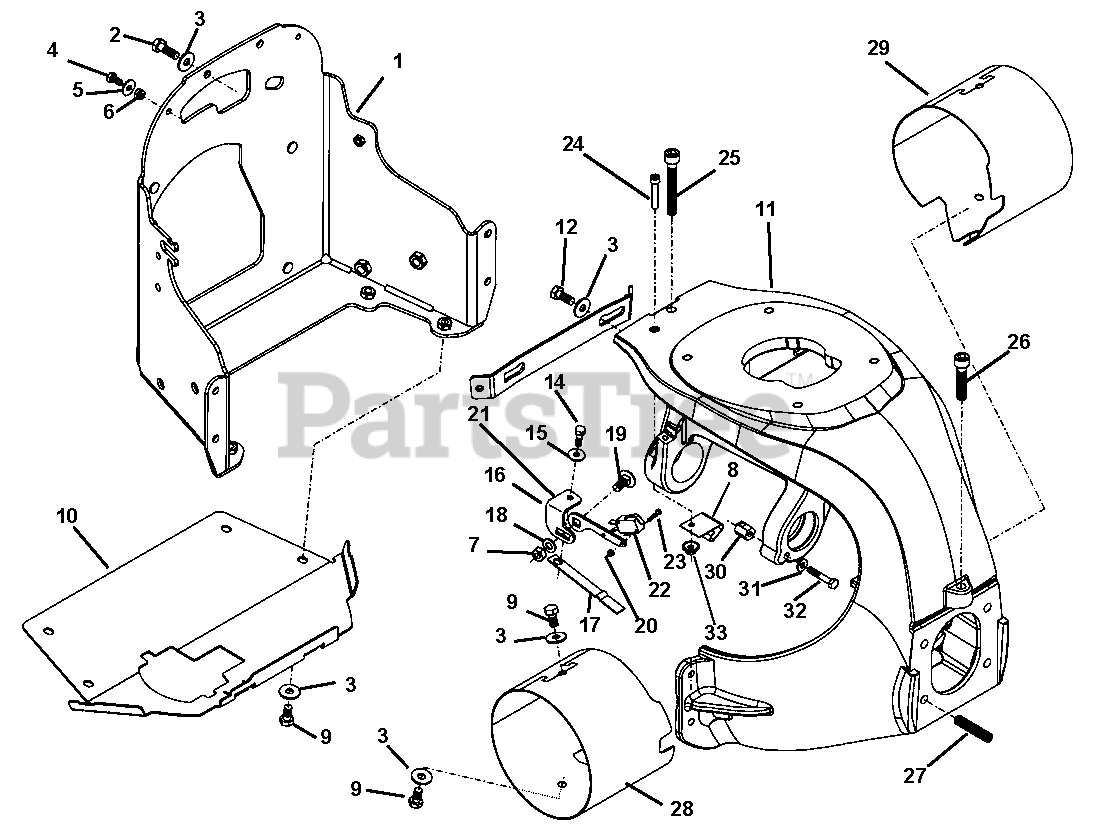

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Frame Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Frame Parts Diagram

  • Title

1

Gravely 00695500

Bracket, Engine

$

$

Not available

2

Gravely 08635100

Bolt, Hex D933 M8 x 25

$

$

Not available

3

Gravely 08616300

Washer, M8

$

$

Not available

4

Gravely 08614700

Bolt, Hex D933 M6 x 12

$

$

Not available

5

Gravely 08677200

Washer, D9021 6.3 x 18

$

$

Not available

6

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

7

Gravely 08605700

Nut, Hex D934 M8

$

$

Not available

8

Gravely 03710500

Spring, Lock

$77.99

$

Usually ships in 4-12 days

0

9

Gravely 08621400

Bolt, Hex D933 M8 x 16

$

$

Not available

10

Gravely 08627200

Sheet

$

$

Not available

11

Gravely 03716000

Frame

$

$

Not available

12

Gravely 08604300

Bolt, Hex D933 M8 x 20

$

$

Not available

13

Gravely 08627500

Bracket

$

$

Not available

14

Gravely 08606000

Bolt, Hex D933 M6 x 18

$

$

Not available

15

Gravely 08631900

Washer, M6

$

$

Not available

16

Gravely 08627600

Bracket

$

$

Not available

17

Gravely 08627900

Lever, Spring

$

$

Not available

18

Gravely 08605800

Washer, M8

$

$

Not available

19

Gravely 00852800

Truss Head Screw, D603 M8 x 20

$

$

Not available

20

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

21

Gravely 08672500

Plate, Lock

$

$

Not available

22

Gravely 00690400

Safety Switch, PTO Position

$37.99

$

Usually ships in 4-12 days

0

23

Gravely 08672800

Screw, Flat Head D85A M3 x 18

$

$

Not available

24

Gravely 03710600

Bolt, Cylindrical D912 M6 x 35

$

$

Not available

25

Gravely 08628200

Screw, D912 M10 x 70

$

$

Not available

26

Gravely 08628400

Screw, D912 M10 x 45

$

$

Not available

27

Gravely 08628500

Screw, Set D913 M10 x 50

$7.49

$

Usually ships in 4-12 days

0

28

Gravely 08628800

Guard, Grass Right Hand

$

$

Not available

29

Gravely 08628900

Guard, Grass Left Hand

$

$

Not available

30

Gravely 08622600

Support, Cable

$

$

Not available

31

Gravely 08604900

Washer, M6

$

$

Not available

32

Gravely 08622900

Screw, D933 Metric 6 x 35

$

$

Not available

33

Gravely 03711600

Nut, Flanged M6

$

$

Not available
