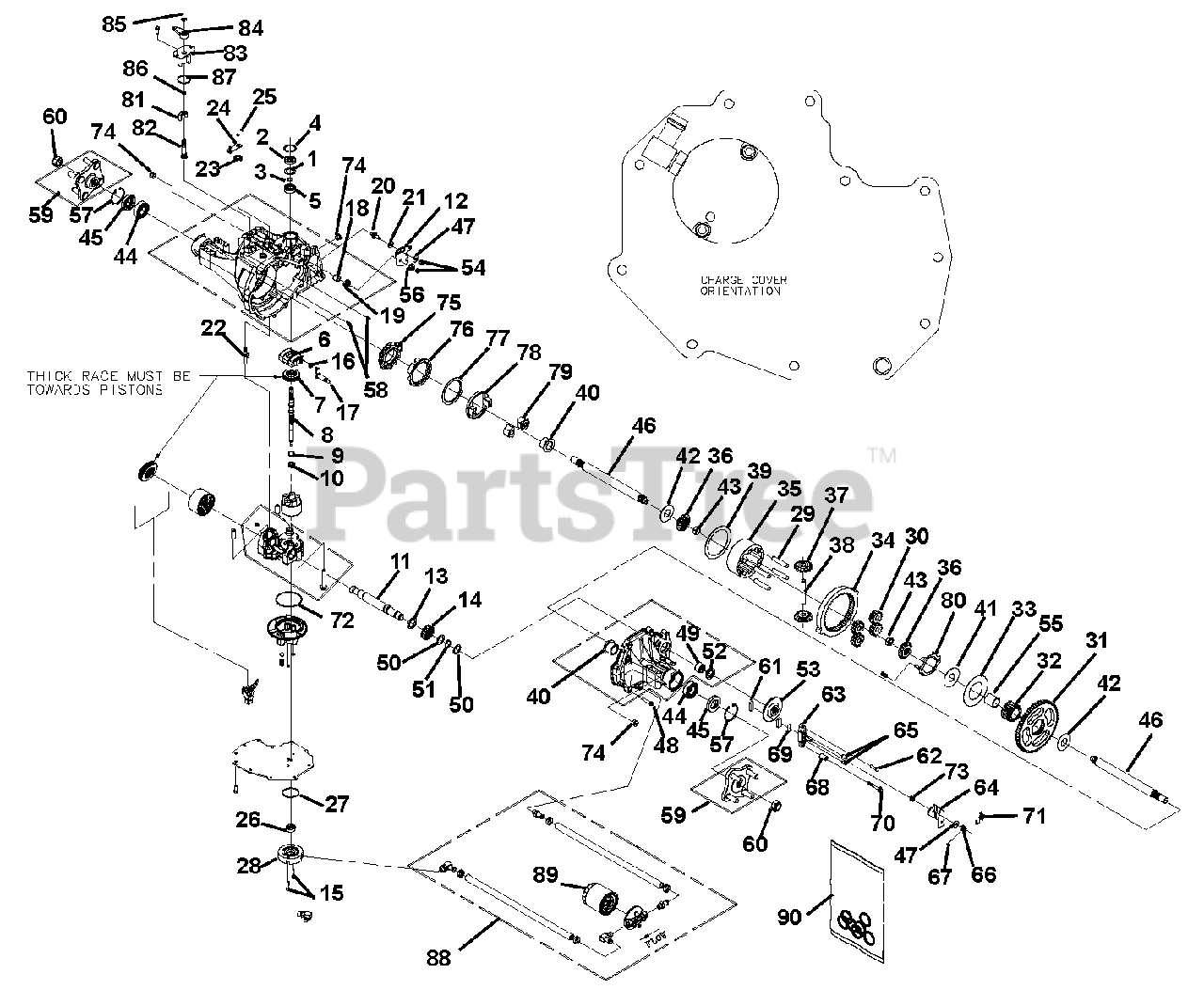

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydrostat Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Hydrostat Parts Diagram

  • Title

1

Gravely 08608700

Spacer, .98 x 1.37 x .04
(Superseded to 21543964)

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 08613400

Seal, Lip 15 x 35 x 7
(Superseded to 21543998)

$5.49

$

Usually ships in 4-12 days

0

3

Gravely 08613300

Ring, Wire Retaining

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 08608800

Ring, Retaining

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 08613200

Bearing, Shaft Ball

$

$

Not available

6

Gravely 08609000

Swashplate, Variable

$

$

Not available

7

Gravely 08609100

Bearing, Thrust 30 x 52 x 13

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 08609200

Shaft, Input (STD Charge)

Note: (STD Charge)

$

$

Not available

9

Gravely 08609400

Washer, Thrust .59 x .79 x .04

$1.99

$

In Stock, only 1 left!

0

10

Gravely 08621500

Spring, Block

$1.99

$

In Stock, Qty 6

0

11

Gravely 08609600

Shaft, Motor

$

$

Not available

12

Gravely 08609700

Arm, Control

$

$

Not available

13

Gravely 08609900

Spacer, 1.03 x 1.38 x .184

$

$

Not available

14

Gravely 08610500

Gear, 16T Pinion

$

$

Not available

15

Gravely 08610600

Screw, Gap M6 x 1 x 25
(Superseded to 21543777)

$

$

Not available

16

Gravely 08610700

Guide, Slot

$

$

Not available

17

Gravely 08610800

Arm, Trunnion Tapered Square

$57.99

$

Usually ships in 4-12 days

0

18

Gravely 08610900

Bearing, Trunnion

$

$

Not available

19

Gravely 08612900

Seal, Lip 12 x 25 x 7
(Superseded to 21543997)

$

$

Not available

20

Gravely 08611000

Stud, Short 5/16-24

$

$

Not available

21

Gravely 08613000

Pack, Friction

$

$

Not available

22

Gravely 08609800

Actuator, Bypass

$

$

Not available

23

Gravely 08613800

Seal, Lip

$4.49

$

Usually ships in 4-12 days

0

24

Gravely 08611100

Arm, Bypass

$

$

Not available

25

Gravely 08611400

Ring, Retaining

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 08611500

Gerotor

$27.99

$

Usually ships in 4-12 days

0

27

Gravely 08611600

O-Ring, 1.862 x 2.068
(Superseded to 21543991)

$

$

Not available

28

Gravely 08611700

Housing, External Charge Pump

$

$

Not available

29

Gravely 08611800

Pin, Carrier

$

$

Not available

30

Gravely 08611900

Gear, 15T Planet

$

$

Not available

31

Gravely 08612000

Gear, 57T Spur

$

$

Not available

32

Gravely 08612100

Gear, 21T Sun

$

$

Not available

33

Gravely 08612200

Washer, Thrust 2.32 x 4.10 x .05

$

$

Not available

34

Gravely 08609500

Gear, 51T Ring

$

$

Not available

35

Gravely 08612300

Carrier, Planetary

$

$

Not available

36

Gravely 08612400

Gear, 14T Miter (Splined)

Note: (Splined)

$

$

Not available

37

Gravely 08612500

Gear, 14T Miter (Unsplined)

Note: (Unsplined)

$

$

Not available

38

Gravely 08612600

Shaft, Differential

$

$

Not available

39

Gravely 08612700

Washer, Thrust 3.46 x 4.39 x .05

$

$

Not available

40

Gravely 08612800

Bearing, Flange 1.0 x 1.376 x .99

$

$

Not available

41

Gravely 08613100

Washer, 1.008 x 2.60 x .038

$

$

Not available

42

Gravely 08613600

Washer, 1.0 x 2.25 x .04

$

$

Not available

43

Gravely 08613900

Nut, Hex 5/8-18 with Patch

$

$

Not available

44

Gravely 08614000

Bearing, Ball 25.4 x 52 x 15

$23.99

$

In Stock, only 2 left!

0

45

Gravely 08614300

Seal, Lip 1.0 x 2.049 x .375

$14.99

$

In Stock, Qty 8

0

46

Gravely 08614400

Shaft, Axle 1.0 x 12.40 (30 O Splined)

Note: (30 O Splined)

$

$

Not available

47

Gravely 08611200

Washer, .34 x .88 x .06

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 08614800

Screw, Torx Head 5/16-18 x 1.5

$

$

Not available

49

Gravely 08615000

Bearing, Needle .875 x 1.125 x .75

$

$

Not available

50

Gravely 08615100

Washer, Flat .88 x 1.25 x .04

$

$

Not available

51

Gravely 08620400

Ring, Retaining

$

$

Not available

52

Gravely 08620500

Seal, Lip .875 x 1.375 x .250

$

$

Not available

53

Gravely 08615700

Disk, Brake

$30.99

$

Usually ships in 4-12 days

0

54

Gravely 08615800

Nut, Hex Lock 5/16-24 w/Nylon Insert

$

$

Not available

55

Gravely 08620700

Bushing, Sleeve 1.0 x 1.3 x 1.34

$

$

Not available

56

Gravely 08616400

Spacer, Trunnion

$

$

Not available

57

Gravely 08616500

Ring, Retaining

$9.49

$

Usually ships in 4-12 days

0

58

Gravely 08617000

Pint Standard Headless
(Superseded to 21543992)

$

$

Not available

59

Gravely 08621000

Kit, Hub Assembly

$

$

Not available

60

Gravely 08621100

Nut, Hex Lock .75-16

$7.49

$

Usually ships in 4-12 days

0

61

Gravely 08617400

Puckt Brake

$

$

Not available

62

Gravely 08621200

Bolt, Hex Head 1/4-20 x 1 W/Patch

$

$

Not available

63

Gravely 08617800

Assembly, Brake Yoke

$

$

Not available

64

Gravely 08618600

Arm, Brake

$

$

Not available

65

Gravely 08618700

Pint Brake Actuating

$

$

Not available

66

Gravely 08611300

Nut, Castle 5/16-24

$

$

Not available

67

Gravely 08615300

Pin, Cotter 3/32 x .75

$

$

Not available

68

Gravely 08615500

Spacer, .26 x .57 x .87

$

$

Not available

69

Gravely 08618900

Plate, Puck

$

$

Not available

70

Gravely 08619000

Bolt, Hex Head 1/4-20 x 2 W/Patch

$

$

Not available

71

Gravely 08619100

Spring, Brake Arm BIAS

$

$

Not available

72

Gravely 08619500

O-Ring, 2.987 x 3.09

$

$

Not available

73

Gravely 08615900

Spring, CAMP. Brake Anti-Drag

$

$

Not available

74

Gravely 08613700

Plug, Steel (with Seal)

Note: (with Seal)

$6.99

$

Usually ships in 4-12 days

0

75

Gravely 08617300

Cam, Stationary

$

$

Not available

76

Gravely 08617200

Cam, Rotating

$

$

Not available

77

Gravely 08619800

Washer, Thrust 2.78 x 3.60 x .036

$

$

Not available

78

Gravely 08617700

Plate, Load

$

$

Not available

79

Gravely 08621600

Dog, Engagement

$

$

Not available

80

Gravely 08621700

Plate, Guide

$

$

Not available

81

Gravely 08622100

Cam, Differential Lock Actuating

$

$

Not available

82

Gravely 08622200

Shaft, Differential Lock Actuating

$

$

Not available

83

Gravely 08619300

Sleeve, Differential Lock Actuating

$53.99

$

Usually ships in 4-12 days

0

84

Gravely 08622400

Arm, Differential Lock Actuating

$

$

Not available

85

Gravely 08622500

Ring, Retaining

$3.99

$

In Stock, Qty 11

0

86

Gravely 08622700

O-Ring, .364 x .504

$

$

Not available

87

Gravely 08622800

O-Ring, 1.489 x 1.629

$

$

Not available

88

Gravely 08623000

KIit, Filter Assembly

$

$

Not available

89

Gravely 08690600

Filter

$23.99

$

Usually ships in 4-12 days

0

90

Gravely 08623100

Kit, Seal and O-Ring

$

$

Not available
