985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O Drive Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

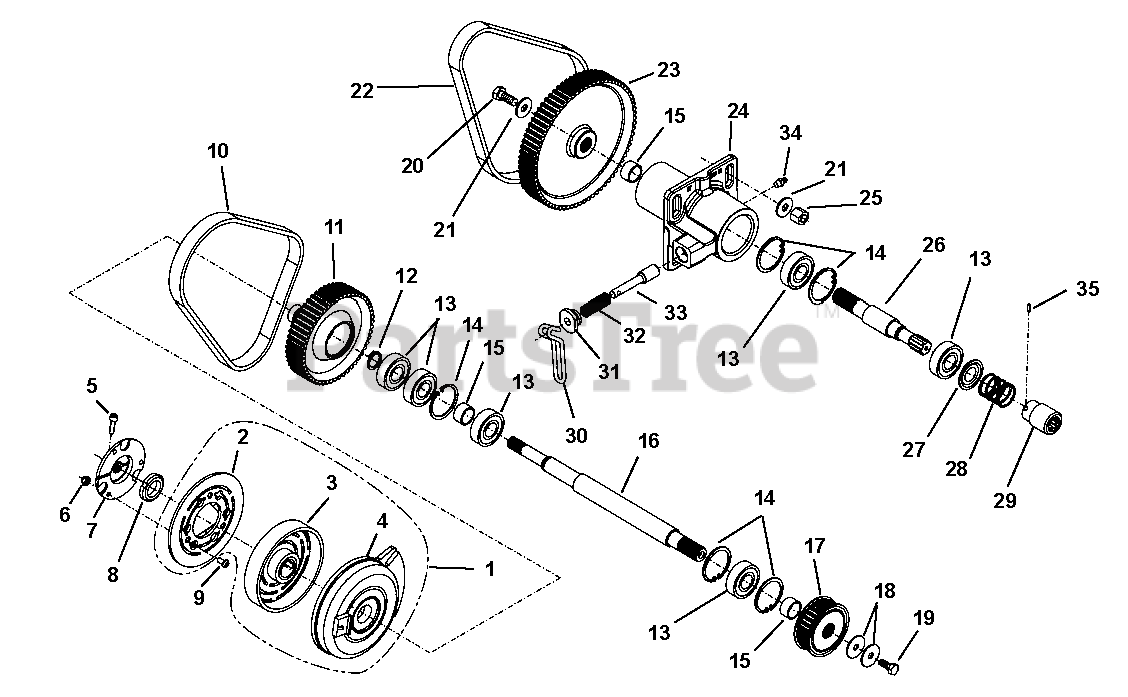

P.T.O Drive Parts Diagram

  • Title

1

Gravely 03710100

Clutch, Magnet Positive (contains items 2, 3 and 4)

Note: (contains items 2, 3 and 4)

$488.99

$

Usually ships in 4-12 days

0

2

Gravely 03710300

Plate, Ancher

$

$

Not available

3

Gravely 08614100

Rotor
(Superseded to 08617900)

$840.99

$

Usually ships in 4-12 days

0

4

Gravely 03746700

Clutch Bellhousing

$

$

Not available

5

Gravely 08618100

Screw, M6 x 20

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

7

Gravely 03710400

Driver

$

$

Not available

8

Gravely 08614900

Nut, Groove M24 x 1.5

$32.99

$

Usually ships in 4-12 days

0

9

Gravely 08672200

Screw, M6 x 12 ISO7380

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 08619400

Belt, Toothed

$180.99

$

Usually ships in 4-12 days

0

11

Gravely 08623300

Pulley

$571.99

$

Usually ships in 4-12 days

0

12

Gravely 08615200

Circlip, D471 20 1.75

$

$

Not available

13

Gravely 08623400

Ball Bearing, 6204 2RS /20 x 47 x 14

$50.99

$

Usually ships in 4-12 days

0

14

Gravely 08617100

Circlip, D472 47 1.75

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 08615400

Collar

$

$

Not available

16

Gravely 08623500

Shaft, Clutch

$

$

Not available

17

Gravely 08623600

Pulley

$

$

Not available

18

Gravely 08619200

Washer, Friction

$

$

Not available

19

Gravely 08604300

Bolt, Hex D933 M8 x 20

$

$

Not available

20

Gravely 08623700

Bolt, Hex D933 M10 x 25
(Superseded to 08683900)

$

$

Not available

21

Gravely 08616000

Washer, M10

$

$

Not available

22

Gravely 08623800

Belt, Toothed L=800 B=20
(Superseded to 08694400)

$121.99

$

Usually ships in 4-12 days

0

23

Gravely 08623900

Pulley

$

$

Not available

24

Gravely 08619600

Case, P.T.O.

$

$

Not available

25

Gravely 08624000

Nut, Hex D6330B M10 x 25

$

$

Not available

26

Gravely 03710700

Shaft, Clutch

$

$

Not available

27

Gravely 08617600

Ring, Nilos N545 6204 ZAV

$

$

Not available

28

Gravely 08624200

Spring, Pressure 2.25/29.75 x 47.90
(Superseded to 08694300)

$

$

Not available

29

Gravely 03710800

Muff

$

$

Not available

30

Gravely 08616600

Lock

$

$

Not available

31

Gravely 08616900

Bolt, CF 3851

$

$

Not available

32

Gravely 08616700

Spring, Pressure

$

$

Not available

33

Gravely 08616800

Bolt, Lock

$

$

Not available

34

Gravely 08620000

Lubricator

$

$

Not available

35

Gravely 03710900

Pin, Parallel

$

$

Not available
