985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Electrical Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

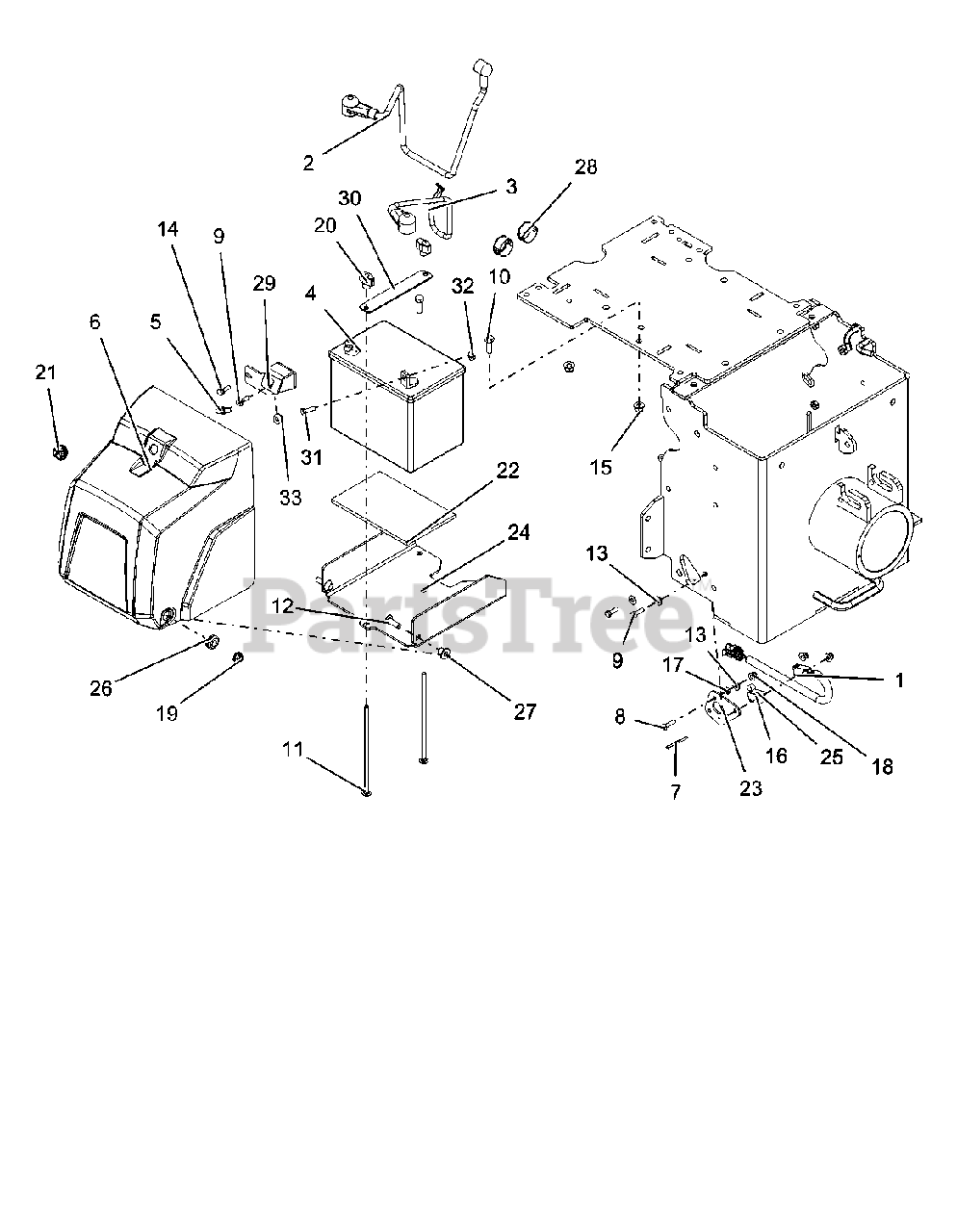

Electrical Parts Diagram

  • Title

1

Gravely 09129500

ASM, SWITCH W/LEADS&CONNECTOR

$74.99

$

Usually ships in 4-12 days

0

2

Gravely 03821010

CABLE, POSITIVE BATTERY 16.75"

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 03821020

CABLE, NEGATIVE BATTERY 22.5"

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, Qty 6

0

6

Gravely 04959800

COVER, BATTERY

$74.99

$

Usually ships in 4-12 days

0

7

Gravely 05901608

SCR, SKH M3-.5 X 25 GR12.9 ROHS

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 05901609

BLT, HEX M6-1X25 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 05901630

BLT, HEX M8-1.25X25 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06200229

BLT-RDHDSQSHNK .25-20X7.00 G2 ZC120

$4.49

$

In Stock, Qty 7

0

12

Gravely 06200231

BLT-RDHDSQSHNK .31-18X1.75 GR5 ZX120

$1.49

$

In Stock, Qty 13

0

13

Gravely 06401001

WSHR-FL-STL .196X.500X.06 ZC120

$0.99

$

In Stock, Qty 13

0

14

Gravely 06401009

WSHR-LK .25X.062 REG YWZC

$0.99

$

In Stock, Qty 16

0

15

Gravely 06500725

NUT, LK-NYL-FLG M8-1.25 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06500727

NUT, LK-NYL-FLG M3-0.5 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06500728

NUT, HEX-JAM M6-1.0 GR8.8 ZC120

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 06500729

NUT, LK-NYL-FLG M6-1.0 GR8.8 ZC120

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06500809

NUT, LK-NYL-FLG .31-18 GR5 ZC120

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 07500407

GROMMET, 10mm BOLLHOFF

$5.99

$

In Stock, Qty 12

0

22

Gravely 08803400

PAD, BATTERY

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 09115753

PLATE, BASE-RED

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 09117953

SUPPORT, BATTERY-RED

$35.99

$

Usually ships in 4-12 days

0

25

Gravely 09118600

SPRG, SWITCH

$28.99

$

Usually ships in 4-12 days

0

26

Gravely 09121800

GROMMET, COVER MNT

$6.99

$

Usually ships in 4-12 days

0

27

Gravely 09121900

BSHG, FRONT COVER

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 09123200

BSHG, PANEL SNAP-IN 1.25" BLK

$

$

Not available

29

Gravely 09129753

BRKT, BATTERY COVER-RED

$24.99

$

Usually ships in 4-12 days

0

30

Gravely 09130751

BAR, BATTERY STRAP-BLACK

$7.49

$

Usually ships in 4-12 days

0

31

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06500807

NUT, FLG-SPNLK M6-1.0 GR8.8 ZC120

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 06500809

NUT, LK-NYL-FLG .31-18 GR5 ZC120

$1.49

$

In Stock, Qty 20+

0
