987102 (GT 448) - Gravely 48" Garden Tractor, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Deck & Rollers Parts Diagram

48" Garden Tractor, 16hp Briggs & Stratton

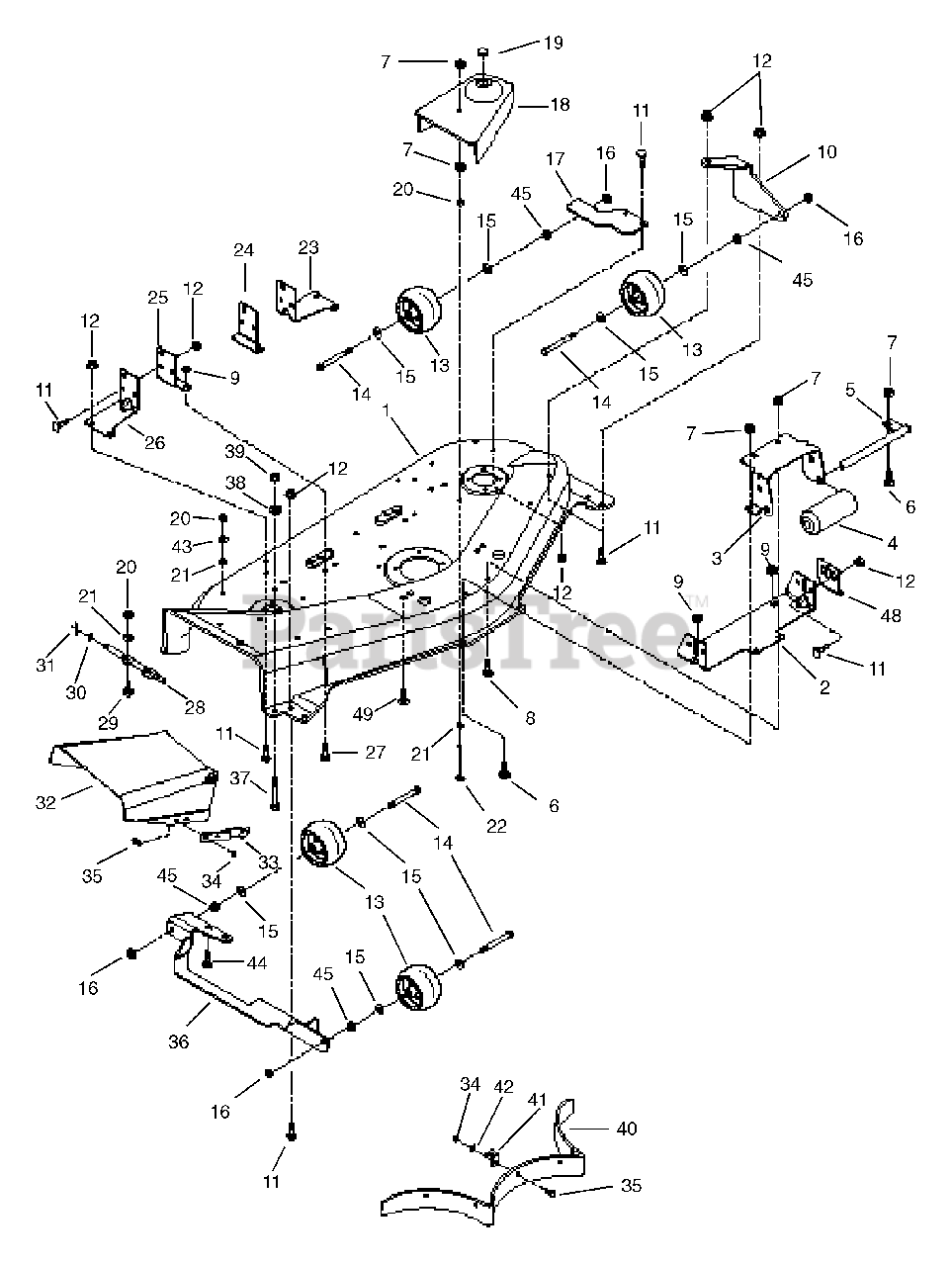

48" Mower Deck & Rollers Parts Diagram

  • Title

1

Gravely 53607300

Mower Pan Head w/Decals 48"
(Superseded to 51503400)

$

$

Not available

2

Gravely 01521200

Front Hanger
(Superseded to 01521251)

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 03435100

Bracket-Roller
(Superseded to 03435151)

$81.99

$

Usually ships in 4-12 days

0

4

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

In Stock, only 2 left!

0

5

Gravely 039601

Roller Shaft
(Superseded to 03435200)

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

7

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06212200

Bolt-Round Head Square Neck .312-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 01533800

Bracket-Left Front
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

12

Gravely 06530400

Nut-Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

13

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 17

0

14

Gravely 05962300

Bolt-Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

15

Gravely 06443300

Washer-Flat-Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

16

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 01534153

Bracket-Left Rear

$

$

Not available

18

Gravely 03096253

Cover-Right Hand Belt

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 03095953

Belt Cover Left Hand 48"

$

$

Not available

19

Gravely 039746

Button Plug 1.0
(Superseded to 07504000)

$3.49

$

In Stock, only 1 left!

0

20

Gravely 06529200

Nut-Hex .312-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

21

Gravely 06307400

Washer-Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

22

Gravely 039745

Bolt-Round Head Square Neck .31-18 x 3.25
(Superseded to 06200411)

$5.99

$

In Stock, only 2 left!

0

23

Gravely 01535853

Left Hand Rear Hanger
(Superseded to 01535851)

$38.99

$

Usually ships in 4-12 days

0

24

Gravely 01521600

Left Hand Rear Hanger Support
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 01521400

Right Hand Rear Hanger Support
(Superseded to 01521451)

$46.99

$

Usually ships in 4-12 days

0

26

Gravely 01535753

Right Hand Rear Hanger
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

27

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 03405800

Hinge Pin

$46.99

$

Usually ships in 4-12 days

0

29

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 19

0

30

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

32

Gravely 03034953

Chute Extension

$

$

Not available

33

Gravely 00318553

Flat Spring

$

$

Not available

34

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06214300

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 01533953

Mount-Roller
(Superseded to 01533900)

$

$

Not available

37

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 06306500

Washer-Lock .375 x .115
(Superseded to 06300120)

$3.49

$

In Stock, Qty 13

0

39

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 4 left!

0

40

Gravely 03434253

Baffle
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Gravely 03434353

Baffle Tab

$

$

Not available

42

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

43

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

44

Gravely 06216100

Bolt-Round Head Square Neck .312-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

45

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

46

Gravely 03667253

Guard-Foot-Left Hand

$

$

Not available

47

Gravely 03667353

Guard-Foot-Right Hand

$

$

Not available

48

Gravely 03581753

Mower Adjustment Tab
(Superseded to 03581700)

$

$

Not available

49

Gravely 06215600

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0
