987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Engine And Drive Shaft Parts Diagram

60" Garden Tractor, 22hp Kohler

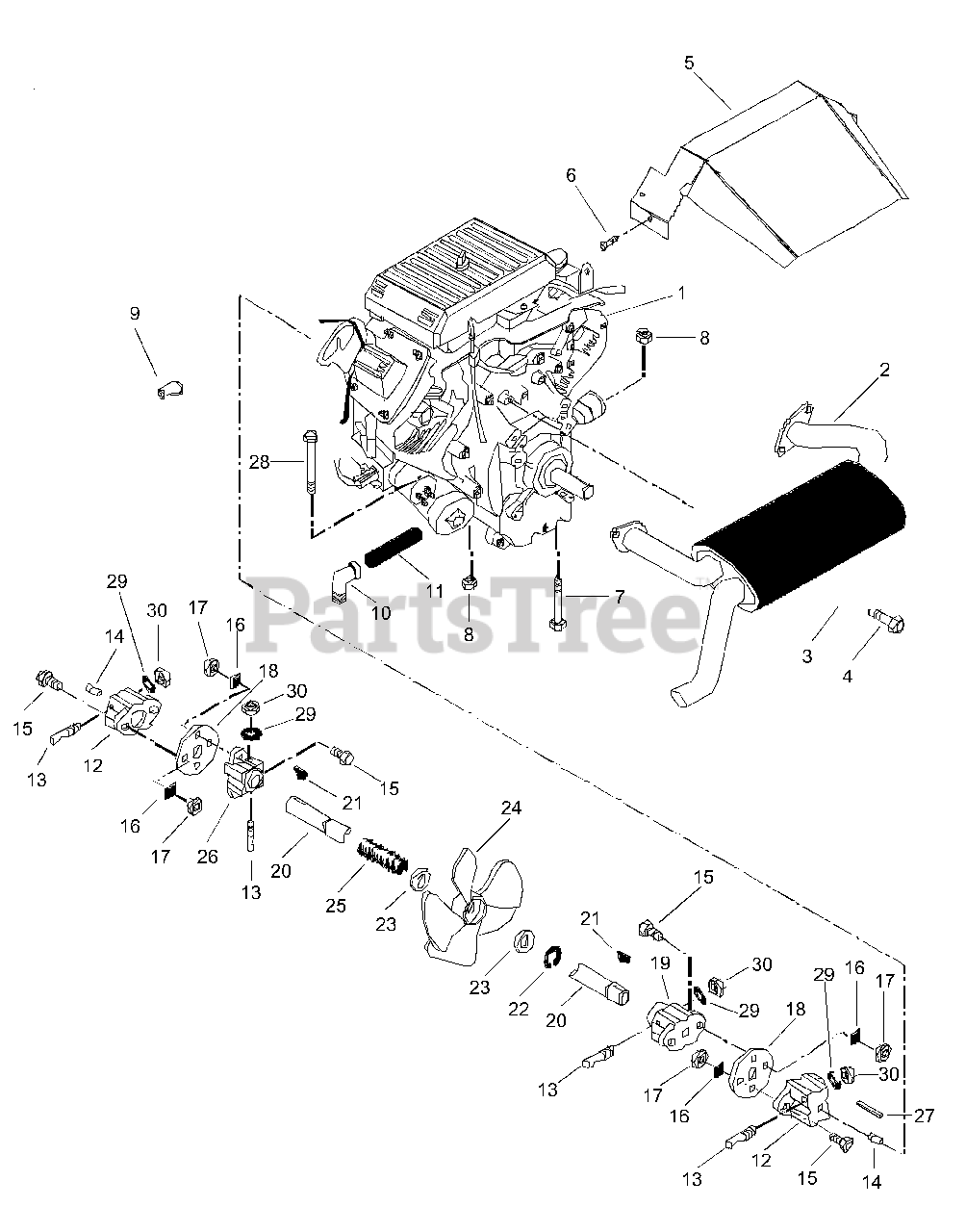

Engine And Drive Shaft Parts Diagram

  • Title

1

Gravely 08248900

Kohler 22 HP Engine CH22 PS-66540

$

$

Not available

2

Gravely 03091100

Muffler-Nelson

$

$

Not available

3

Gravely 06310700

Washer-Locking .438 x .133

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 05958700

Bolt-Hex .44-14 x 1.00 Grade 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

5

Gravely 03091700

Heat Shield

$

$

Not available

6

Gravely 050996

Bolt-Hex M6 x 1.0 12MM
(Superseded to 05969800)

$1.99

$

In Stock, Qty 5

0

7

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 2 left!

0

8

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 033847

Boot-Insulator
(Superseded to 03384700)

$

$

Not available

10

Gravely 07023500

Elbow .375-18

$

$

Not available

11

Gravely 02749600

Nipple

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 03089100

Drive Hub

$168.99

$

Usually ships in 4-12 days

0

13

Gravely 039454

Lock Stud
(Superseded to 03013900)

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 039104

Pin-Groove .313 x .75
(Superseded to 05806600)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 05947800

Bolt-Hex .31-18 x .88 Grade 5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

17

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 039102

Spacer Coupling
(Superseded to 03014000)

$51.99

$

In Stock, only 1 left!

0

19

Gravely 044870

Drive Hub - Twin Shaft
(Superseded to 03082300)

$

$

Not available

20

Gravely 03092700

Shaft, Drive

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 106751

Key-Woodruff .188 x .75
(Superseded to 06600300)

$1.49

$

In Stock, Qty 7

0

22

Gravely 05701200

Ring-Retaining-External .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

23

Gravely 036407

Washer-Hardened-Thrust .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

24

Gravely 039110

Fan
(Superseded to 03199500)

$36.99

$

In Stock, only 1 left!

0

25

Gravely 039111

Spring-Compression .120 x .75 x 2.50
(Superseded to 08321400)

$

$

Not available

26

Gravely 039107

Drive Shaft Hub
(Superseded to 03014900)

$

$

Not available

27

Gravely 06606100

Key-Square .188 x .75 x .188

$3.99

$

In Stock, only 1 left!

0

28

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

29

Gravely 06308800

Washer-Locking .375
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

30

Gravely 06529400

Nut-Locking .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0
