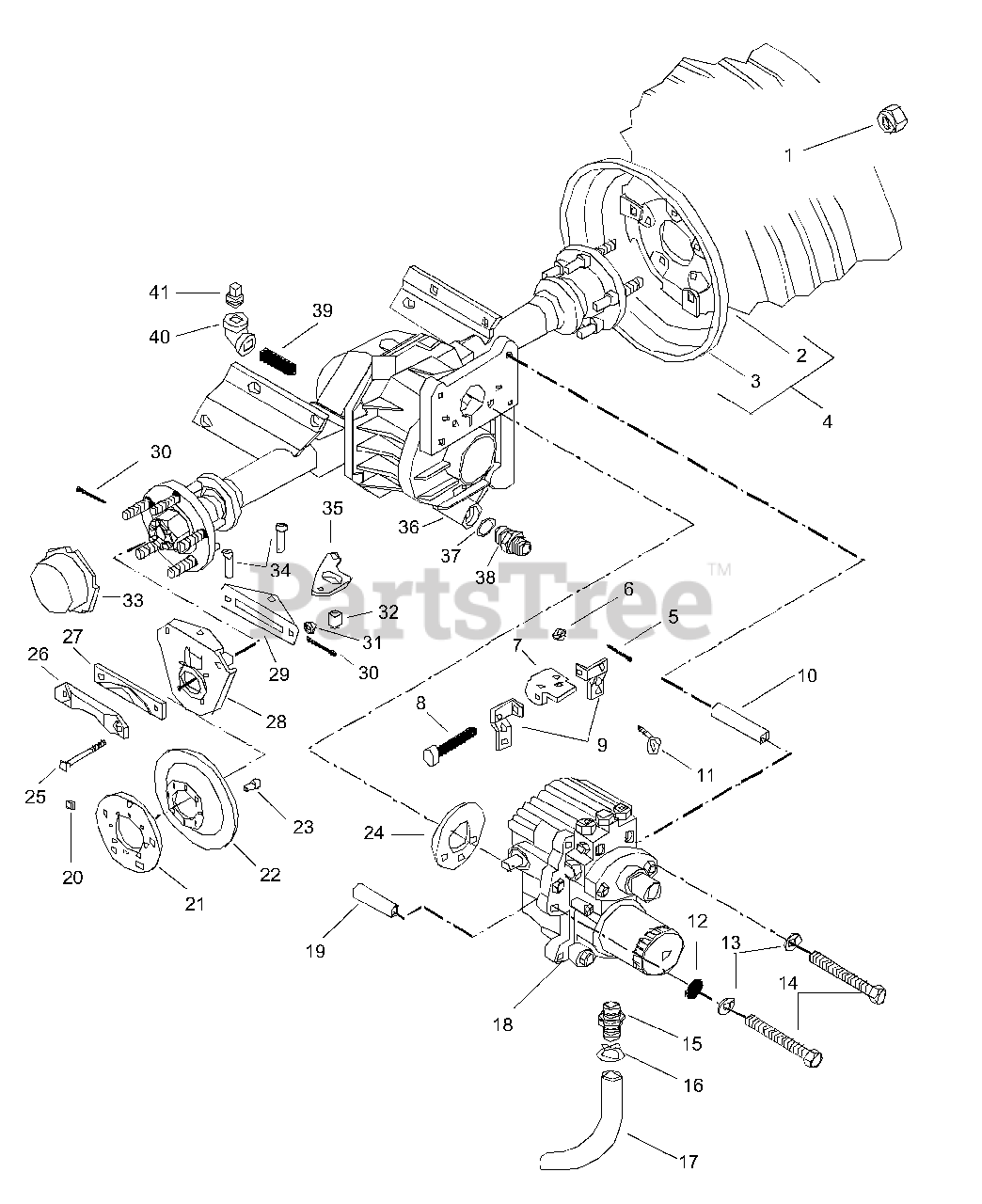

987104 (GT 600) - Gravely 60" Garden Tractor, 22hp Kohler (SN: 000101 & Above) Hydrostatic Drive And Brakes Parts Diagram

60" Garden Tractor, 22hp Kohler

Hydrostatic Drive And Brakes Parts Diagram

  • Title

1

Gravely 039687

Nut-Lug .437-20
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 039688

Tire 23 x 10.50-12
(Superseded to 07111900)

$

$

Not available

3

Gravely 039689

Wheel
(Superseded to 07110600)

$

$

Not available

4

Gravely 039690

Tire/Wheel Assembly 10.50 x 23 Rear
(Superseded to 07115400)

$

$

Not available

5

Gravely 06707400

Pin-Cotter .09 x .50

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

7

Gravely 039503

Cam
(Superseded to 03157700)

$

$

Not available

8

Gravely 03106900

Clevis Pin .306/.311 x 2 1/2
(Superseded to 06810900)

$

$

Not available

9

Gravely 039691

Support
(Superseded to 03157000)

$

$

Not available

10

Gravely 039692

Spacer .379 x .625 x 3.480
(Superseded to 03148700)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 041162

Cable Support
(Superseded to 03007900)

$28.99

$

Usually ships in 4-12 days

0

12

Gravely 06444300

Washer-Flat-Steel .390 x .750 x .125

$7.99

$

In Stock, Qty 9

0

13

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

14

Gravely 05957700

Bolt-Hex .38-1 x 5.00 Grade 5
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 045226

Fitting-Adapter 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 039462

Hose Clamp #15 .906/.968
(Superseded to 03006500)

$

$

Not available

17

Gravely 039478

Hose .62 x .91 x 8.00
(Superseded to 03006400)

$27.99

$

Usually ships in 4-12 days

0

18

Gravely 03083500

Transmission Assembly

$

$

Not available

19

Gravely 039694

Spacer .379 x .625 x 3.220
(Superseded to 03041400)

$

$

Not available

20

Gravely 039395

Grommet .125 x .375
(Superseded to 07505500)

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 039465

Carrier
(Superseded to 03007000)

$

$

Not available

22

Gravely 039466

Disc
(Superseded to 03007100)

$

$

Not available

23

Gravely 07411600

Screw-Tapping .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

24

Gravely 039499

Gasket
(Superseded to 03148000)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06222400

Bolt-Round Head Square Neck .38-16 x 3.50 Grade 5
(Superseded to 06200302)

$9.49

$

In Stock, Qty 5

0

26

Gravely 039464

Caliper Plate
(Superseded to 03006900)

$

$

Not available

27

Gravely 039463

Friction Plate
(Superseded to 03006800)

$

$

Not available

28

Gravely 039695

Caliper Mounting Plate
(Superseded to 03006700)

$25.99

$

Usually ships in 4-12 days

0

29

Gravely 039468

Pressure Plate
(Superseded to 03007500)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

31

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 039697

Roller
(Superseded to 03007300)

$

$

Not available

33

Gravely 039515

Rear Hub Cap
(Superseded to 07508800)

$15.99

$

Usually ships in 4-12 days

0

34

Gravely 039696

Clevis Pin .368/.373 x 1 5/8
(Superseded to 03007400)

$

$

Not available

35

Gravely 039467

Brake Arm
(Superseded to 03007200)

$

$

Not available

36

Gravely 041157

Rear Axle & Supports
(Superseded to 03078400)

$

$

Not available

37

Gravely 041159

O-Ring .924 x 1.156 x .116
(Superseded to 05612200)

$

$

Not available

38

Gravely 041156

Connector
(Superseded to 03076100)

$

$

Not available

39

Gravely 03087300

Pipe Nipple

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 039700

Elbow 1/2 x 90
(Superseded to 03003800)

$

$

Not available

41

Gravely 039701

Pipe Plug
(Superseded to 00113700)

$

$

Not available
