988012 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Kohler

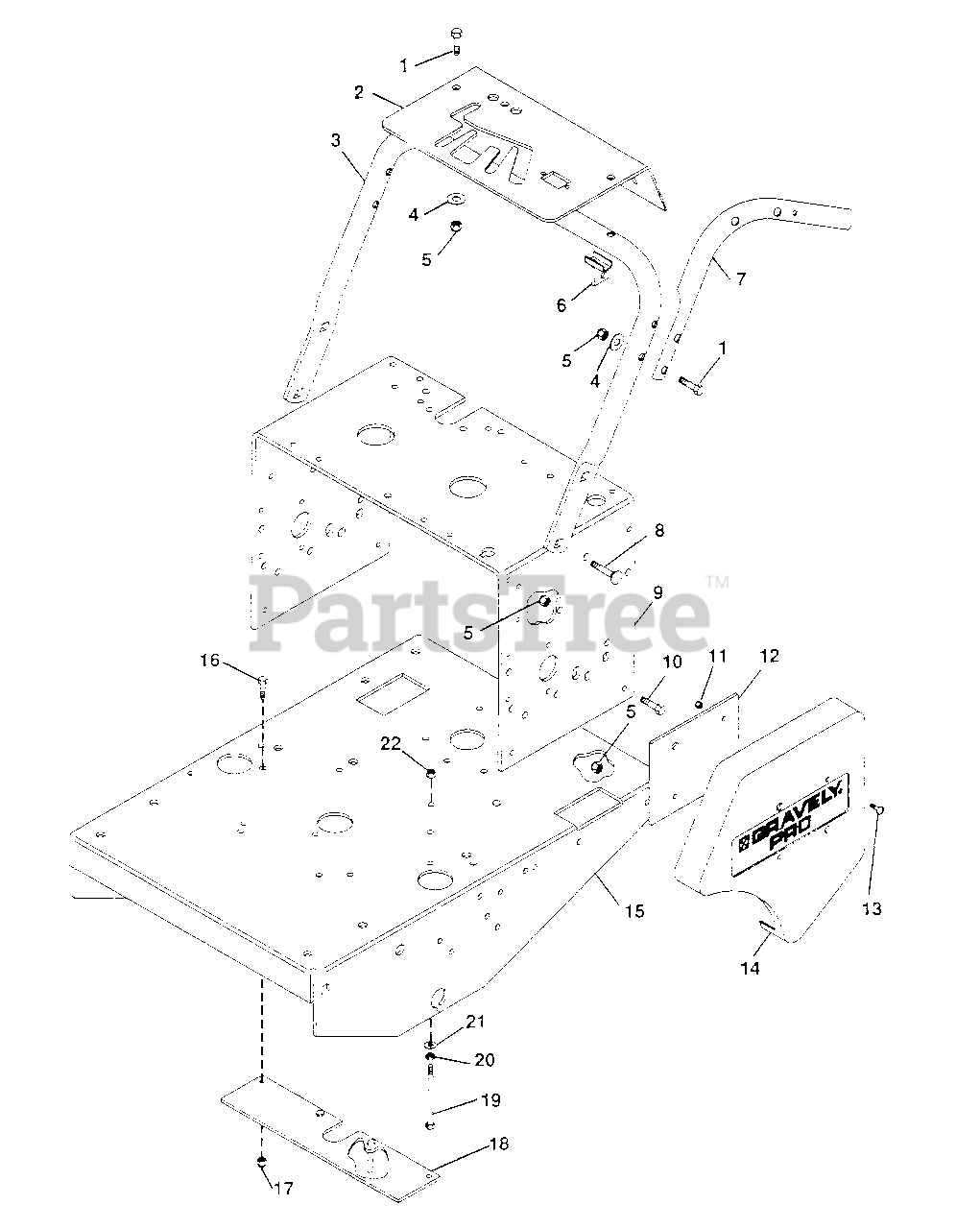

FRAME Parts Diagram

  • Title

1

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

2

Gravely 049289

PANEL, SILK SCREEN
(Superseded to 08835400)

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 049032

TUBE, HANDLEBAR MOUNTING
(Superseded to 08868500)

$

$

Not available

4

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

6

Gravely 049272

WELDMENT, PTO LEVER MOUNTING
(Superseded to 08834500)

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 049008

HANDLEBAR, L.H.
(Superseded to 08869300)

$

$

Not available

7

Gravely 049009

HANDLEBAR, R.H.
(Superseded to 08869400)

$

$

Not available

8

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

9

Gravely 049031

SUPPORT, HANDLEBAR
(Superseded to 08832100)

$

$

Not available

10

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

12

Gravely 049340

BRACKET, BELT GUARD L.H.
(Superseded to 08836000)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 160541

SCREW, MACH. 1/4-20 PHD
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

14

Gravely 049710

GUARD, BELT R.H.
(Superseded to 08868100)

$

$

Not available

15

Gravely 049030

FRAME, PRO
(Superseded to 08846500)

$

$

Not available

16

Gravely 180077

BOLT, EX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

17

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 050777

WELDMENT, BELT GUARD
(Superseded to 08841500)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 191163

BOLT, HEX 3/8-16X4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

21

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
