988072 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Kohler

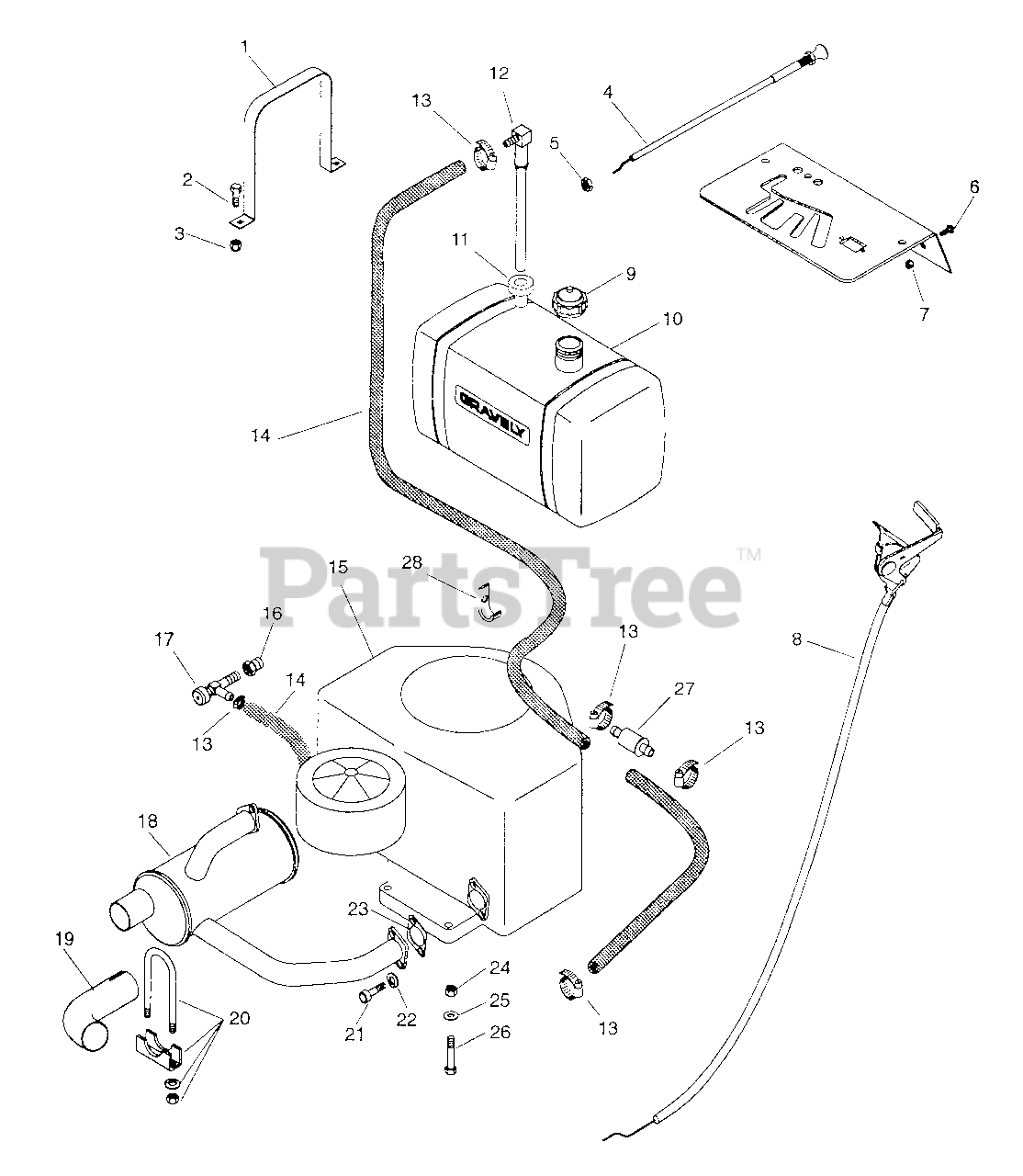

Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

  • Title

1

Gravely 08835900

Strap, Fuel Tank

$90.99

$

In Stock, only 1 left!

0

2

Gravely 05932000

Bolt-Hex .25-20 x .63

$1.99

$

In Stock, only 1 left!

0

3

Gravely 06506600

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06531000)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 06924800

Control, Choke

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 06936100

Cable, Choke

Note: (Model 072)

$

$

Not available

5

Gravely 06518800

Nut-Jam .375-24
(Superseded to 06534700)

$2.49

$

In Stock, Qty 5

0

6

Gravely 06113300

Screw-Machine 10-32 x .50

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06502800

Nut-Locking 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 06925700

Assembly Throttle Control Cable
(Superseded to 06941000)

Note: (Model 063)

$65.99

$

Usually ships in 4-12 days

0

8

Gravely 06925800

Throttle Control Cable Assembly
(Superseded to 06943700)

Note: (Model 07)

$59.99

$

Usually ships in 4-12 days

0

9

Gravely 07533400

Cap, Fuel Tank

$22.99

$

In Stock, only 1 left!

0

10

Gravely 08893300

Tank, Fuel Gravely Pro

$

$

Not available

11

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

12

Gravely 08893600

Fitting, Tank

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 00924300

Gas Line - Bulk 2
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08234600

Engine 18 HP Magnum

Note: (Model 007)

$

$

Not available

15

Gravely 08232600

Engine 16 HP Briggs & Stratton

Note: (Model 063)

$

$

Not available

15

Gravely 08242200

Engine 18 HP Kohler CV, OHV, Electric

Note: (Model 072)

$

$

Not available

16

Gravely 03493100

Adapter, Oil Drain

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 03493200

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

18

Gravely 08824600

Muffler

Note: (Model 007)

$688.99

$

In Stock, only 1 left!

0

18

Gravely 09204700

Muffler

Note: (Model 072); N/S

$335.99

$

Usually ships in 4-12 days

0

18

Gravely 09205200

Heat Shield
(Superseded to 08898000)

Note: (Model 072); N/S

$55.99

$

Usually ships in 4-12 days

0

19

Gravely 08826100

Deflector

Note: (Model 007)

$43.99

$

Usually ships in 4-12 days

0

20

Gravely 06926400

Clamp U 1.75

Note: (Model 07)

$

$

Not available

21

Gravely 05933100

Screw-Cap .31-1 8 x .75
(Superseded to 05901827)

Note: (Model 007)

$2.99

$

In Stock, Qty 11

0

22

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 08824700

Gasket, Exhaust

Note: (Model 007)

$10.99

$

In Stock, only 2 left!

0

24

Gravely 06506200

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

25

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

26

Gravely 05912800

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

27

Gravely 08811700

Filter, Fuel

Note: (Models 007, 063)

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 06909400

J-Clamp

Note: (Models 007, 063)

$3.49

$

In Stock, Qty 11

0
