988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Frame Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

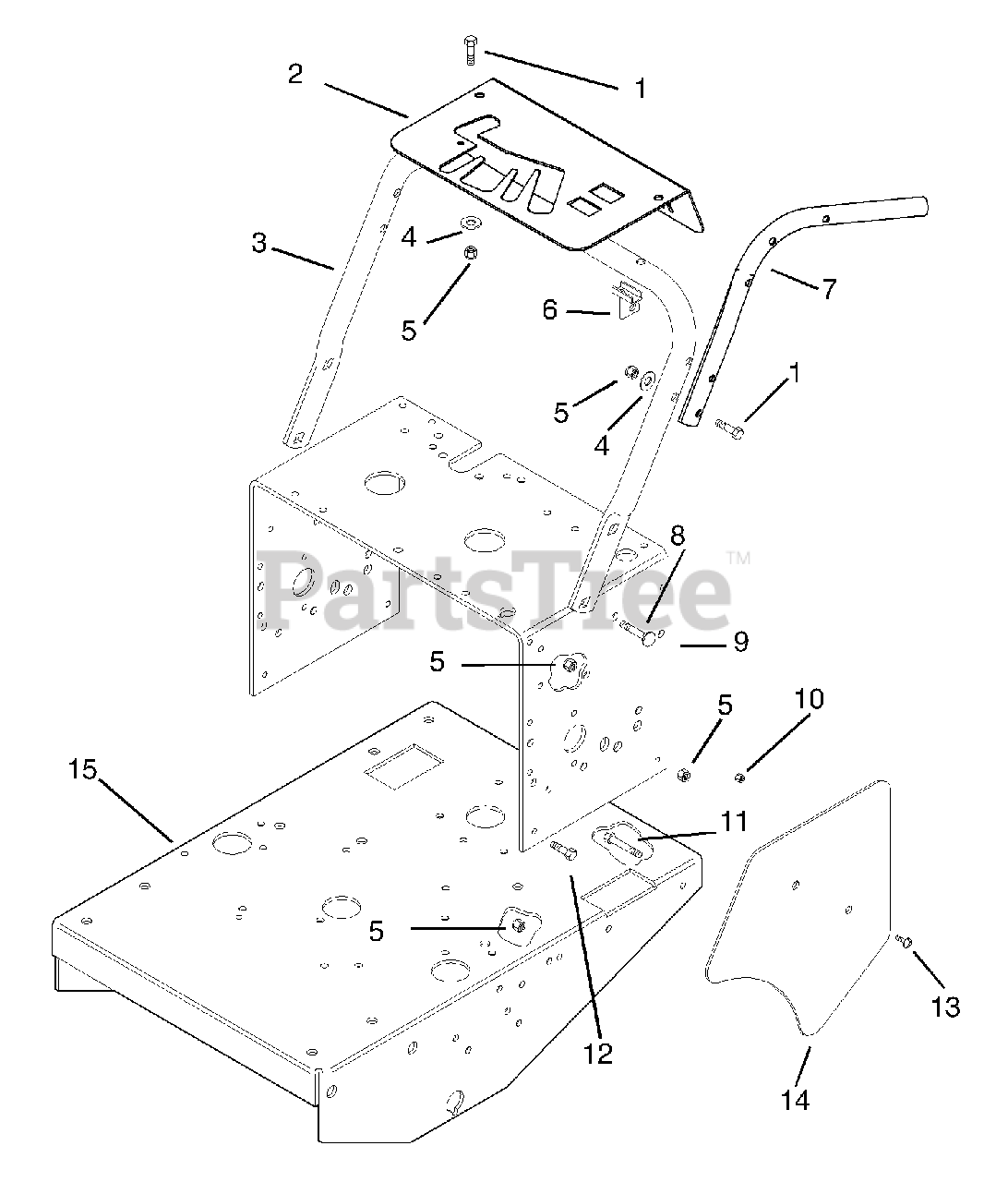

Frame Parts Diagram

  • Title

1

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

2

Gravely 049290

Panel, Instrument
(Superseded to 08835500)

Note: (Model 087)

$

$

Not available

2

Gravely 04905851

Plate, Instrument

Note: (Model 085)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 049032

Tube, Handlebar Mounting
(Superseded to 08868500)

$

$

Not available

4

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529600

Nut-Locking-Nylon .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 049272

Weldment, PTO Lever Mounting
(Superseded to 08834500)

Note: (Model 087)

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 04904851

Handlebar Left Hand

$176.99

$

Usually ships in 4-12 days

0

7

Gravely 04904751

Handlebar Right Hand

$176.99

$

Usually ships in 4-12 days

0

8

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 049031

Support, Handlebar
(Superseded to 08832100)

$

$

Not available

10

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05958000

Bolt-Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

12

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06118000

Screw-Machine .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04901700

Guard, Belt

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 051938

Weldment, Pro Frame
(Superseded to 08866300)

$159.99

$

Usually ships in 4-12 days

0
