988087 - Gravely Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 010000 & Above) Wheels Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 14hp Kawasaki

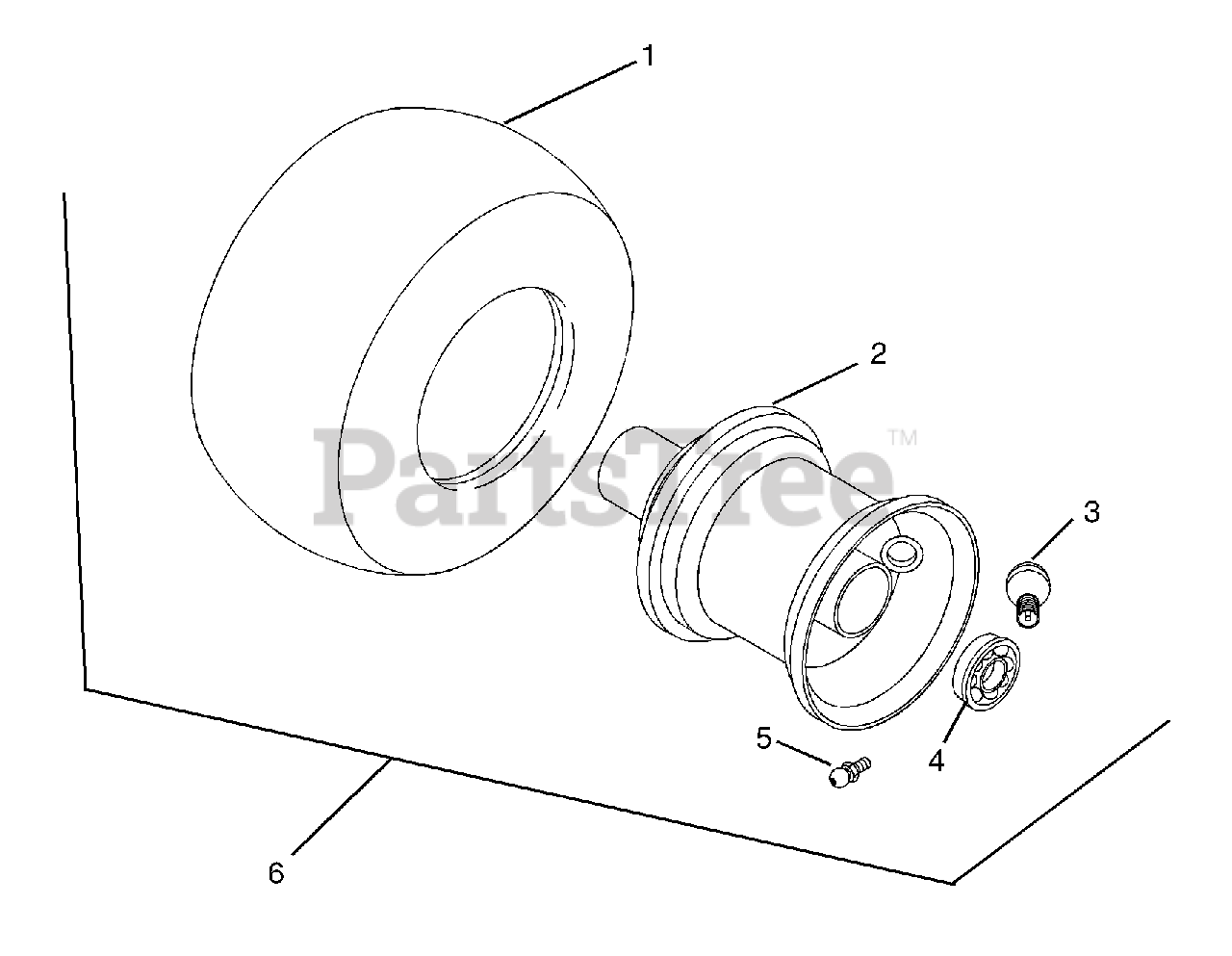

Wheels Parts Diagram

  • Title

1

Gravely 07147400

Tire 13 x 6.50-6
(Superseded to 07100239)

$159.99

$

In Stock, only 1 left!

0

2

Gravely 07147500

Rim-Assembly 4.5 x 3.75

$

$

Not available

3

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 7

0

4

Gravely 050398

Radial Bearing
(Superseded to 05412100)

$

$

Not available

5

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

6

Gravely 07147300

Assembly, Wheel, 13 x 6.50-6
(Superseded to 07100239)

$159.99

$

In Stock, only 1 left!

0
